Bent Rods
Does anyone know if Kohnke Rebabbitting is still in operation? I’m suspecting that I have a few bent rods in a newly done engine and would like to have them all checked. Herm had done excellent work for me in the past and I do know that his son was continuing the business after his passing, but haven’t had any luck reaching him. Also, who else is reputable for rod straightening nowadays?
-
J and M Machine
- Posts: 116
- Joined: Wed Jan 09, 2019 6:46 pm
- First Name: John
- Last Name: Gulbankian
- Location: Massachusetts
- Contact:
Re: Bent Rods
Yes he in business and his name is John
-
Dave Young
Topic author - Posts: 235
- Joined: Sun Feb 24, 2019 9:37 pm
- First Name: David
- Last Name: Young
- * REQUIRED* Type and Year of Model Ts owned: 26 Touring, 26 RPU, 24 Coupe, 26 Speedster, 28 Chandler, 29 Chandler, 29 A
- Location: Mays Landing, Nj
Re: Bent Rods
Thanks guys. John sent me his cell number.
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: Bent Rods
It's not rocket science to make your own mandrel to check them, they can even be realigned in a good 6" bench vice.
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Bent Rods
Dave, since you are sharp enough to be concerned about bent rods, you know how to avoid bending them during piston installation & removal.
I will say, I check every rebabbited rod I get before installing. Around 1/2 from suppliers are out of square/bent.
I have found bent rods in fresh rebuild motors that I had to go thru to correct builders errors.
Trust but verify.
I will say, I check every rebabbited rod I get before installing. Around 1/2 from suppliers are out of square/bent.
I have found bent rods in fresh rebuild motors that I had to go thru to correct builders errors.
Trust but verify.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Bent Rods
I agree with John, even though you pay "good money" for re-Babbitted con. rods, one should verify that they are straight !

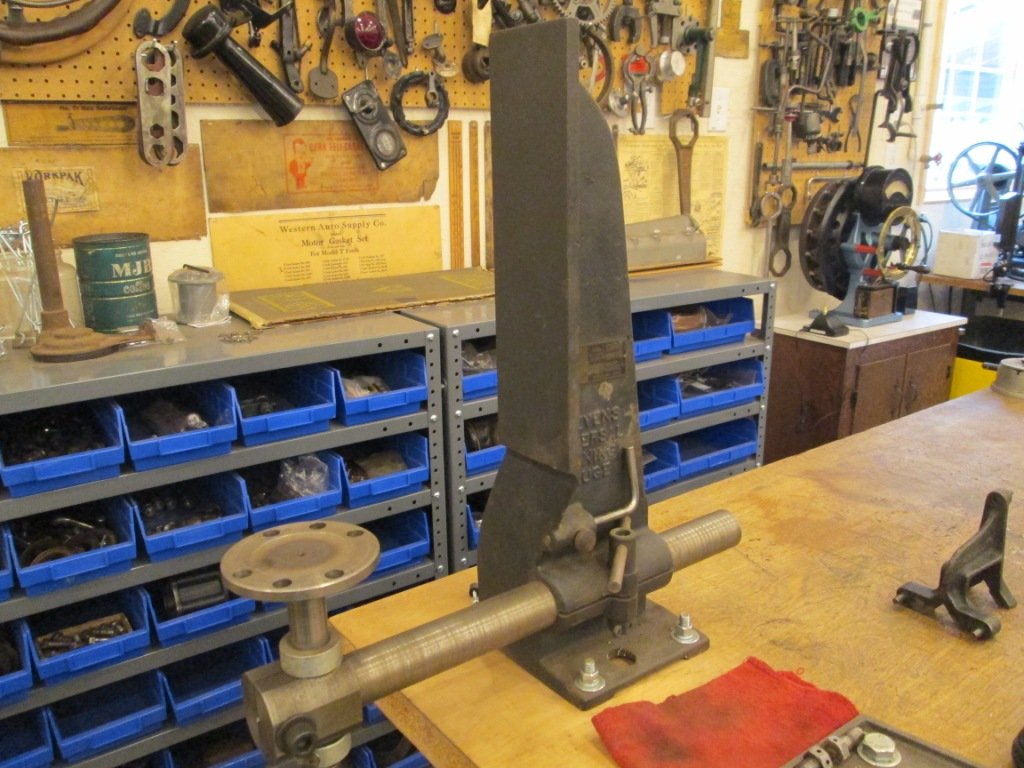

Stevens & KR Wilson both made superior tools for checking rods - I also have a flywheel attachment for setting magnet heights for my Stevens.
Stevens & KR Wilson both made superior tools for checking rods - I also have a flywheel attachment for setting magnet heights for my Stevens.
- Attachments
-
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Bent Rods
Luvin' the flywheel attachment.
I got some building to do.
I got some building to do.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Bent Rods
I took the idea from the Ford Service Manual !
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Bent Rods

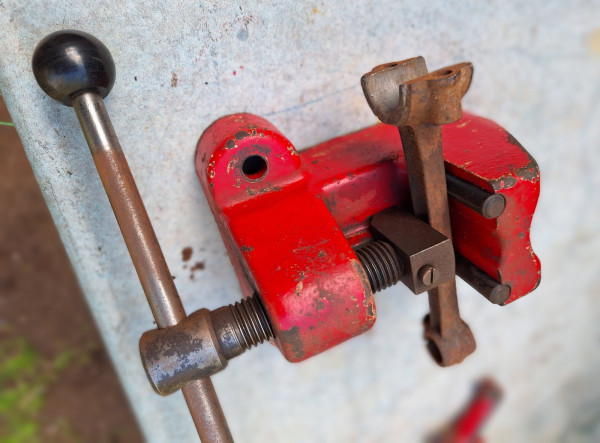

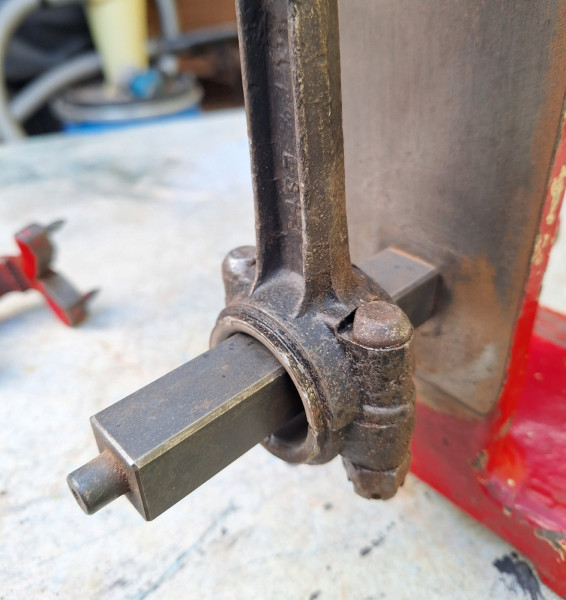

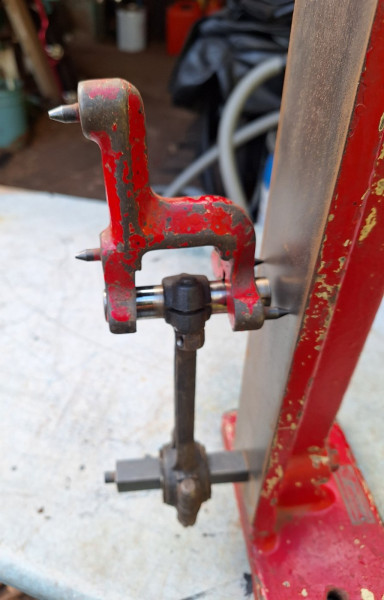

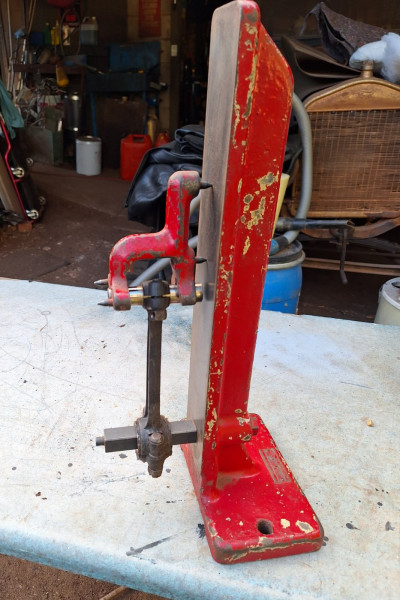

This is my Ausrtalian made set up for rod aligning.
Instead of multiple round mandrels to take multiple sized rods, it comes with just 3 machined square mandrels. These can take rods as small as T up to large diesel truck rods. My local machine shop never had a use for their small one, so it was given to me.
10 years later my cousin found the matching precision vice used to straighten rods.
Allan from down under.
- Attachments
-
-
Dave Young
Topic author - Posts: 235
- Joined: Sun Feb 24, 2019 9:37 pm
- First Name: David
- Last Name: Young
- * REQUIRED* Type and Year of Model Ts owned: 26 Touring, 26 RPU, 24 Coupe, 26 Speedster, 28 Chandler, 29 Chandler, 29 A
- Location: Mays Landing, Nj
Re: Bent Rods
I’d sure like to find one of these fixtures
-
speedytinc
- Posts: 4725
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Bent Rods
The fixtures show up @ swap meets occasionally but, the seals are rarely with them & a hard find.
Simple, functional substitutes can be made from about a 4" notched square plate.
Simple, functional substitutes can be made from about a 4" notched square plate.
