drag link question

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
Post Reply Previous topicNext topic

Topic author
DHort
Posts: 2826
Joined: Sun Jan 06, 2019 1:30 pm
First Name: Dave
Last Name: Hjortnaes
* REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 20 touring
Location: Men Falls, WI

drag link question

Post by DHort » Sun May 18, 2025 11:52 pm

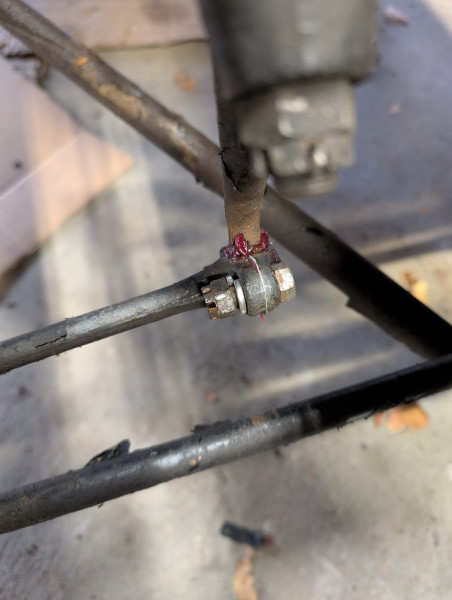

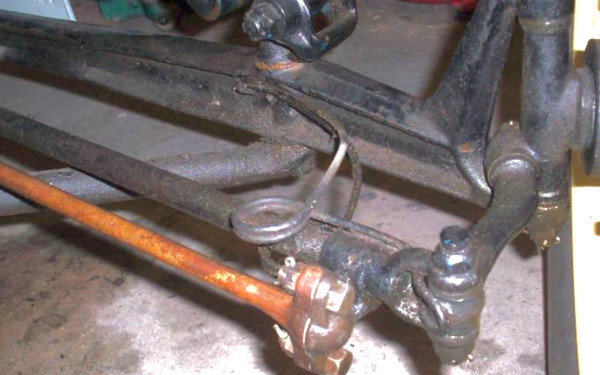

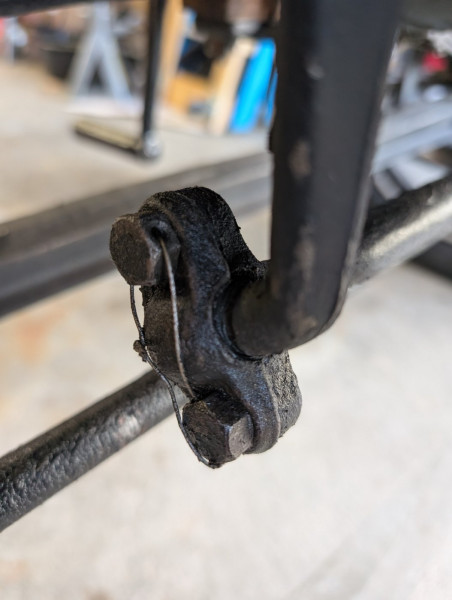

I just noticed that my two T's have different connections at the draglink/pitman arm connection.
Which is correct? Bolts and safety wire, or nut and lock washer?
