Torque tube...what's this?

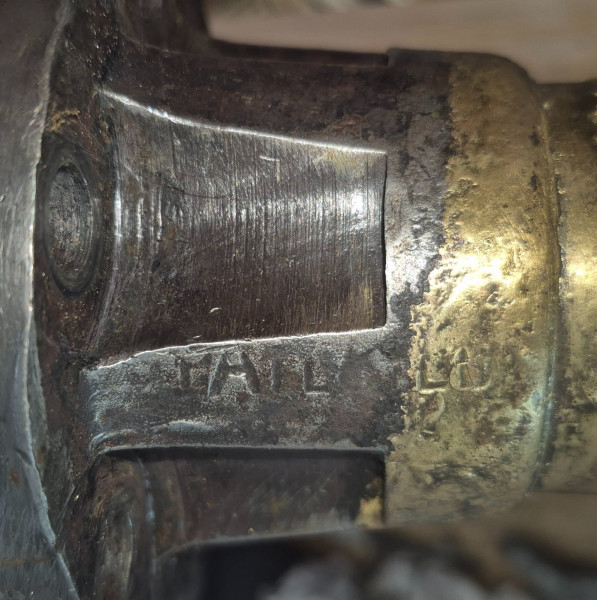

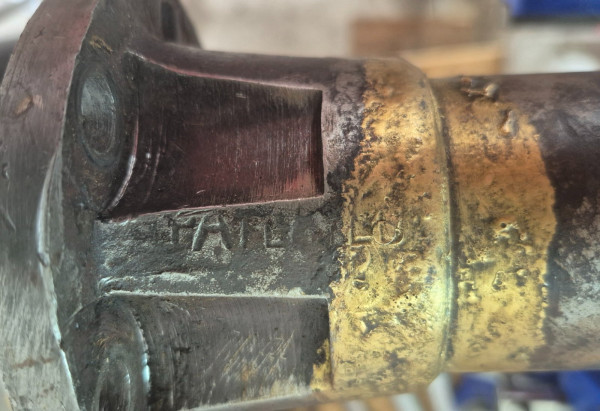

I don't recognize nor can fully make out the stamping on the torque tube flange..... anyone?
Call me anything you want...just so long as it isn't "late for dinner"
-
JTT3
- Posts: 1863
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
Re: Torque tube...what's this?
Patented? Maybe?
-
TXGOAT2
- Posts: 7552
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Torque tube...what's this?
I'll second "PATENTED"...
-
ModelTWoods
- Posts: 1460
- Joined: Tue Jan 08, 2019 10:53 am
- First Name: Terry
- Last Name: Woods
- * REQUIRED* Type and Year of Model Ts owned: 1927 Model T coupe, 1926 4 door sedan
- Location: Cibolo (San Antonio), TX
Re: Torque tube...what's this?
Whatever it is; the tube has been brazed, either to seal a leak or join two pieces from different tubes.
-
TRDxB2
- Posts: 6308
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018

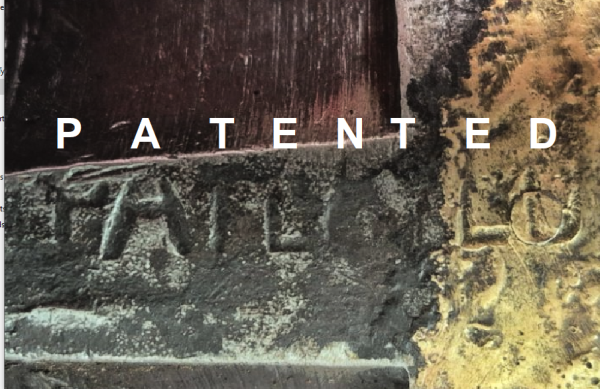

Re: Torque tube...what's this?
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
speedytinc
- Posts: 4797
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Torque tube...what's this?
Since there dont appear to be rivets, which would have been brazed also, must been brazed only. I wouldnt assume it was repaired.
I have seen these early DS tubes cracked @ this joint.
I have seen these early DS tubes cracked @ this joint.
-
Original Smith
- Posts: 3731
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Torque tube...what's this?
Looks very authentic to me.
-
Daisy Mae
Topic author - Posts: 363
- Joined: Mon May 06, 2024 9:32 pm
- First Name: Kurt
- Last Name: Andersson
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring
- Location: Panama City Beach, FL
Re: Torque tube...what's this?
It's an early 2 piece tube
Interesting as to why it would have been stamped Patented.
Thanks...it's obvious now.... Doh!
Interesting as to why it would have been stamped Patented.
Thanks...it's obvious now.... Doh!
Call me anything you want...just so long as it isn't "late for dinner"
-
A Whiteman
- Posts: 1148
- Joined: Sun Jan 06, 2019 3:36 pm
- First Name: Adrian
- Last Name: Whiteman
- * REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
- Location: South Island, New Zealand
Re: Torque tube...what's this?
The stamping goes over the brazing. My 'guess' here is someone with humour did the fix and said 'I will patent that repair
)!
)!
