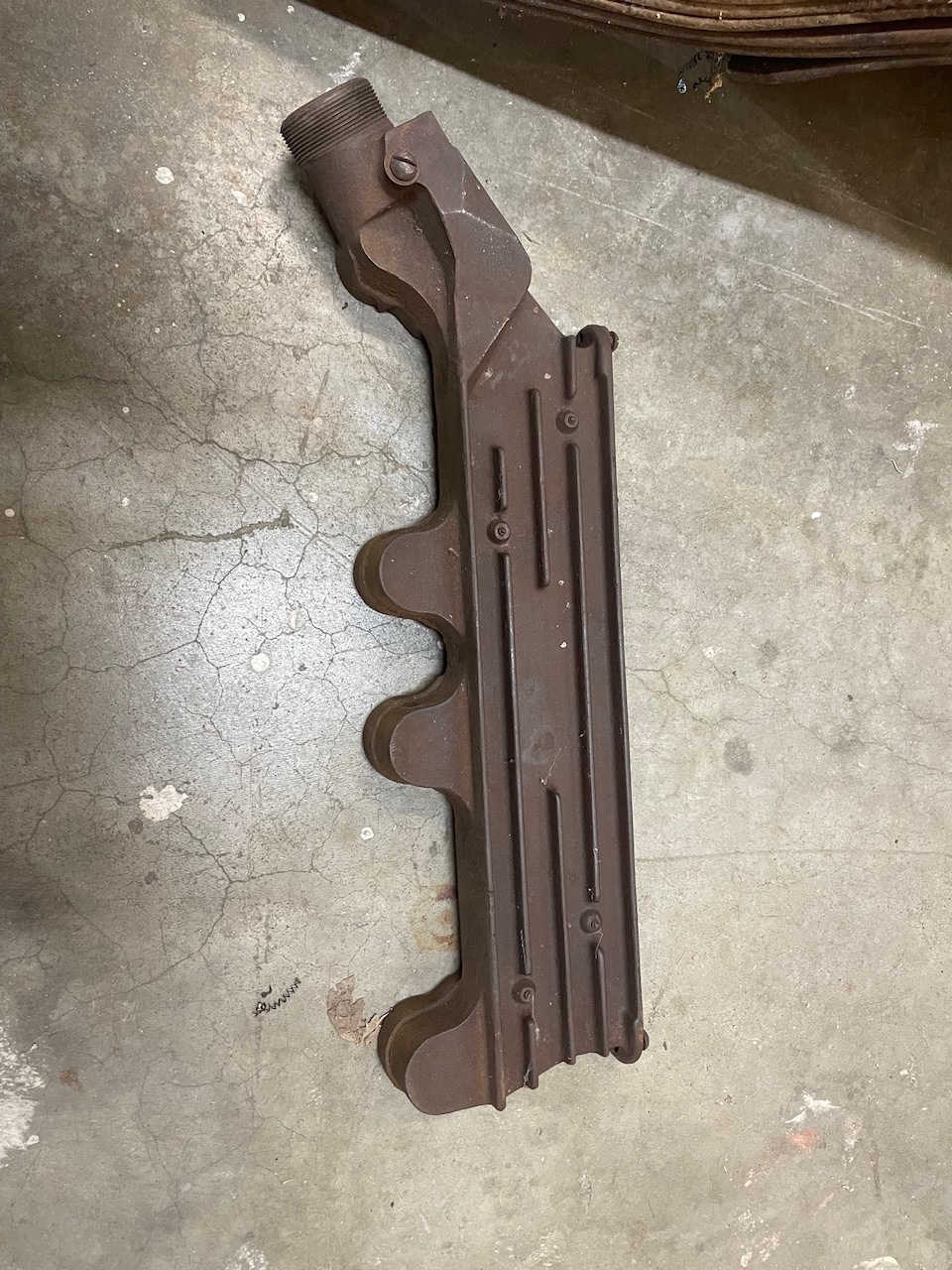

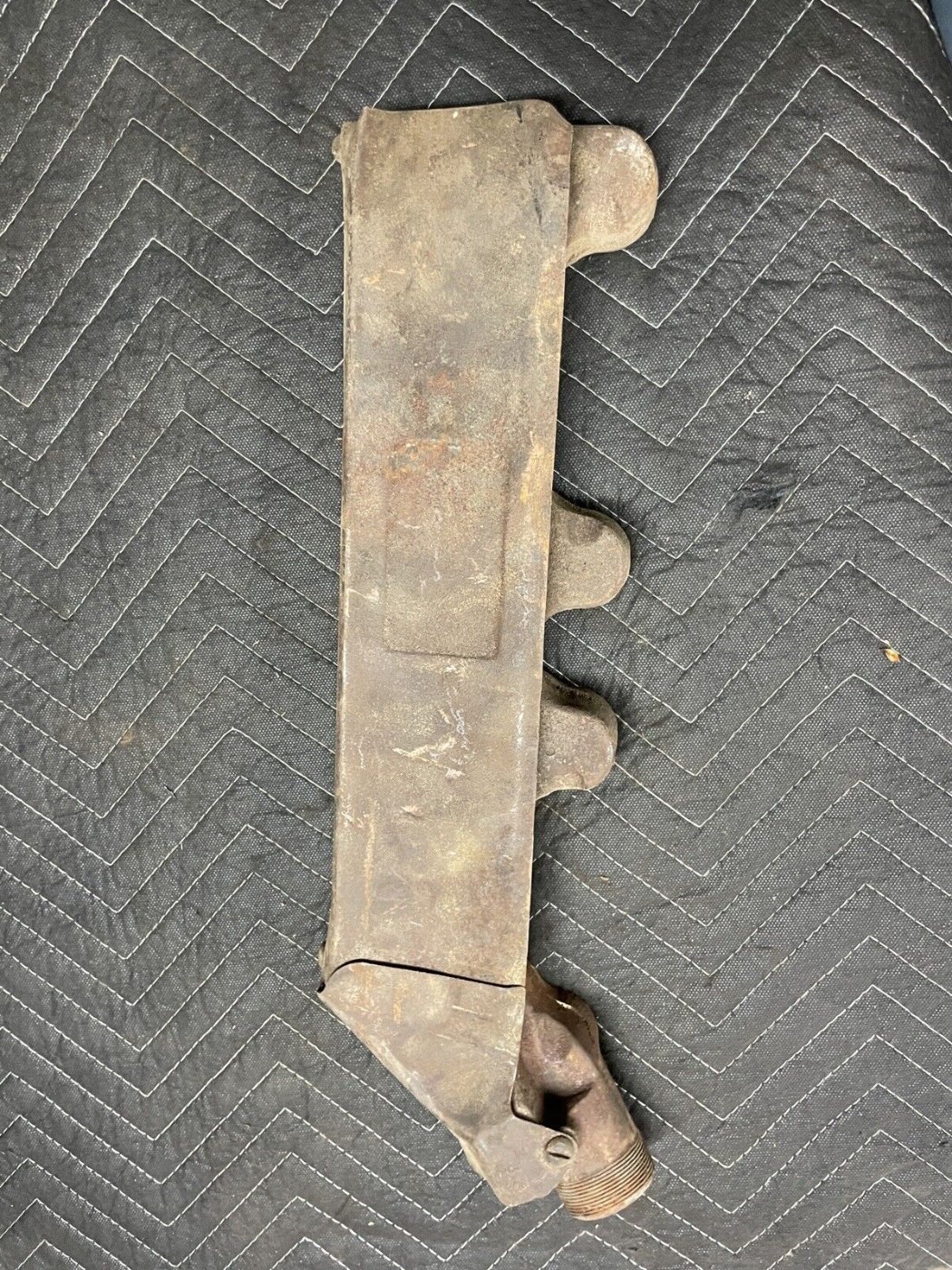

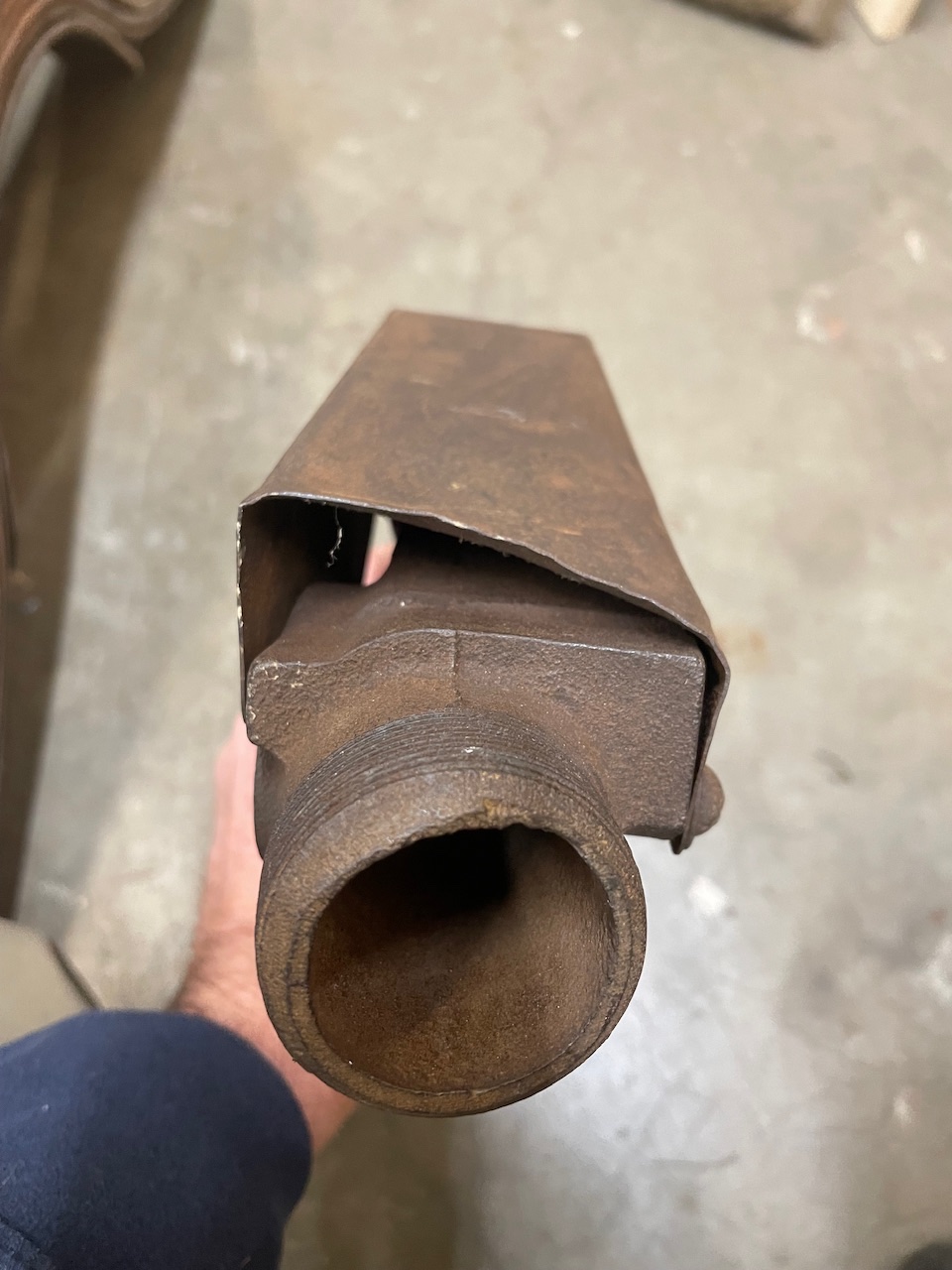

I just bought a really nice manifold heater. It is straight as a die and the exhaust pipe threads are perfect. The screws holding the tins on came right out. It did not come with the parts that go in the floorboard so I have to find or make them. I have looked at different ones in the forum and other places and I don’t see one quite like this. It has a very small outlet that does not seem to be like those others I have seen. I can’t figure out how it would connect to the vent in the floor. Any hints?
I do have the sheet metal cover, just not on in the shot.
Need to make parts for a manifold heater
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Reno Speedster
Topic author - Posts: 633
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
Need to make parts for a manifold heater
- Attachments
-
-
-
speedytinc
- Posts: 5174
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Need to make parts for a manifold heater
Looks like someone added a shield for the F/W. The normal heat pickup covers all those finns.
Keep looking for examples & the design will be come obvious.
Keep looking for examples & the design will be come obvious.
-
RajoRacer
- Posts: 5504
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Need to make parts for a manifold heater
I'll get some photos of mine for you. I also have an extra floor register.
-
TRDxB2
- Posts: 6555
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Need to make parts for a manifold heater

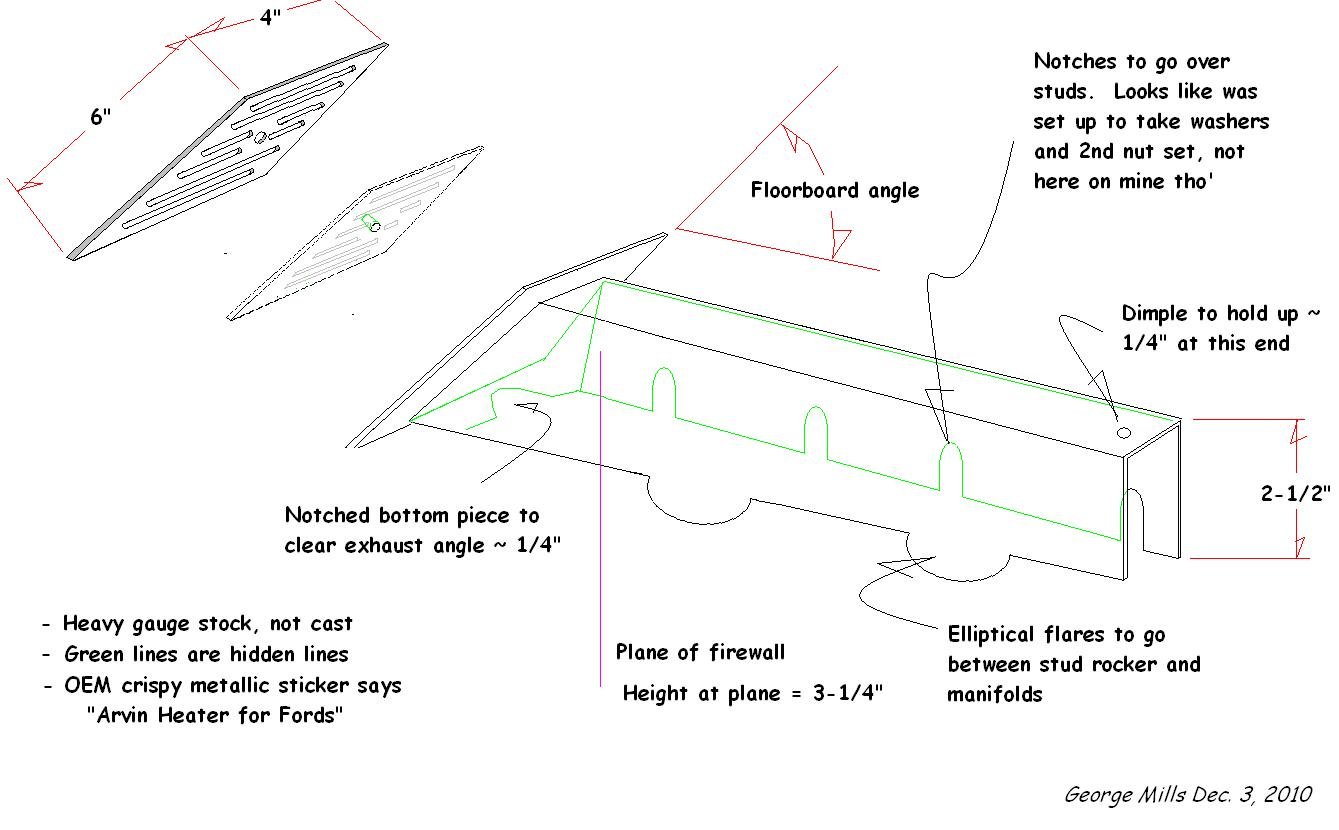

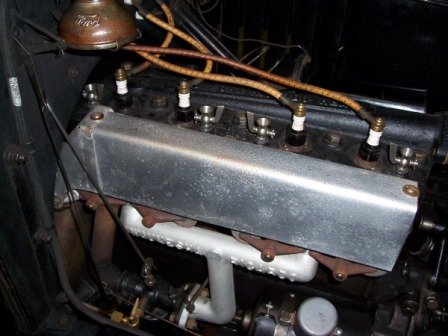

From an old postReno Speedster wrote: ↑Sat Jan 24, 2026 9:15 pmI just bought a really nice manifold heater. It is straight as a die and the exhaust pipe threads are perfect. The screws holding the tins on came right out. It did not come with the parts that go in the floorboard so I have to find or make them. I have looked at different ones in the forum and other places and I don’t see one quite like this. It has a very small outlet that does not seem to be like those others I have seen. I can’t figure out how it would connect to the vent in the floor. Any hints?
I do have the sheet metal cover, just not on in the shot.
- Attachments
-
-
-
- 43237.jpg (41.38 KiB) Viewed 483 times
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Reno Speedster
Topic author - Posts: 633
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
Re: Need to make parts for a manifold heater
I saw the old post and mine is like the top example. I have all the tins, I just took them off to check it out and clean out the wasp nest. But, as I said, it does not match the drawing.
-
RajoRacer
- Posts: 5504
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Need to make parts for a manifold heater

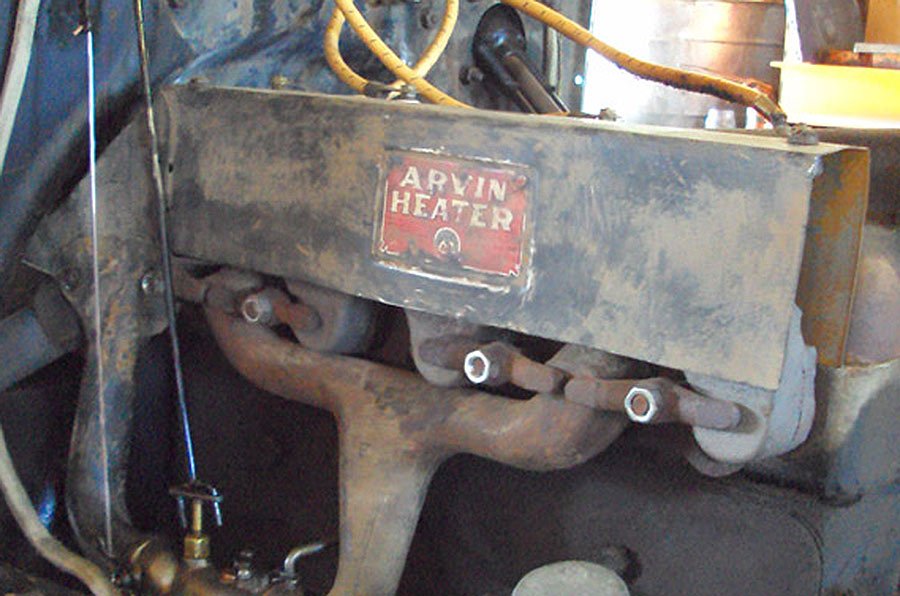

There were several manufacturers of those types of heaters - the silver shroud one is on our'19 Centerdoor - photos coming.
-
DanTreace
- Posts: 4057
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: '23 cutoff pickup, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Need to make parts for a manifold heater

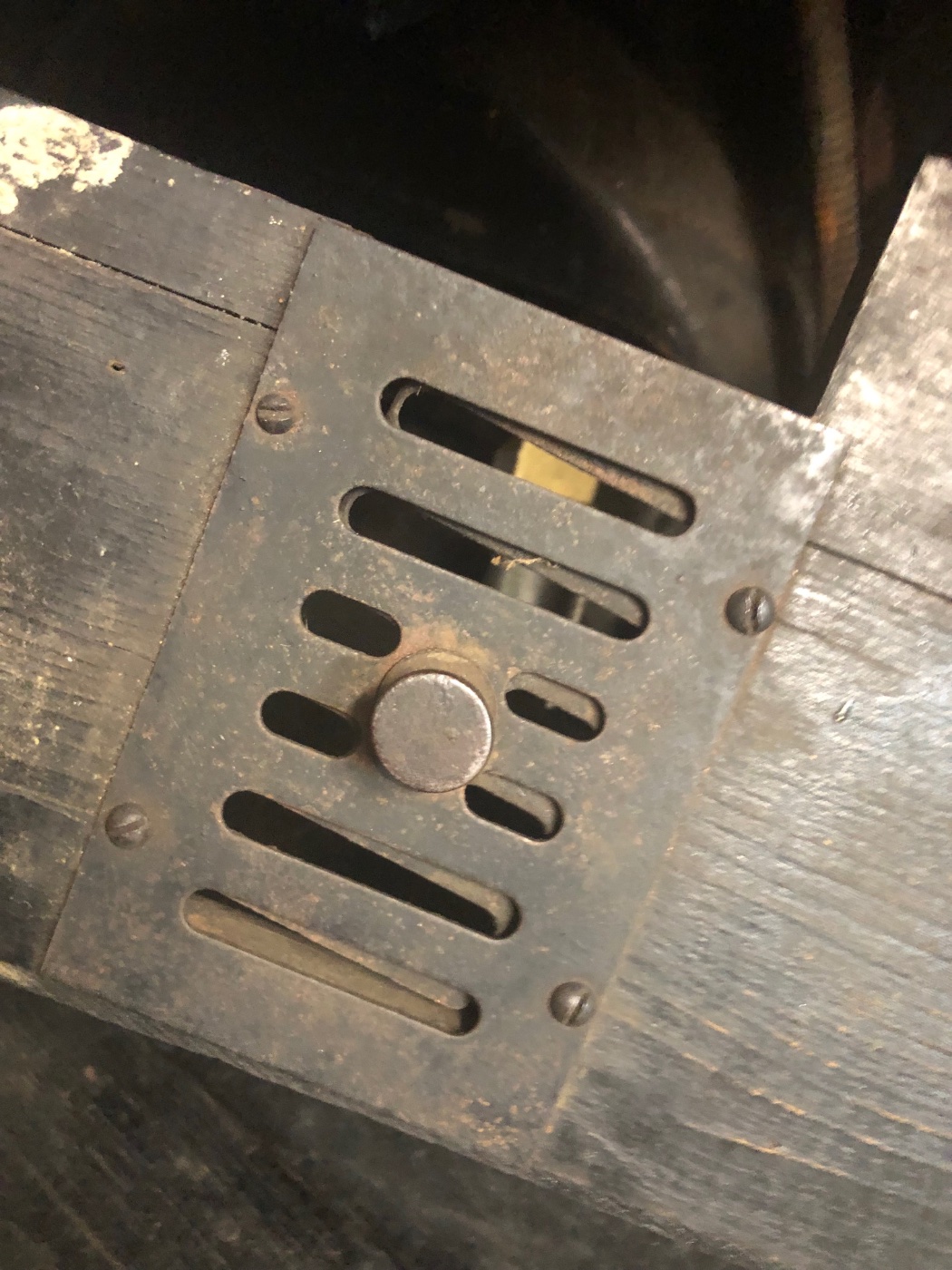

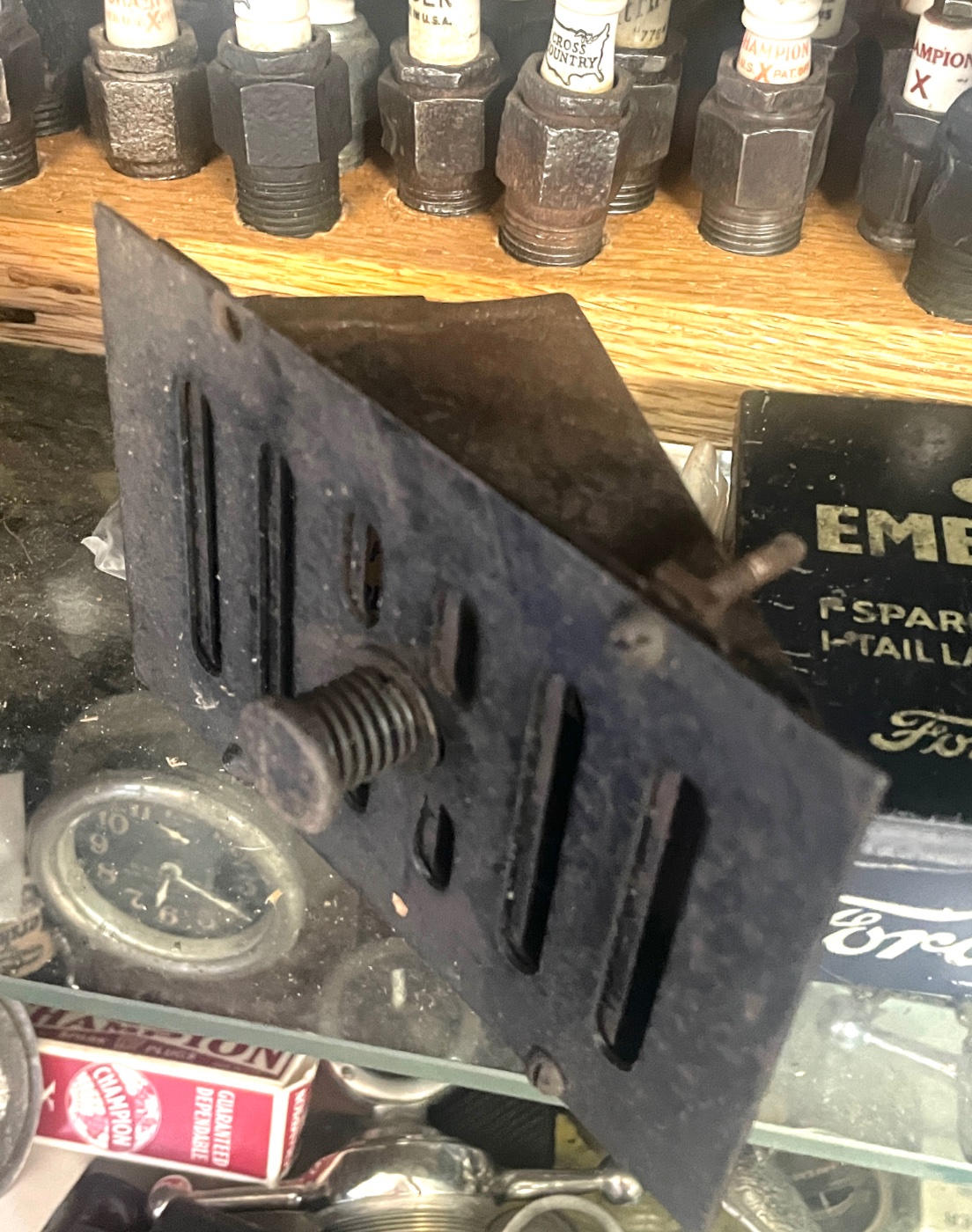

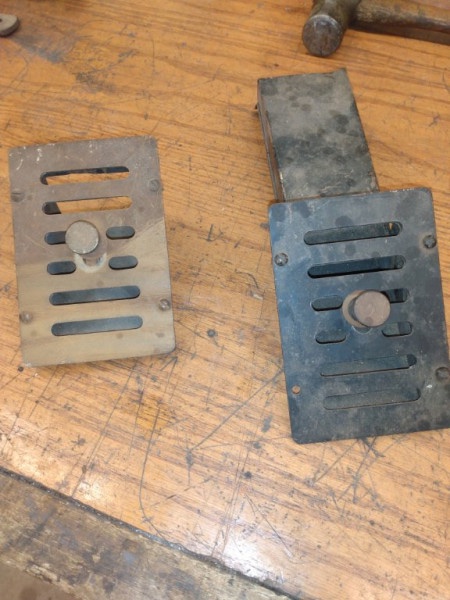

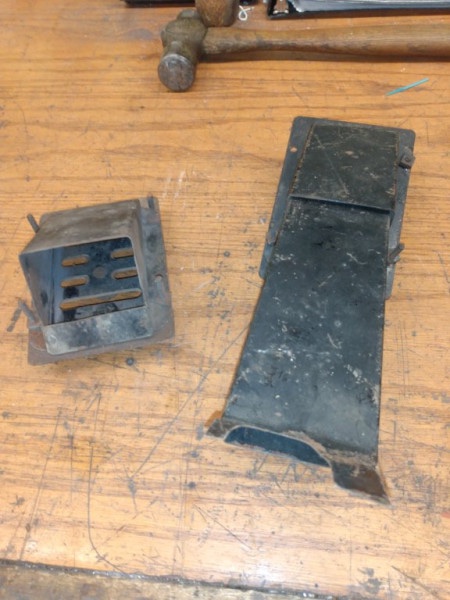

Some pics of registers for those heaters.
Floor board install
Have one of these registers in my stash if you need one, may be useful for your install.
- IMG_20220131_125703212.jpeg (100.69 KiB) Viewed 367 times
- IMG_20220131_125716620.jpeg (91.6 KiB) Viewed 367 times
Have one of these registers in my stash if you need one, may be useful for your install.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
TXGOAT2
- Posts: 8491
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Need to make parts for a manifold heater
Looks like a prolific source of squeaks. I wonder if a flex coupling for the register could be made from the material they make oven door gaskets from. (?)
-
RajoRacer
- Posts: 5504
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Need to make parts for a manifold heater
Like you could actually hear a "squeak" over the engine noise & knarly planetary ?
-
TXGOAT2
- Posts: 8491
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Need to make parts for a manifold heater
You could in my car.
-
Mark Nunn
- Posts: 1288
- Joined: Mon Jan 07, 2019 8:01 am
- First Name: Mark
- Last Name: Nunn
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: Bennington, NE
- Board Member Since: 2017
Re: Need to make parts for a manifold heater
Rich Eagle made a vent for his heater. See the posts starting around Feb 8.
https://mtfca.com/phpBB3/viewtopic.php?t=371
https://mtfca.com/phpBB3/viewtopic.php?t=371
-
Reno Speedster
Topic author - Posts: 633
- Joined: Tue May 26, 2020 6:23 pm
- First Name: Morgan
- Last Name: Blanchard
- * REQUIRED* Type and Year of Model Ts owned: 1926 Model T Speedster Project, 1922 Runabout Pickup
- Location: Anchorage, Alaska
Re: Need to make parts for a manifold heater
Thanks guys. I got a register on the way in the post. I will clean things up and get the manifold ready to go on the 22 in the spring. I have a Z head to go on it and a few other things to do when the weather gets better. I have a zenith carb and intake I might try as well. My 22 is a rolling accessory magnet.
