26 Roadster Pickup project question

Post by fordt » Mon Oct 14, 2019 6:06 pm

Finally putting together the 20 year old 26 RPU project....couple of questions, for now...
Are the door hinge screws really 1/4-18? I saved the old ones but am probably 1 or 2 short, so....cheat and move a couple up to 5/16-18?
Pulled everything apart and blasted it, patch paneled and primed it and am now slapping it back together. Unfortunately, working with one good cowl and one good firewall that weren’t attached to good opposing pieces I didn’t notice or photograph whether the cowl bracket that extends up to the firewall goes BETWEEN the firewall and the cowl or inside of everything? It looks as though there is a indentation there in the firewall where it should go between...
Anyone got an answer...is that described clear as mud?!
Thanks...


Scott_Conger
Posts: 1813
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: 26 Roadster Pickup project question

Post by Scott_Conger » Mon Oct 14, 2019 6:13 pm

1/4-18 is a pipe thread and is WAY larger than a 1/4". I am going to assume you meant 1/4-20.

Why not take the hinge to a hardware store and fit machine screws (stove bolts) that match the hole in the hinge?
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
fordt
Posts: 33
Joined: Wed Jun 19, 2019 5:21 pm
First Name: Rob
Last Name: Trippet
Location: Comfort, TX

Re: 26 Roadster Pickup project question

Post by fordt » Mon Oct 14, 2019 6:18 pm

I slapped a thread gauge on them, then held them against some 5/16-18, and they matched both beautifully...a 20 nut won’t go on them...


Topic author
fordt
Posts: 33
Joined: Wed Jun 19, 2019 5:21 pm
First Name: Rob
Last Name: Trippet
Location: Comfort, TX

Re: 26 Roadster Pickup project question

Post by fordt » Mon Oct 14, 2019 6:20 pm

The hardware store 5/16-18 slotted steel flathead screw may have to be the answer all around....


Scott_Conger
Posts: 1813
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: 26 Roadster Pickup project question

Post by Scott_Conger » Mon Oct 14, 2019 7:48 pm

Sounds like a plan...
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Topic author
fordt
Posts: 33
Joined: Wed Jun 19, 2019 5:21 pm
First Name: Rob
Last Name: Trippet
Location: Comfort, TX

Re: 26 Roadster Pickup project question

Post by fordt » Mon Oct 14, 2019 9:18 pm

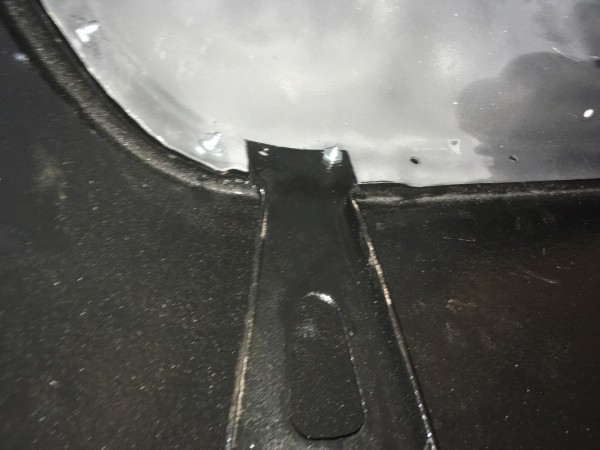

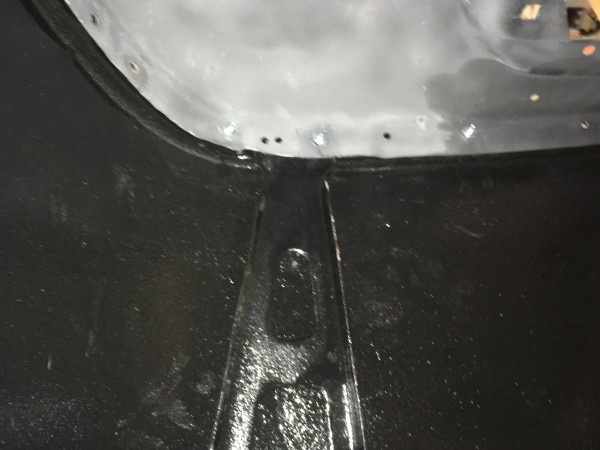

I’ll attach a picture of both ways the cowl brace attached....which way is correct? The image is turned 90°....
[image]
[/image]
[image]
[/image]

User avatar

Mark Nunn
Posts: 194
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: 26 Roadster Pickup project question

Post by Mark Nunn » Mon Oct 14, 2019 10:23 pm

Rob, I went out and looked at my '26 Roadster and the brace is riveted on like your lower photo. It's not between the panels.


Topic author
fordt
Posts: 33
Joined: Wed Jun 19, 2019 5:21 pm
First Name: Rob
Last Name: Trippet
Location: Comfort, TX

Re: 26 Roadster Pickup project question

Post by fordt » Mon Oct 14, 2019 10:37 pm

Thanks!
