by TonyB » Tue Feb 12, 2019 2:41 pm
I was looking thru the instructions on how to post pictures and found this.
Now that would be GREAT on the front of the Speedster, I want one
There are a couple of things about it that look a little odd. It seems to have an eight cylinder distributor, a water pump and an oil pump. Wow that would be fun but would the water pump get me banned from various speedster run?

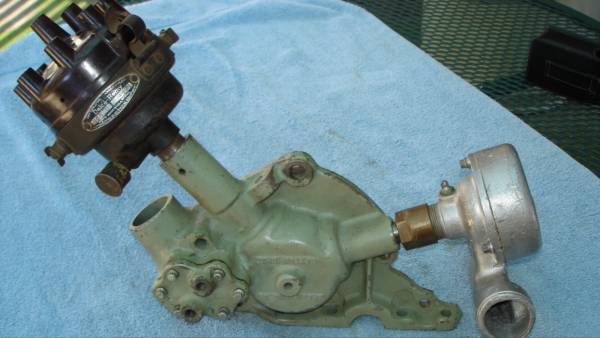

- Accessory front cover plate.
Tony Bowker
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.
-
RajoRacer
- Posts: 5174
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Post
by RajoRacer » Tue Feb 12, 2019 3:50 pm

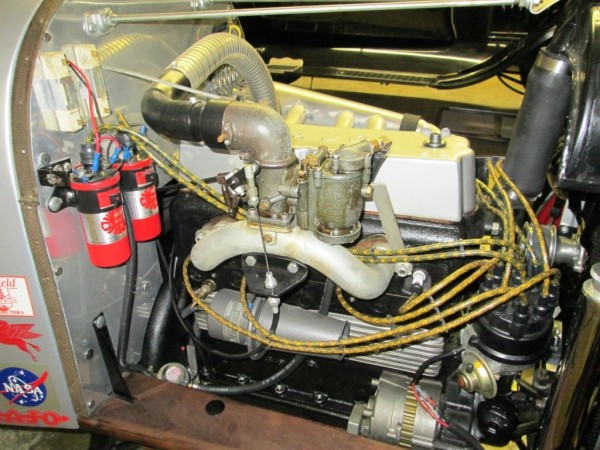

I run a similar odd 8 plug distributor ! ZOOM - ZOOM !
When is the tour, Tony ?
-
Attachments
-
-
walber
- Posts: 239
- Joined: Sun Jan 06, 2019 12:55 pm
- First Name: Walt
- Last Name: Berdan
- * REQUIRED* Type and Year of Model Ts owned: '18 Speedster had 25 touring and 26 coupe
- Location: Bellevue, WA
Post
by walber » Tue Feb 12, 2019 5:41 pm
Tony, You would need to check with the event organizer or the posted rules for any of the speedster events. Some have been strict about no post '27 equipment in the past but may be more flexible now. Rules do vary some between the various groups as is their privilege. At one time in at least one group that distributor would not have been permitted but the water pump would have been as that appears to be an appropriate T era accessory front cover.
-
walber
- Posts: 239
- Joined: Sun Jan 06, 2019 12:55 pm
- First Name: Walt
- Last Name: Berdan
- * REQUIRED* Type and Year of Model Ts owned: '18 Speedster had 25 touring and 26 coupe
- Location: Bellevue, WA
Post
by walber » Tue Feb 12, 2019 5:44 pm
On second observation, the distributor on your photo might actually be early enough to qualify. My first look had me thinking it was a Nissan part like Steve and others have.
-
babychadwick
- Posts: 653
- Joined: Tue Jan 08, 2019 7:03 am
- First Name: Chad
- Last Name: Azevedo
- * REQUIRED* Type and Year of Model Ts owned: 1926 Boattail speedster, 1912 Tourabout project, 1927 Speedster (build), 1929 Buick (future T tow car)
- Location: Henderson, TN
- Board Member Since: 1999
Post
by babychadwick » Tue Feb 12, 2019 9:00 pm
It's a period front plate and totally allowed as far as I know. Now good luck finding one . . .
"Those who fail to plan, plan to fail"
-
mcenhillk
- Posts: 13
- Joined: Wed Jan 16, 2019 9:41 pm
- First Name: Kevin
- Last Name: McEnhill
- Location: Bellevue, NE
- Board Member Since: 2018
Post
by mcenhillk » Wed Feb 13, 2019 7:18 am
RajoRacer wrote: ↑Tue Feb 12, 2019 3:50 pm
I run a similar odd 8 plug distributor ! ZOOM - ZOOM !
When is the tour, Tony ?
I like the NASA sticker on a Model T!
Still looking for the 1,000 square foot house with the 12 car garage...
-
babychadwick
- Posts: 653
- Joined: Tue Jan 08, 2019 7:03 am
- First Name: Chad
- Last Name: Azevedo
- * REQUIRED* Type and Year of Model Ts owned: 1926 Boattail speedster, 1912 Tourabout project, 1927 Speedster (build), 1929 Buick (future T tow car)
- Location: Henderson, TN
- Board Member Since: 1999
Post
by babychadwick » Wed Feb 13, 2019 10:00 am
For those wondering it is a green plate, more information can be found here.
http://www.mtfca.com/discus/messages/82 ... 1545458635"Those who fail to plan, plan to fail"
-
John Codman
- Posts: 1482
- Joined: Mon Jan 07, 2019 10:27 am
- First Name: John
- Last Name: Codman
- * REQUIRED* Type and Year of Model Ts owned: 1927 Youring
- Location: Naples, FL 34120
Post
by John Codman » Wed Feb 13, 2019 10:02 am
The first T that I soloed in had a VW distributor. My T has a magneto as God and Henry Ford intended.
-
Mike Penserini
- Posts: 59
- Joined: Mon Jan 14, 2019 1:53 am
- First Name: Mike
- Last Name: Penserini
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster pickup, brass speedster, Mercury # 253 B, Mercury # 1070, Faultless "Hoosier" parts collection.
- Location: Sacramento
Post
by Mike Penserini » Sun Feb 17, 2019 2:36 pm
This Green Engineering triple plate is a NOS era accessory. The distributor is a Delco Studebaker reworked to fire 2 plugs at once. Complete triple plates are a hard item to find, Green Engineering equipment is darn near impossible.
-
rbishop26
- Posts: 77
- Joined: Sun Jan 06, 2019 5:24 pm
- First Name: Bob
- Last Name: Bishop
- Location: San Diego, CA
- MTFCA Life Member: YES
- Board Member Since: 2001
Post
by rbishop26 » Sun Feb 17, 2019 3:27 pm
Tony,
The water pump would probably get you banned from the Model T Club!
Bob Bishop
San Diego, CA
1914 touring, 1917 touring
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Post
by Les Schubert » Sun Feb 17, 2019 8:26 pm
I see the Nissan cap is referred to, and that is currently a readily available option. I adapted one to a Bosch front plate distributor. A viable way to fire dual plugs using this cap is a coil for a two cylinder Onan engine. It fires both plugs every time in its original application and seems to work ok firing the Nissan dual plug distributor cap
-
Les Schubert
- Posts: 1357
- Joined: Thu Jan 10, 2019 5:47 pm
- First Name: Les
- Last Name: Schubert
- * REQUIRED* Type and Year of Model Ts owned: 27 roadster 13 touring
- Location: Calgary
Post
by Les Schubert » Sun Feb 17, 2019 8:27 pm
The cap and rotor adapter was not difficult to make
