Drag Link Rubs On Wishbone
The drag link on the ‘25 slightly rubs on the top of the wishbone. Is the pitman arm too long? Wondering if this was changed in the past for “better” steering…,
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: Drag Link Rubs On Wishbone
Michael,
The length of your pitman arm has little effect that far away. How much caster do you have? That may have more to do with the rubbing by tipping the steering arm down.
Craig.
The length of your pitman arm has little effect that far away. How much caster do you have? That may have more to do with the rubbing by tipping the steering arm down.
Craig.
-
Ron Mac
- Posts: 59
- Joined: Thu Nov 12, 2020 3:10 pm
- First Name: Ron
- Last Name: Mc Willie
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1911 torpedo, 1913 runabout, 1914 pie wagon, speedsters
- Location: Pismo Beach CA
- Board Member Since: 2010
Re: Drag Link Rubs On Wishbone
Check your spindle arms. Earlier arms are straight and later arms have an upward curve. Your car should have the later ones with the upward curve (they come in right and left side). A local member just bought a Model T and had one of each type and his drag link and tie rod were rubbing against the radius rod on one side.
-
MichaelPawelek
Topic author - Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: Drag Link Rubs On Wishbone
Both spindle arms have the curve. Thank you.
-
MichaelPawelek
Topic author - Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: Drag Link Rubs On Wishbone
Took a look and yes a lot of caster and the spindle arms are pointed down below horizontal.Craig Leach wrote: ↑Fri Oct 15, 2021 4:52 pmMichael,
The length of your pitman arm has little effect that far away. How much caster do you have? That may have more to do with the rubbing by tipping the steering arm down.
Craig.
-
TRDxB2
- Posts: 6260
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Drag Link Rubs On Wishbone
Do you have a good pit arm? Looks like a gap and washer in the photo.
- pitarm.png (170.07 KiB) Viewed 2182 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Dan Haynes
- Posts: 472
- Joined: Mon Jan 07, 2019 10:37 am
- First Name: Dan
- Last Name: Haynes
- * REQUIRED* Type and Year of Model Ts owned: several
- Location: Lodi, CA
Re: Drag Link Rubs On Wishbone
I suspect it is because the car is lowered. The pitman arm dropped with the rest of the chassis and it is now low enough to hit.
"The further a society drifts from truth, the more it will hate those who speak it." -George Orwell
-
MichaelPawelek
Topic author - Posts: 712
- Joined: Sun Jan 06, 2019 2:01 pm
- First Name: Michael
- Last Name: Pawelek
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring, 1925 Coupe
- Location: Brookshire, Texas
- Board Member Since: 1999
Re: Drag Link Rubs On Wishbone
Dan, Please explain. How can the car be lowered? Where do I look compared to a standard Coupe?
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: Drag Link Rubs On Wishbone
Michael,
sorry been real busy today getting ready for the show & swap meet in maricopa. Has your wish bone been beefed up? ( looks a little large ) If all the steering geomitry looks good? If your tie rod yoke is a 2721L and the ball is a2721A you can simply turn it over, if the yoke is a 2721 and the ball is a 2721B then you will need a tapered reamer to turn it over. If my phone ever down loads the pic of my fire truck I can show you what it should look like.
Craig.
sorry been real busy today getting ready for the show & swap meet in maricopa. Has your wish bone been beefed up? ( looks a little large ) If all the steering geomitry looks good? If your tie rod yoke is a 2721L and the ball is a2721A you can simply turn it over, if the yoke is a 2721 and the ball is a 2721B then you will need a tapered reamer to turn it over. If my phone ever down loads the pic of my fire truck I can show you what it should look like.
Craig.
-
Craig Leach
- Posts: 1906
- Joined: Tue Jan 08, 2019 12:22 am
- First Name: craig
- Last Name: leach
- * REQUIRED* Type and Year of Model Ts owned: 1919 Firetruck/1922 Speedster
- Location: Laveen Az
Re: Drag Link Rubs On Wishbone
The tie rod can be turned over to raise the draglink.
Craig.
Craig.

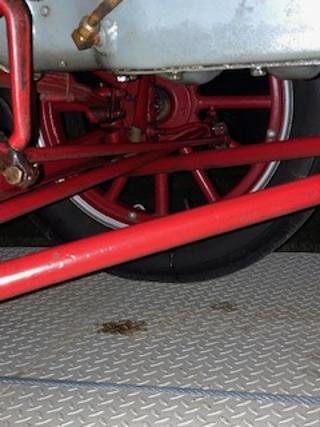

- tie rod.jpg (26.65 KiB) Viewed 2105 times
