Will this rim fit

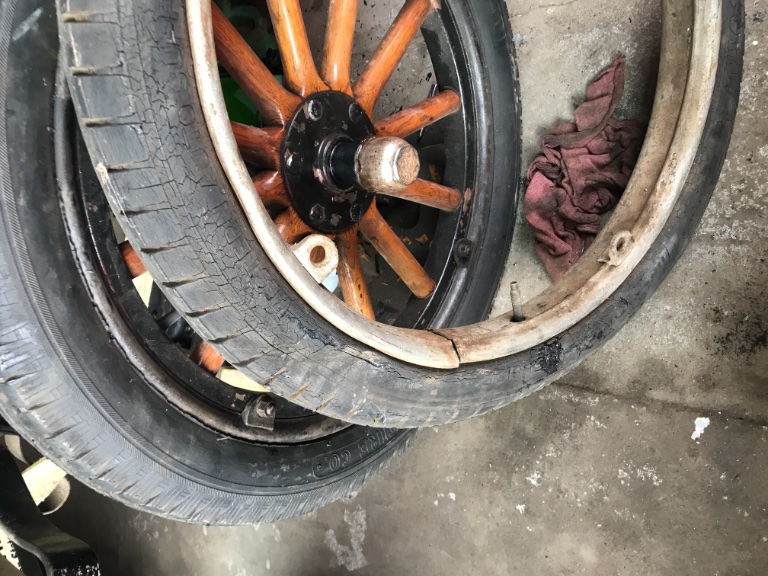

On the way to work this morning I found this rim in the trash, I think it has a broken repair crack , I don't have any spare, welding it is no problem for me. The tire on it says 30/3-1/2 oversized, I haven't tried to put air in it yet
- Attachments
-
-
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Will this rim fit
Nice dumpster diving! What the heck were they thinking! Looks like the lugs on it will match up to your wheels. I would not see an issue welding it up and using for a spare. I would mount to a wheel and at least tack weld a couple of place to keep the correct size. Lot depends on the condition of the clincher edges. Don't think I would use that tire.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Will this rim fit

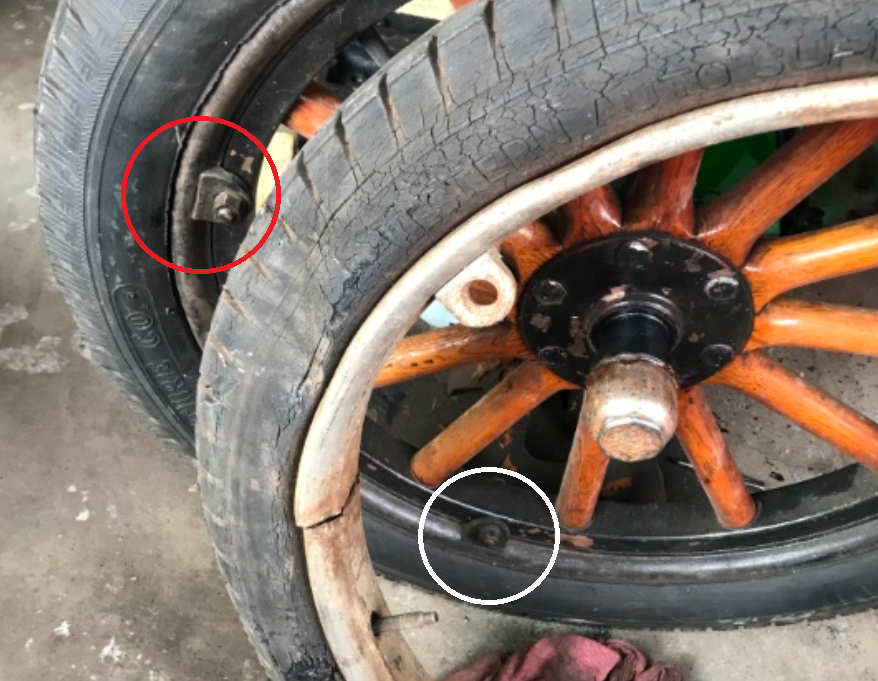

It's a Hayes rim and the other one in your picture is another brand, but it may fit your wheel. You can try it and see. The tire is toast. When you remove the tire inspect the clincher edge closely. If it's rusted sharp, that's probably why it was in the trash.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Will this rim fit

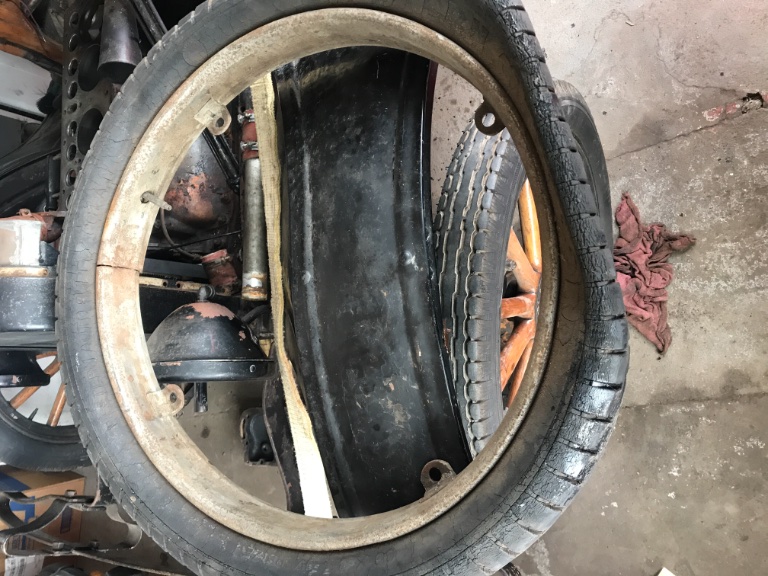

Check the inside of the rim for a manufacturer. Not all rims fit all felloes. Not sure what you have.
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Will this rim fit
Check the inside of the rim for a manufacturer.
It's Hayes. The other one isn't. Firestone, Kelsey, and Cleveland rims all used camps before rims were standardized. I agree, the way to find out if it fits is to try it. When Ford first started using demountable rims they did not interchange. Later they did.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Norman Kling
- Posts: 4634
- Joined: Tue Jan 08, 2019 1:39 pm
- First Name: Norman
- Last Name: Kling
- Location: Alpine California
Re: Will this rim fit
What about the valve stem. Is it in the same position in relation to the lugs?
Norm
Norm
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Will this rim fit
If the inside of the rim isn’t rusted badly and the rim is still good on the edges that’s a keeper. I’m pretty good at welding and that is a fixer upper as far as I can tell. At the very least for a spare.
-
Kurt in NJ
Topic author - Posts: 22
- Joined: Sun Nov 28, 2021 12:59 pm
- First Name: Kurt
- Last Name: Fehr
- * REQUIRED* Type and Year of Model Ts owned: 1917 touring
- Location: Northfield NJ
Re: Will this rim fit
I went back, I was going to do some deeper mining, the tag on the rim said there were 2 rims, the dumpster was a new empty one, I know a T lived at the house, I also found a nos 36 Ford front spring, I am going to put a note on the house to see if they want help cleaning out the garage and basement.
-
Hap_Tucker
- Posts: 393
- Joined: Sun Jan 06, 2019 4:58 pm
- First Name: Hap
- Last Name: Tucker
- * REQUIRED* Type and Year of Model Ts owned: 1915 cut off touring; 1918 touring; 1922 Speedster
- Location: Sumter, SC
- MTFCA Life Member: YES
Re: Will this rim fit
Kurt,
Remember to keep the metal valve stem -- it can be reused or if you don't want to use it, someone else would probably want to use it.
And that's a great idea to contact the folks. They probably just want to get the "junk" moved out and you might help save some "good stuff!"
Respectfully submitted,
Hap l9l5 cut off
Remember to keep the metal valve stem -- it can be reused or if you don't want to use it, someone else would probably want to use it.
And that's a great idea to contact the folks. They probably just want to get the "junk" moved out and you might help save some "good stuff!"
Respectfully submitted,
Hap l9l5 cut off
-
Steve Jelf
- Posts: 7237
- Joined: Fri Jan 04, 2019 9:37 pm
- First Name: Steve
- Last Name: Jelf
- * REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
- Location: Parkerfield, Kansas
- Board Member Since: 2007
- Contact:
Re: Will this rim fit
Remember to keep the metal valve stem -- it can be reused...
If it's old enough. If the tube is the modern type the stem base may be too small for reuse.
