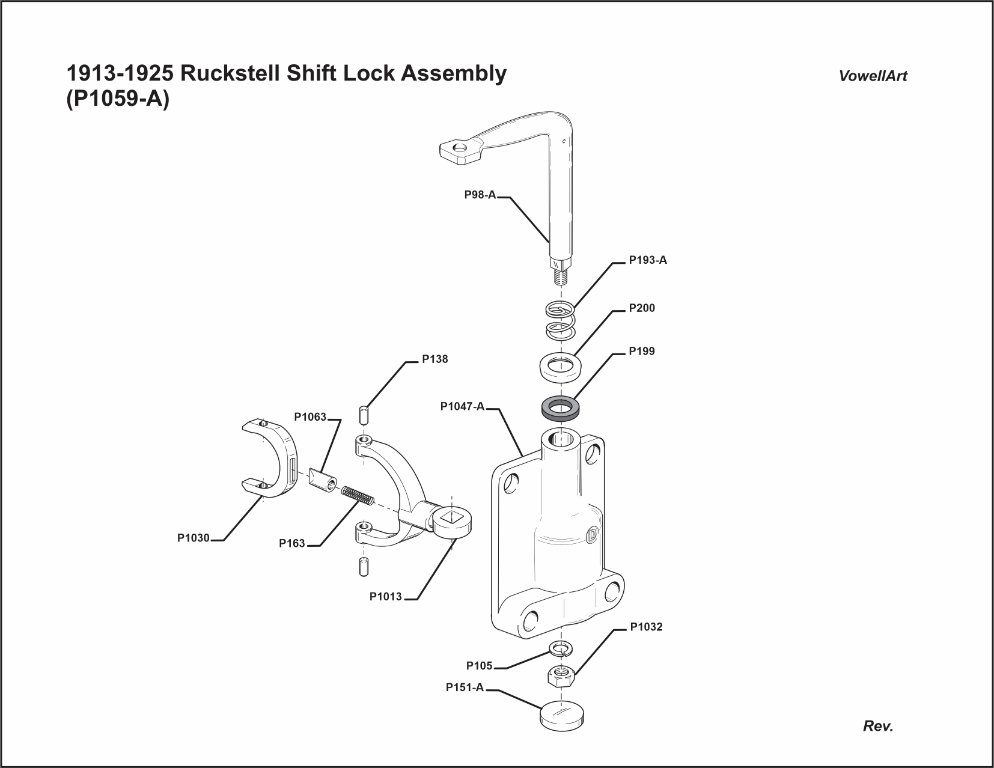

***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Sun Mar 06, 2022 9:38 pm

All of the 13-25 Shift Lock Assemblies I've seen, the housings all look like this one with a thicker lower mounting flange than like the upper flange, even though the one in the books shows it as a thin flange all around. Not sure if this is something that maybe was a re-design later or if the ones in the books are just artists conceptions (they're not photos, they're all hand drawn, real "Chicago House Illustrator" style).
Fun never quits!

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by RajoRacer » Sun Mar 06, 2022 9:47 pm

I have one on the shelf - it's the same thickness at all four mounting holes.

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Mon Mar 07, 2022 7:00 am

Thin flange all around? Got a picture of it?
Fun never quits!

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by RajoRacer » Mon Mar 07, 2022 10:37 am

I'll attempt to get one for you today.

User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by A Whiteman » Mon Mar 07, 2022 5:24 pm

My spare TT Ruckstell has a Hall Scott shifter:
IMG20220308111347 (Large).jpg
IMG20220308111223 (Large).jpg
IMG20220308111313 (Large).jpg
IMG20220308111306 (Large).jpg
IMG20220308111230 (Large).jpg

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Mon Mar 07, 2022 8:53 pm

Adrian, great pictures, but it looks like your Hall Scott Shifter, doesn't have that spring on the arm to keep the dust cover on the felt seal...but then it also doesn't have that felt seal either....what's on the inside of this shifter, same as the one I drew or is there something different going on in there? Also, is this shifter a Ruckstell part or is it an aftermarket replacement shifter?
Fun never quits!

User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by A Whiteman » Tue Mar 08, 2022 2:13 am

Hi Martynn,I plan to tear it down for you over the next few days. (The spring and seal may well have been 'lost' by the previous owner).
Cheers
Adrian

User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by A Whiteman » Tue Mar 08, 2022 7:03 pm

Detail pics in email:
Cheers
Adrian
IMG20220309112806 (Large).jpg

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by RajoRacer » Tue Mar 08, 2022 7:05 pm

Martynn - my TT shifter is the same as Adrian's.


Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by Allan » Tue Mar 08, 2022 10:48 pm

Martynn, you might want to revise the dates. I believe the trucks were introduced in the late teens, so a 1913 Hall Scott two speed would be way ahead of its time.

Allan from down under.

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Wed Mar 09, 2022 7:17 pm

Allan you're absolutely correct, don't know what I was thinking (got all corn-fused with the cars versions)....here's the correction and I'm now drawing the Hall Scott Shifter also, not sure if it is an aftermarket or one that was used on foreign trucks, but it is obvious that it needs doing. :D

Fun never quits!

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by RajoRacer » Wed Mar 09, 2022 7:45 pm

I have several TT shifters Martynn and all of them have the same flange thickness for all 4 bolts - never seen one raised at the bottom as you have drawn ?


Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by Original Smith » Fri Mar 11, 2022 10:35 am

I believe the first TT trucks came out in 1917. Where does this information come from?

User avatar

StevenS
Posts: 499
Joined: Sun Jan 06, 2019 10:20 pm
First Name: Steven
Last Name: Sebaugh
* REQUIRED* Type and Year of Model Ts owned: 1924 Touring, 1924 TT Truck
Location: Jackson, Missouri

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by StevenS » Fri Mar 11, 2022 9:38 pm

Original Smith wrote:
Fri Mar 11, 2022 10:35 am
I believe the first TT trucks came out in 1917. Where does this information come from?
https://www.mtfca.com/encyclo/1917.htm
1924 Model T Touring
1924 Model TT Truck
1928 Graham-Paige model 619
1930 Model A Phaeton
"It is great to be crazy ... It gives you a lot more options in life"

User avatar

JunkyJud
Posts: 70
Joined: Sun Jan 06, 2019 1:19 pm
First Name: Justin
Last Name: H
* REQUIRED* Type and Year of Model Ts owned: 1924 TT C cab
Location: Western PA

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by JunkyJud » Sat Mar 12, 2022 8:31 am

Martynn,
From what I know, there were 3 different TT Ruckstell shifters. The earliest, and weakest, was the bronze housed Hall-Scott shifter as is shown above. I don't believe that this one had the upper spring and retainer. The next is the cast short Hall-Scott shifter, like the one you have drawn. It does have the reinforced bosses at the bottom. The latest is the long nose Ruckstell shifter. If you need or want better pictures of this I can send them as I have a really nice one in my stash.
Shifter 8.jpg
Shifter 9.jpg
Short nose shifter.jpg
Long nose shifter 1.JPG
Justin in Western PA

User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by RajoRacer » Sat Mar 12, 2022 10:35 am

Thanks for posting the shifter photos - always something to learn !


Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by Original Smith » Sat Mar 12, 2022 10:44 am

For the passenger cars, I've seen many broken and cracked shifter housings, but have never seen a broken bronze one. I have two 1913's with the bronze shifter housings, and neither have ever given me a problem.

User avatar

JunkyJud
Posts: 70
Joined: Sun Jan 06, 2019 1:19 pm
First Name: Justin
Last Name: H
* REQUIRED* Type and Year of Model Ts owned: 1924 TT C cab
Location: Western PA

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by JunkyJud » Sat Mar 12, 2022 10:50 am

I've seen two of the bronze TT shifters broken on the part of the housing where the steel shift arm shaft goes through.
Justin in Western PA

User avatar

A Whiteman
Posts: 1125
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by A Whiteman » Sat Mar 12, 2022 4:00 pm

The TT shifter has a lot more force applied than a car one, so that may explain the weakness in bronze vs car ones?

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Wed Mar 16, 2022 9:18 pm

Ok, Steve, you said your Shifter looked like Adrian's Hall Scott, does your shifter have the words "HALL SCOTT" on it too? Or does it have just a casting or foundry mark on the front? I need to know what it looks like, because I've found this very same shifter on a cars Ruckstell too.

Probably true about the bronze not being strong enough for the Truck, which is probably held true for the car too for that matter, which would make sense as to why Glen made his Shift Lock with a reinforcement on the bottom where the fork yoke is mounted to the shifting arm.
Fun never quits!

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Tue Mar 22, 2022 11:07 pm

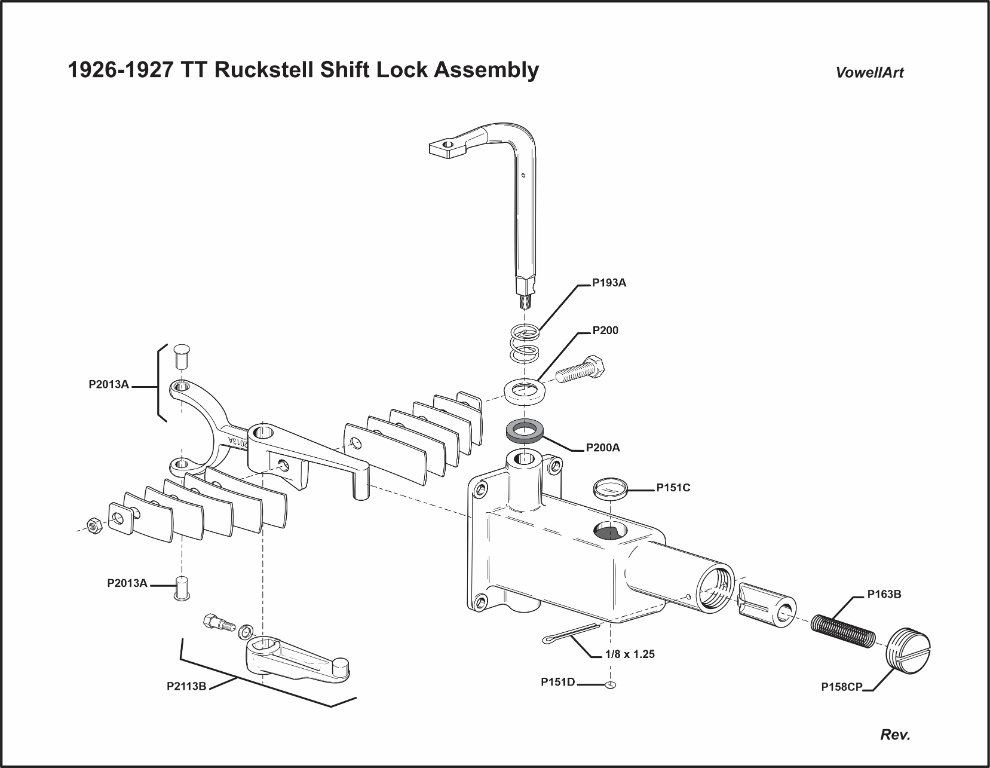

Ok, soooo, it seems likely that the bronze Hall Scott TT shifter would span between 1918 and 1922 for use with the 2 pinion axle. Then in 1923 thru 1925 change to the one I drew first, being a reinforced housing due to the problems with the 2 pinion housing, it seems they'd expect that the new axle 4 pinion configuration would put even more stress on that part of the housing. Then in 1926-1927 the "Bottle" style would start. I also assume that these changes and the times they happened would hold true for the cars as well.

For which I don't have any of the part numbers for the springs (because they are not the same as in the cars axle) or the plunger (which does look like the cars version, but I'm sure it's a bit bigger) or the arm (because it's got to be bigger).

If anybody has part numbers for these parts, please let me know, thanks.
Fun never quits!

User avatar

Topic author
VowellArt
Posts: 579
Joined: Sun Jan 06, 2019 8:44 am
First Name: Martynn
Last Name: Vowell
* REQUIRED* Type and Year of Model Ts owned: 1922 Touring, th "Lady"
Location: Sylmar, Commiefornia
Board Member Since: 2012
Contact:

Re: ***1913-1925 Model TT Ruckstell Slift Lock Assembly***

Post by VowellArt » Wed Mar 23, 2022 7:16 am

Revison
