Question re band lining
If I recall, Herm removed the center of band linings so there was a gap at the bottom. Has anyone tried this that can comment on its effectiveness and longevity? I always respected Herms advice but this one is a head scratcher. ;0]
-
- Posts: 163
- Joined: Mon Dec 14, 2020 1:17 pm
- First Name: K
- Last Name: Burket
- * REQUIRED* Type and Year of Model Ts owned: 1926 RPU
- Location: Seattle,Wa
- MTFCA Life Member: YES
- Board Member Since: 2017
Re: Question re band lining
Here is a link to his in depth post about transmission rebuild where he discusses cutting a section out of the bands. https://mtfca.com/phpBB3/viewtopic.php?t=2114
His discussion further along in the post after the photos mentions he saw the method discussed in Dykes book.
I’m interested in folks opinions too and will be relining bands in the near future. I may give this method a try.
His discussion further along in the post after the photos mentions he saw the method discussed in Dykes book.
I’m interested in folks opinions too and will be relining bands in the near future. I may give this method a try.
-
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Question re band lining
Seems more practical to stay with the factory way. More lining length is more friction contact, that is the purpose.
Couldn't find ref. in my 1922 Dykes to doing this to woven linings, cutting the base circle away. When you remove old woven linings the bottom part is worn too from circular contact.
IMO, leave the woven lining the full length.
Now this segmenting likely was suitable for hard linings, like wood. One mfg. choose to make the wood linings in segments, useful to get oil to those large gaps, as the wood doesn't hold as much oil as woven linings, and useful to keep from making a whole circle of wood, easier to make.

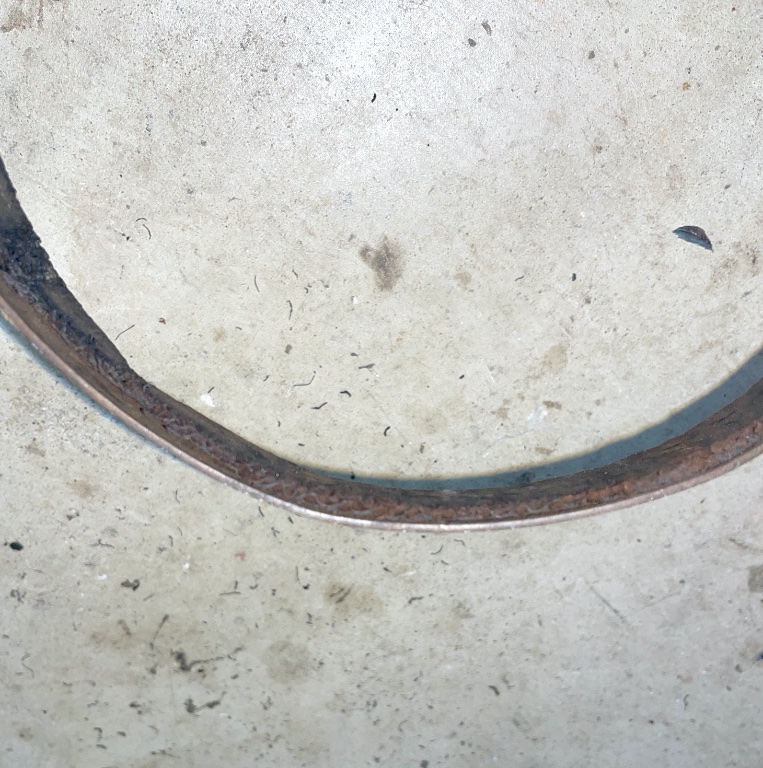

With the full circle wood linings, the ones you can purchase today, you can see that the bottom of the circle is worn thin, showing the need for full wrapping of a lining around the drum.
Couldn't find ref. in my 1922 Dykes to doing this to woven linings, cutting the base circle away. When you remove old woven linings the bottom part is worn too from circular contact.
IMO, leave the woven lining the full length.
Now this segmenting likely was suitable for hard linings, like wood. One mfg. choose to make the wood linings in segments, useful to get oil to those large gaps, as the wood doesn't hold as much oil as woven linings, and useful to keep from making a whole circle of wood, easier to make.
With the full circle wood linings, the ones you can purchase today, you can see that the bottom of the circle is worn thin, showing the need for full wrapping of a lining around the drum.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
- Posts: 619
- Joined: Sun Jan 06, 2019 12:32 pm
- First Name: George
- Last Name: Mills
- * REQUIRED* Type and Year of Model Ts owned: 1915 Roadster, 1919 Hack, 1925 Fordor
- Location: Cherry Hill NJ/Anona Largo FL
- Board Member Since: 1999
Re: Question re band lining
Herm use to just pick up the phone and call me when he was bored and we'd 'porch chat' things like this. We disagreed on lots of things, but never argued.
My view of this clipped band is...depends. Even as a full professional engineer view.
Band drag is just BAD...cotton bands just wear quickly in the area of contact...wood bands might glaze and wallow...Kevlar bands at this condition raise havoc. Having that little bit missing at 6 o'clock actually near mitigates lower band drag if the metal bands are anywhere near round and not stretched to egg shape on installation.
On the other end... DRIVING HABITS. A whole lot of folks feather-in the bands against the drums, ride the feather tighter and tighter, until the drum eventually stops. BAD habit, even though wet clutch systems work perfectly well with feathering, to a degree. There is no sliding friction as such, it is actually very quick stick-slip action as there is no place for new lube once old lube is squished out! (Oh where for art thou' late Ralph Ricks?) So what happens when a resistant material is un-lubricated and no heat flushing of hot spots developed? Lots of heat, and that breaks down organic fibers, or on Kevlar just makes the hot spots hotter. Sensible people who have absolutely no issues with any band material pretty much come have a best practices approach of close to dumping the clutch pedal, using the reverse as on/off with varying throttle, and actually pump the brake pedal until almost stopped rather than drag it .
So to the original question? Notching that 6 o'clock spot lets a gulp of oil on the drum, and the following heat exchange action gets flushed away and constantly replaced.
Not saying this should be a universal consideration as I follow my own example and I'm an equal opportunity band user with the cars in the stable...no cracked drums with Kevlar, no chatter with Guinn Woods, and I'm just now running out of inventory on old original Scandia cottons. However, I can see merits in the Herm and VanDyk approach to longer band life and less drum wear, for those who are not as OC as someone like me when it comes to driving habits and insisting on absolute exact round bands with no stretching on install...
Others opinions may vary...
My view of this clipped band is...depends. Even as a full professional engineer view.
Band drag is just BAD...cotton bands just wear quickly in the area of contact...wood bands might glaze and wallow...Kevlar bands at this condition raise havoc. Having that little bit missing at 6 o'clock actually near mitigates lower band drag if the metal bands are anywhere near round and not stretched to egg shape on installation.
On the other end... DRIVING HABITS. A whole lot of folks feather-in the bands against the drums, ride the feather tighter and tighter, until the drum eventually stops. BAD habit, even though wet clutch systems work perfectly well with feathering, to a degree. There is no sliding friction as such, it is actually very quick stick-slip action as there is no place for new lube once old lube is squished out! (Oh where for art thou' late Ralph Ricks?) So what happens when a resistant material is un-lubricated and no heat flushing of hot spots developed? Lots of heat, and that breaks down organic fibers, or on Kevlar just makes the hot spots hotter. Sensible people who have absolutely no issues with any band material pretty much come have a best practices approach of close to dumping the clutch pedal, using the reverse as on/off with varying throttle, and actually pump the brake pedal until almost stopped rather than drag it .
So to the original question? Notching that 6 o'clock spot lets a gulp of oil on the drum, and the following heat exchange action gets flushed away and constantly replaced.
Not saying this should be a universal consideration as I follow my own example and I'm an equal opportunity band user with the cars in the stable...no cracked drums with Kevlar, no chatter with Guinn Woods, and I'm just now running out of inventory on old original Scandia cottons. However, I can see merits in the Herm and VanDyk approach to longer band life and less drum wear, for those who are not as OC as someone like me when it comes to driving habits and insisting on absolute exact round bands with no stretching on install...
Others opinions may vary...
-
- Posts: 835
- Joined: Sun Jan 06, 2019 11:15 am
- First Name: Andrew
- Last Name: Clary
- * REQUIRED* Type and Year of Model Ts owned: 1914 Runabout 1926 Coupe. Mercury Speedster #1249
- Location: Usa
Re: Question re band lining
I’m curious how one would get adequate compression of the band material with the gap? I believe round bands and proper use are the key to band life.
Andy
Andy
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Question re band lining
I think band compression would be better with the gap. Pedal pressure required to stop the drum might be a little lower. I believe the gapped bands would work better on the low band and brake band, provided the installation was done correctly. I do think having a gapped brake band would make it more important to pump the pedal, that is, applying the brake firmly for a few seconds, then releasing the pedal completely for an instant, then re-applying. The gapped low and reverse bands would be a little less likely to drag, and less likely to be over-oiled, especially when cold. Pumping the brake on prolonged application would assure plenty of oil flush and good cooling. Proper installation and drums in good condition would be important, as always.
-
- Posts: 7391
- Joined: Sun Feb 14, 2021 10:08 pm
- First Name: Pat
- Last Name: McNallen
- * REQUIRED* Type and Year of Model Ts owned: 1926-7 roadster
- Location: Graham, Texas
- Board Member Since: 2021
Re: Question re band lining
Keeping the engine in good tune and keeping the pedal linkage in good condition and properly adjusted are necessary to minimize slipping the low and reverse bands. A well-tuned engine will not lurch and die when the low band is applied firmly when starting the car in motion. A well-tuned engine will have good compression and low RPM torque and will be capable of a low idle speed, which improves engine braking and promotes smooth shifts from low to high at low car speeds. An engine which bucks and snorts when a load is applied makes proper use of the bands difficult to impossible. A high idle reduces engine braking and will make excess band slippage more likley, and can interfere with proper low to high shifts. Drums that are worn, grooved, burned blue, or cracked will make driving more diffcult and will eat bands. Thick, dirty oil can contribute to band engagement problems.
-
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Question re band lining
Your foot decides the band life. Some drivers can wear out a vehicle by simply how they drive it. Just as true now as it was a 100+ years ago.
-
- Posts: 1554
- Joined: Sun Jan 06, 2019 12:16 pm
- First Name: Kim
- Last Name: Dobbins
- * REQUIRED* Type and Year of Model Ts owned: 1909 touring, 1910 touring, 1913 touring, 1916 couplet, 1925 roadster pickup.
- Location: Southern California
Re: Question re band lining
NRS and early 1909 cars used segmented linings from the factory. Just a bit of trivia.
-
Topic author - Posts: 1128
- Joined: Tue Jan 22, 2019 8:16 am
- First Name: Richard
- Last Name: Gould
- * REQUIRED* Type and Year of Model Ts owned: 1910 touring, 1912 roadster , 1927 roadster
- Location: Folsom, CA
Re: Question re band lining
My concern is mostly the chance of pulling a section of lining away from the band
-
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: Question re band lining
Some of the things that gave Ford grief in the first T's and changed designs to be successful for the next 15,000,000, 3 piece lining's per band, con rod dippers, X'ing babbitt and water pump.
