1912-1913 Hubcaps

Post by Darren J Wallace » Fri Apr 19, 2019 10:59 am

Were the "backgrounds" on the hubcaps for 1912 & 1913 painted black?
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars


Fire_chief
Posts: 53
Joined: Sun Jan 06, 2019 11:09 am
First Name: Charlie
Last Name: Gagel
Location: Orange, CT
MTFCA Number: 8377
MTFCA Life Member: YES
MTFCI Number: 22437

Re: 1912-1913 Hubcaps

Post by Fire_chief » Fri Apr 19, 2019 12:28 pm

'12 polished brass, '13, background painted black.

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Fri Apr 19, 2019 4:11 pm

Black oxidized

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Fri Apr 19, 2019 4:13 pm

How are the Canadian hubcaps from that era different from the US made cars?


Original Smith
Posts: 1184
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1912-1913 Hubcaps

Post by Original Smith » Fri Apr 19, 2019 9:51 pm

1912 and 1913 American hub caps are totally different. I would assume a Canadian hub cap looks like a 1912 American.

User avatar

Topic author
Darren J Wallace
Posts: 119
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1912-1913 Hubcaps

Post by Darren J Wallace » Sat Apr 20, 2019 10:34 am

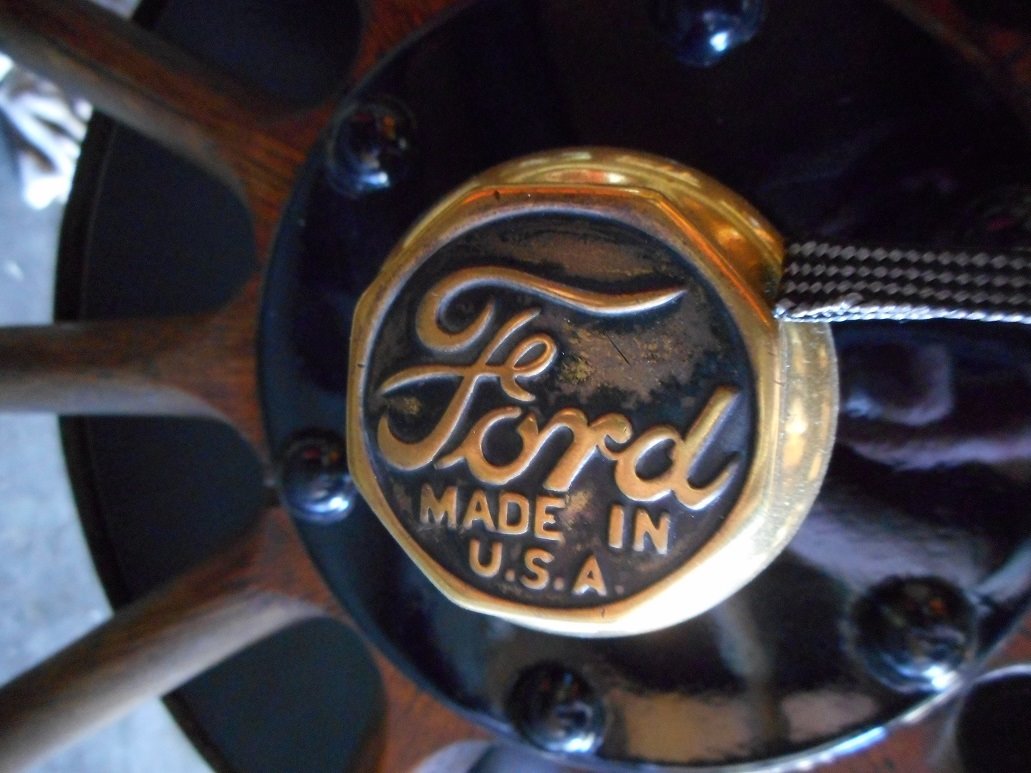

One of the hubcaps on my car.There is a raised edge around the front but it's very faded.
Attachments
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Sat Apr 20, 2019 1:01 pm

Darren-
That style came out in July, 1911, but most cars of that era still used the earlier style. I had these restored for my Oct-Nov 1911 car.
hubcaps restored 3 smaller.jpg
The background should (and will) be black oxidized. I suspect the hubcaps you have are correct for your car.

On April 16, 1912 (the day after the Titanic sunk) MADE IN USA was stamped beneath the Ford Script. (Has anyone ever seen one?)
On May 13, 1912 the MADE IN USA was embossed (raised), just like the script.


On May 7, 1914 the background was black enamel, instead of oxidized.

I have seen this type of hubcap, which I believe to be Canadian (since there is no MADE IN USA,) but could only guess on the year. The small script would lead me to believe late 1917. I have seen these nickel plated, too.
download/file.php?mode=view&id=12960&si ... 7504012300
hubcap sharp Canadian smaller.jpg
hubcap canadian nickle.jpg
hubcap canadian nickle.jpg (8.88 KiB) Viewed 2019 times
I have see nickel plated hubcaps with MADE IN CANADA, but they all have had the smaller script.
hubcap made in Canada.jpg
hubcap made in Canada.jpg (49.4 KiB) Viewed 2019 times
Hubcap Canadian curved.jpg
Hubcap Canadian curved.jpg (9.08 KiB) Viewed 2019 times
I have never seen a tall script hubcap with MADE IN CANADA. Has anyone? What hubcaps are on other Canadian cars 1913, 1914, 1915?

: ^ )

User avatar

Topic author
Darren J Wallace
Posts: 119
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1912-1913 Hubcaps

Post by Darren J Wallace » Sat Apr 20, 2019 1:33 pm

Very cool Keith! Thanks everyone for chiming in!
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars

User avatar

Fordfarm
Posts: 23
Joined: Sun Jan 06, 2019 11:07 am
First Name: Phil
Last Name: Mino
Location: near Porterville
MTFCA Number: 1599
Contact:

Re: 1912-1913 Hubcaps

Post by Fordfarm » Sat Apr 20, 2019 4:36 pm

That's very interesting, Keith. My Oct-Nov 1911 car has this type, believed to be originals.
.

User avatar

MikeSommers
Posts: 24
Joined: Sat Jan 19, 2019 4:34 am
First Name: Mike
Last Name: Sommers
Location: Liberty MO
MTFCA Number: 31711
MTFCI Number: 23889

Re: 1912-1913 Hubcaps

Post by MikeSommers » Sat Apr 20, 2019 4:58 pm

Please pardon my ignorance... but how would I go about applying this black oxide background to my hub caps? I looked online and all the methods I saw were dipping the part and turning everything black.

Any insights?

Thanks,
Mike

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Sat Apr 20, 2019 7:42 pm

Mike-
I have heard good reports about this product:

https://www.walmart.com/ip/BIRCHWOOD-CA ... Z/23237826

Here is the finish it leaves..
Casey Black brass.jpg
Casey Black brass.jpg (25.66 KiB) Viewed 1968 times
https://www.tested.com/art/makers/46430 ... or-part-5/

: ^ )

User avatar

Walter Higgins
Posts: 155
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: 1912-1913 Hubcaps

Post by Walter Higgins » Sat Apr 20, 2019 8:40 pm

To add another one to the discussion, last year I used Caswell's "Flemish Grey" with good results. It was tricky in that it was very particular about the soak time. Too long and it's like the black layer would get thick, flake off, and you were back to starting over with yellow brass. It wasn't difficult, you just had to pay attention and leave the, "if a little is good, more must be better" mentality at home.


Original Smith
Posts: 1184
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1912-1913 Hubcaps

Post by Original Smith » Sat Apr 20, 2019 9:55 pm

I spray can the center of the cap, and then remove as much of the paint from the script as possible. After it dries, I hand sand the script with very fine sandpaper. Been doing it for years.

User avatar

Retro54
Posts: 59
Joined: Sun Jan 06, 2019 4:40 pm
First Name: Andrew
Last Name: Blaydon
Location: Middletown
Board Member Since: 2018

Re: 1912-1913 Hubcaps

Post by Retro54 » Sat Apr 20, 2019 10:21 pm

Walter, those are nice results on your fasteners! I gotta remember this to apply to some repro hub caps which came with my 1915 cutdown.

Andy B.

User avatar

Topic author
Darren J Wallace
Posts: 119
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1912-1913 Hubcaps

Post by Darren J Wallace » Sun Apr 21, 2019 11:04 am

So I did this....two of the original hubcaps were very badly cracked so I got a couple of new ones and relegated the bad ones to the tool box....
Attachments
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars

User avatar

Topic author
Darren J Wallace
Posts: 119
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1912-1913 Hubcaps

Post by Darren J Wallace » Sun Apr 21, 2019 11:10 am

I used gloss black paint and a very tiny brush, then some 0000 steel wool to bring out a little better definition than my shaky hand would allow, and to give a sort of matte look you get like the anodizing gives. I need to correct all the little mistakes......
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Sun Apr 21, 2019 12:07 pm

Nice work, Darren. It is easy to spot the differences between the originals and the reproductions.

Phil, I don't know when the later style hubcaps started to appear on cars.
I don't know what came on my car from the factory because old Mr. Parkes had these on the car during the late 1920's:
accessory hubcap close old.jpg
Unfortunately there were not on the car when I got it.
However, I do have four of these:
accessory hubcap close new.jpg
Which are pretty close and would look kind of cool if they were brass plated.

Sorry about the thread drift, Darren.

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Sun Apr 28, 2019 11:34 am

I tried some Birchwood Casey Brass Black, but am not super impressed with the result:
Attachments

User avatar

KWTownsend
Posts: 357
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
Location: Gresham, Orygun
MTFCA Number: 14778
MTFCA Life Member: YES
MTFCI Number: 16305
Board Member Since: 1999

Re: 1912-1913 Hubcaps

Post by KWTownsend » Sun Apr 28, 2019 11:36 am



Rich Bingham
Posts: 911
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: 1912-1913 Hubcaps

Post by Rich Bingham » Mon Apr 29, 2019 9:38 am

They look good in the pix, Keith. What do you find lacking ?
"Get a horse !"


Original Smith
Posts: 1184
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1912-1913 Hubcaps

Post by Original Smith » Fri May 03, 2019 10:08 am

No one has posted photos of a true 1913 hub cap, which is slightly different than the '14 and later styles. So here is some photos!
Attachments
13 Cap3.JPG
13 Cap 4.JPG
