Help with a gas gauge question

Post by jerryltj » Mon Dec 12, 2022 9:04 pm

I just found an old gas tank gauge in my grandfather's garage, but can't quite figure out what model and year Ford it goes to. I came across this forum and thought it would be the perfect place to ask...Thanks in advance.
Pic3
Pic3
Pic2
Pic2
Pic1
Pic1
Top

jiminbartow
Posts: 2434
Joined: Sun Jan 06, 2019 10:55 pm
First Name: James
Last Name: Patrick
* REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
Location: Bartow, FL
Board Member Since: 2001

Re: Help with a gas gauge question

Post by jiminbartow » Mon Dec 12, 2022 9:59 pm

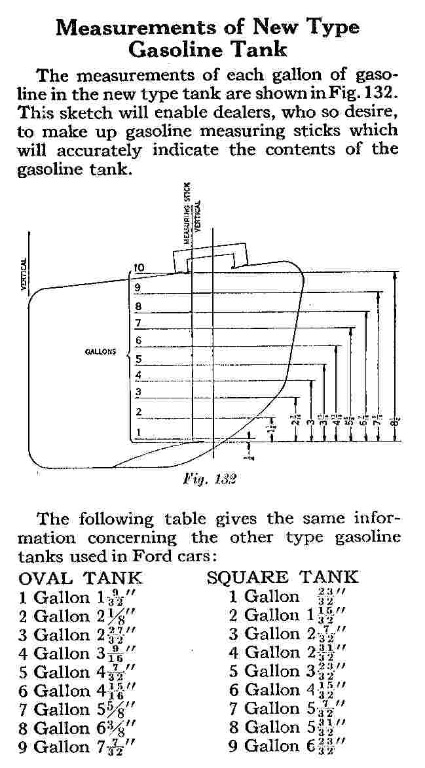

The attached diagram shows a drawing of the 1926 and 1927 cowl fuel tank located in the cowl above the driver’s legs. Below the drawing are measurements of the oval tank located under the seat of pre-1926 Model T’s. You can use the measurements to determine the year of your fuel gauge, but if I had to guess, I would guess your gauge is for the pre-1926 oval underseat tanks since the 1917 date is mentioned in the instructions. Jim Patrick

Top
User avatar

Steve Jelf
Posts: 7238
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Help with a gas gauge question

Post by Steve Jelf » Mon Dec 12, 2022 10:13 pm

Does the gauge have any instructions on how to use it with the various Ford tanks?
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

TMiller6
Posts: 278
Joined: Sun Jan 06, 2019 10:11 pm
First Name: Thomas
Last Name: Miller
* REQUIRED* Type and Year of Model Ts owned: 16, 24, 26 Touring - 26 Roadster and Fordor
Location: SE MI
Board Member Since: 2006

Re: Help with a gas gauge question

Post by TMiller6 » Mon Dec 12, 2022 10:25 pm

I don’t see how this gauge could be installed in a 26-7 cowl tank since there is a soldered gutter next to the filler neck. My vote is for oval tank use.
Tom Miller
One who cannot find beauty in an engine cannot find beauty in the universe.
Top

Scott_Conger
Posts: 6523
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
* REQUIRED* Type and Year of Model Ts owned: 1919
Location: not near anywhere, WY
Board Member Since: 2005

Re: Help with a gas gauge question

Post by Scott_Conger » Mon Dec 12, 2022 11:33 pm

This gauge fits 09-25 underseat gas tanks. Use as-is for oval tanks or remove the protective tape on the threads, and screw in deeper for the older round tank.

When all else fails, read the instructions... ;)
Scott Conger

Tyranny under the guise of law is still Tyranny

NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Top
User avatar

RajoRacer
Posts: 5174
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Help with a gas gauge question

Post by RajoRacer » Mon Dec 12, 2022 11:59 pm

I have that same gauge NOS in the box - I've not taken the instructions out to read Scott but I "assumed" mine is for the round tank - wouldn't read correct or fit in an oval.
Top

Allan
Posts: 6609
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
* REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
Location: Gawler, Australia

Re: Help with a gas gauge question

Post by Allan » Tue Dec 13, 2022 2:01 am

I have two of the Standex gauges. Each is marked on the dial, "round tank". An oval tank one would be shorter and the twist riser would have a different twist if they bothered.

Allan from down under.
Top
User avatar

A Whiteman
Posts: 1126
Joined: Sun Jan 06, 2019 3:36 pm
First Name: Adrian
Last Name: Whiteman
* REQUIRED* Type and Year of Model Ts owned: 1926 TT, 1923 Colonial Roadster, 1924 'Bullnose' Morris, 1925 'Bullnose' Morris, 1936 JD AR
Location: South Island, New Zealand

Re: Help with a gas gauge question

Post by A Whiteman » Tue Dec 13, 2022 4:21 am

Hi Jerry,

Thank you for posting your question.

To summarise the above comments: the gauge is for a Ford Model T car between 1909 and 1925. (At that time a 'Ford' car meant Ford Model T).

It will fit any model of the Model T, as they all used the same gas oval gas tank (very early cars used a 'round tank').

It may not fit a 'Center Door' model, as this had a different square gas tank, but then again, it might fit that as well as they all have the same threaded opening.

As to its value - I can't help there as value depends on demand. It could be anywhere from $10 to $50

I trust this answers your question.

Kind regards
Adrian Whiteman
Top

Topic author
jerryltj
Posts: 2
Joined: Mon Dec 12, 2022 8:47 pm
First Name: Jerry
Last Name: Towers
Location: Johnston, IA

Re: Help with a gas gauge question

Post by jerryltj » Tue Dec 13, 2022 1:30 pm

Thank you for all the quick replies and more importantly, the wealth of information. You guys have a good thing going here; kind of makes me wish I had an old Ford so I could be part of the club. Anyway, this does indeed help narrow things down for me. Thank you again
