Headlight mounting
I’m a new member of MTFCA and restoring a 24 Touring. I noticed the headlights are not semetrical in relation to the radiator. Can anyone tell me what can cause this and what I have to do to correct this?
-
Tim Rogers
- Posts: 387
- Joined: Sun Jan 06, 2019 11:04 am
- First Name: Tim
- Last Name: Rogers
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe & 1923 Runabout
- Location: South of the Adirondacks
- Board Member Since: 2013
Re: Headlight mounting
Harvey- it would help if you could post a picture of your situation. Something is probably bent or sagging due to age and abuse...
- light.JPG (12.06 KiB) Viewed 1103 times
<o><o><o><o> Tim Rogers - South of the Adirondacks - Forum member since 2013 <o><o><o><o>
-
Harvey Bergstrom
Topic author - Posts: 122
- Joined: Tue Dec 27, 2022 10:12 pm
- First Name: Harvey
- Last Name: Bergstrom
- * REQUIRED* Type and Year of Model Ts owned: 1924 Touring
- Location: Cayuga ND
Re: Headlight mounting
Thank you for the response Tim. I cannot post a photo at the moment, hope to get one for you.
-
Rich P. Bingham
- Posts: 1611
- Joined: Sun Feb 13, 2022 11:24 am
- First Name: Rich
- Last Name: Bingham
- Location: Blackfoot, Idaho
- Board Member Since: 2015
Re: Headlight mounting
No doubt something (s) are bent. The Model T "bible" shows a headlamp adjustment being performed with a substantial pry bar - the fender support iron may also be bent. A sagging front spring, bad shackles/perches may contribute to the appearance of mis-alignment. There are also differences in headlight buckets through production. Close examination may reveal you don't have a matched pair.
Get a horse !
-
rickd
- Posts: 474
- Joined: Sun Jan 06, 2019 12:56 pm
- First Name: Rick
- Last Name: Duquette
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring, 1914 Touring, 1925 Touring, 1927 PU, 1955 T Bird, 69 Shelby GT 350
- Location: Grand Forks, ND
- Board Member Since: 2015
Re: Headlight mounting

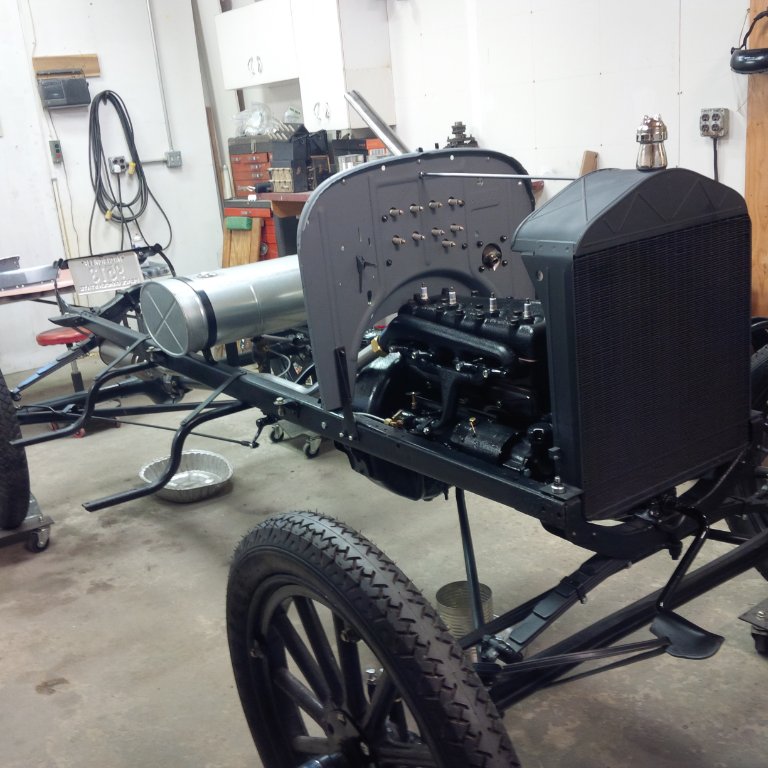

Welcome Harvey! Nice to see another ND guy on the site. I'm wrapping up a 25 Touring restoration and found that I had to shim the fender/light post brackets to get the headlights in line with each other. Your brackets could also be bent up as mentioned previously. In the posted pic the two holes in the frame below the radiator thimble is where I put in shims to better align the fender/light brackets. I used washers for the shimming. Feel free to contact me if you have any questions.
