Hi all,
I have a question about the shape of the fuel line for a 26-27 fuel line coming from the cowl tank. I've seen photos of this line bent in a "upside down backwards question mark". Is there a logic for having this shape? Is the reason to give the gas more surface area before entering the carb? Or keeping it away from the heat of the exhaust pipe? Or giving better access to the carb/choke area? Any thoughts?
Thanks,
John
26-27 fuel line curve
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: 26-27 fuel line curve
The larger radius allows it to gently bend & flex so vibration and engine to frame flex are less likely to break it.
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: 26-27 fuel line curve
There was no method to my madness. The tube was a little long so I gently bent it to fit. If there are any benefits to the bend I used, it was strictly accidental. Jim Patrick
-
Ken Buhler
- Posts: 515
- Joined: Mon Jan 21, 2019 4:14 pm
- First Name: Ken
- Last Name: Buhler
- * REQUIRED* Type and Year of Model Ts owned: 1927 Roadster 1927 Coupe
- Location: Kelowna B.C.
- Board Member Since: 2012
Re: 26-27 fuel line curve
John,
These are two originals. They are made of rolled flat material that is then soldered.
These are two originals. They are made of rolled flat material that is then soldered.
Work honestly
Stay true to your word
Get the job done right
Stay true to your word
Get the job done right
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: 26-27 fuel line curve
Jim, That is pretty close…
Here’s how it is supposed to look:
Here’s how it is supposed to look:
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: 26-27 fuel line curve
Looks right on to me. I can remember I had a 1926 way back that I put a NOS original on.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: 26-27 fuel line curve

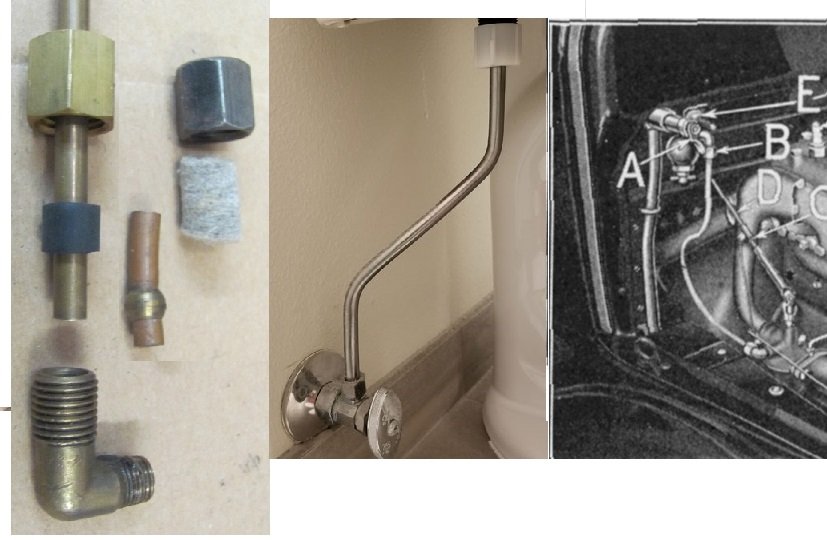

If you've ever replaced the supply line to your sink or toilet you realized that the supply line needs to go straight into the fitting for a good seal. As stated above the original lines were rolled and soldered and sharp bends could split or kink the line when attaching both ends. The question mark bend is a result of making it easier to insert the line into the fittings. Also as Adam stated it gives some flex from vibrations keeping the line straight into the fitting.
- Attachments
-
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Mark Nunn
- Posts: 1241
- Joined: Mon Jan 07, 2019 8:01 am
- First Name: Mark
- Last Name: Nunn
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: Bennington, NE
- Board Member Since: 2017
Re: 26-27 fuel line curve
I found a drawing on this forum or one of our suppliers' websites that showed the factory dimensions. That was a few years ago and don't have it now. I search may locate the drawing.
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: 26-27 fuel line curve

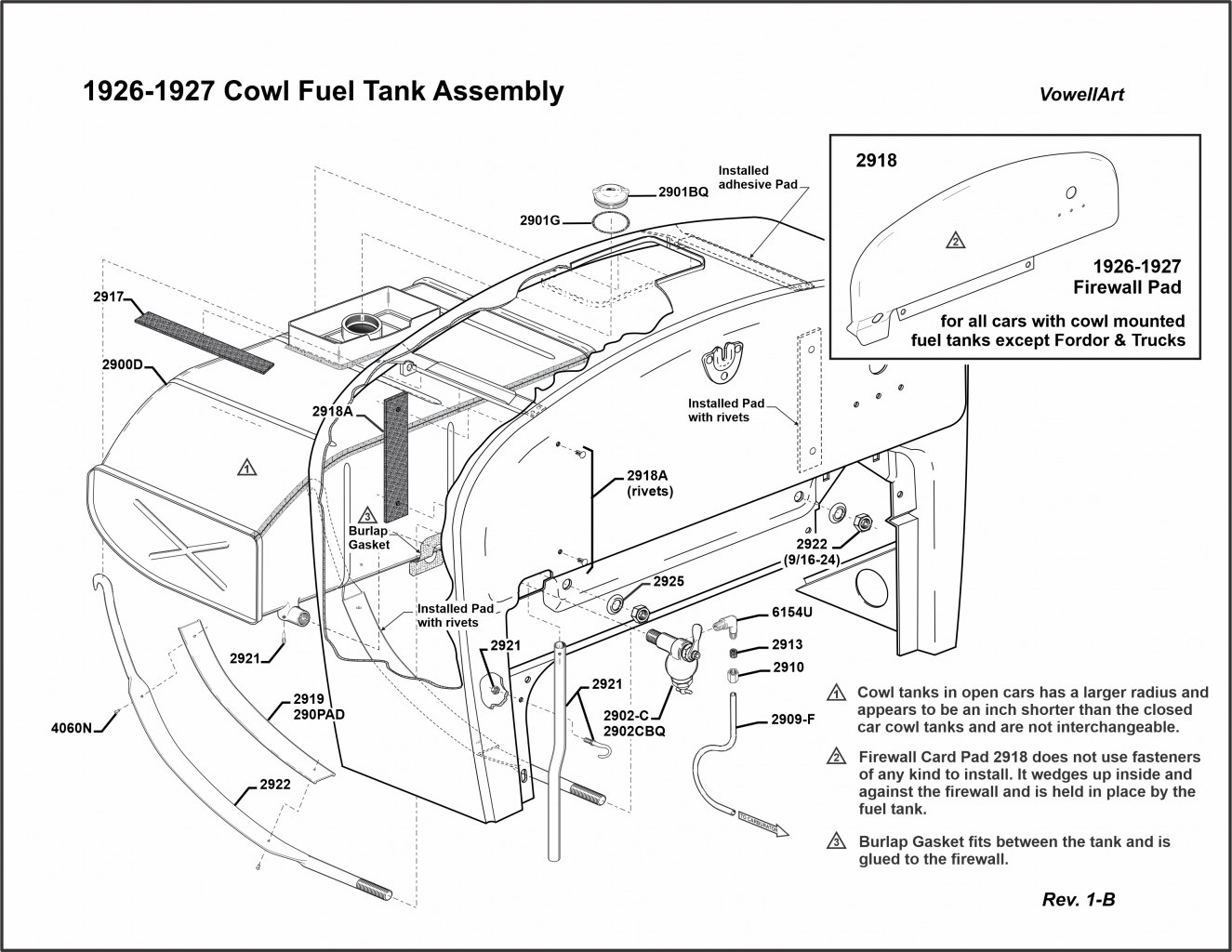

My picture was taken from above so the bend looks sharper than it is. When viewed from the side, it looks just like the one in Fig. 561 and the two originals posted by Ken. A happy accident. When I bought the car the tube was bent into a loop. Jim Patrick
