Stevens T-180 Generator Gear Puller

Post by namdc3 » Thu Dec 07, 2023 8:15 pm

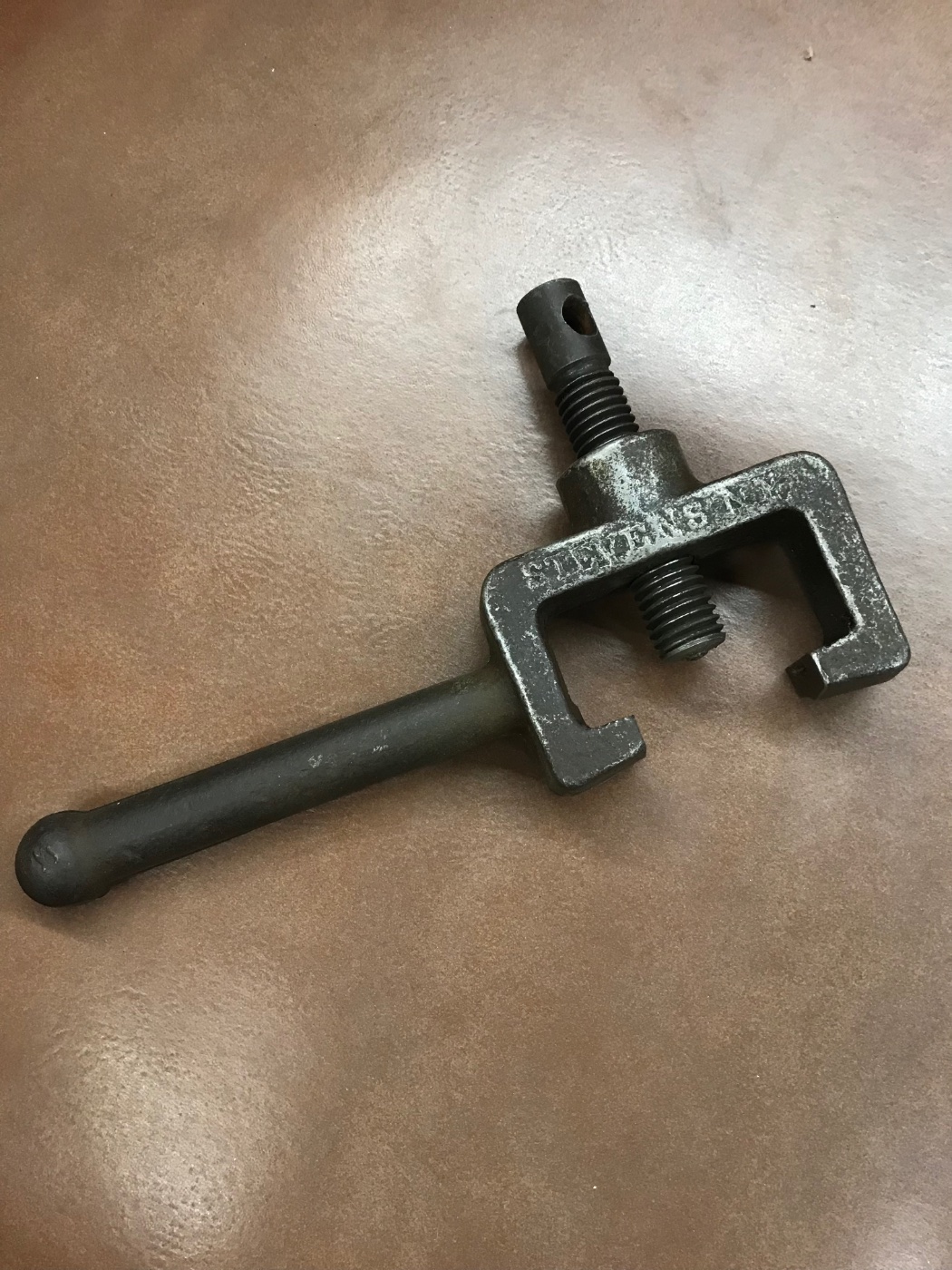

I picked up this puller, which is missing the stand and handle/punch. Could anyone with a good one measure exact dimensions of the punch so that I get it right? Thank you.
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Thu Dec 07, 2023 10:17 pm

I've been collecting Stevens tools for 30 + years - never have had the pleasure of finding the Stevens stand - I have a copy of the Allen holder. I have the puller & will measure my handle for you.
Attachments
Stevens kit 3.JPG
Top
User avatar

Topic author
namdc3
Posts: 381
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City

Re: Stevens T-180 Generator Gear Puller

Post by namdc3 » Thu Dec 07, 2023 10:44 pm

Thanks! It doesn’t look like there is a handle/punch in the one in the box either! Out of curiosity, what tool has the Hassler arm been turned into?
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Fri Dec 08, 2023 10:59 am

The handle's in the top tray - I turned the Hassler arm into a peining jig for the gear pin.
Attachments
Stevens kit 2 (2).JPG
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Fri Dec 08, 2023 4:03 pm

Mine measures 0.310 in diameter - 4.50" in length - knurling is 1/2" wide & 2" from either end.
Top
User avatar

Topic author
namdc3
Posts: 381
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City

Re: Stevens T-180 Generator Gear Puller

Post by namdc3 » Fri Dec 08, 2023 5:12 pm

Thanks, that’s interesting. The one in the catalog has a punch for the gear pin built in. Maybe they figured out this was a clumsy setup, or maybe yours lost its original too. My handle hole is 5/16”. There is a square dent like some locknuts have, presumably to create an interference fit for the punch.
Last edited by namdc3 on Fri Dec 08, 2023 8:56 pm, edited 2 times in total.
Top
User avatar

Ed Fuller
Posts: 786
Joined: Mon Jan 07, 2019 10:06 pm
First Name: Ed
Last Name: Fuller
Location: NJ
Board Member Since: 2012

Re: Stevens T-180 Generator Gear Puller

Post by Ed Fuller » Fri Dec 08, 2023 5:14 pm

Wow Steve! You have all of the coolest toys….I mean tools!
Top
User avatar

Topic author
namdc3
Posts: 381
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City

Re: Stevens T-180 Generator Gear Puller

Post by namdc3 » Fri Dec 08, 2023 5:25 pm

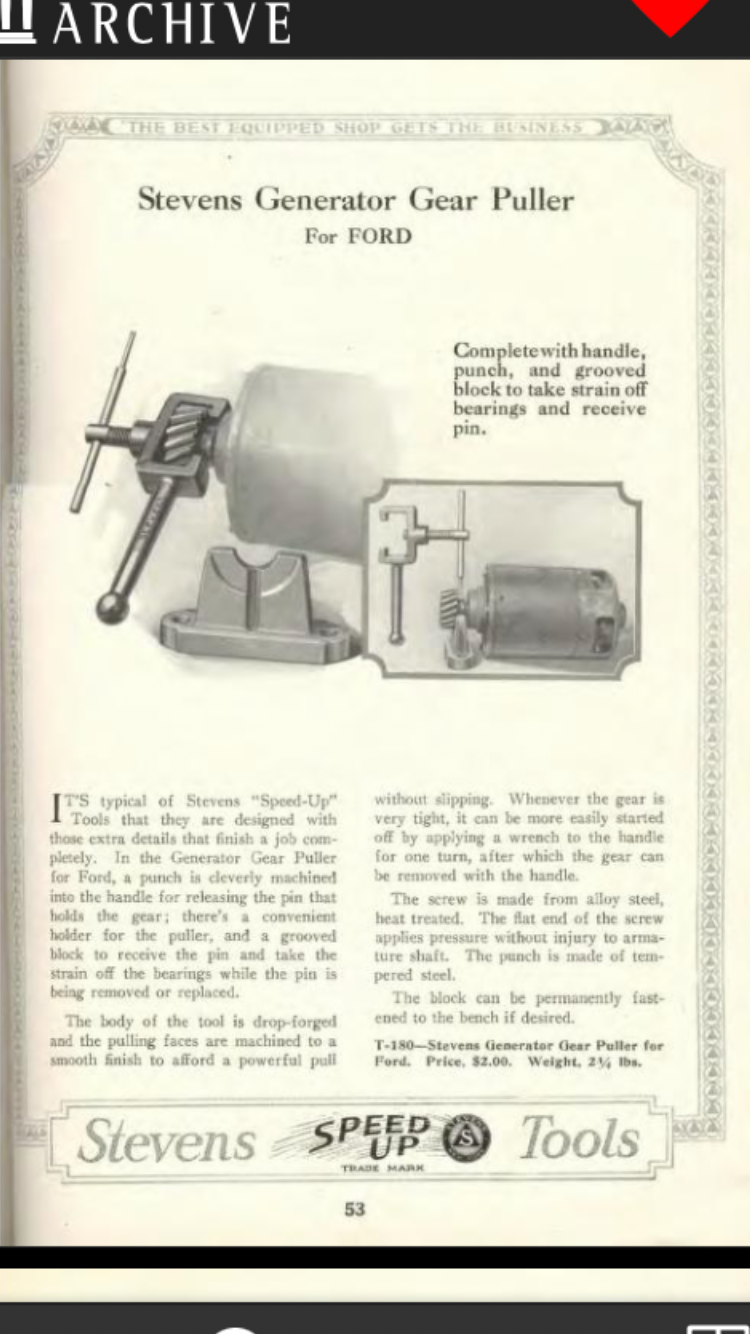

Here’s the only one I found online, and it appears to have the reduced-diameter punch part broken off at right.
Top
User avatar

JH1427
Posts: 101
Joined: Mon Jan 07, 2019 8:26 am
First Name: Jerome
Last Name: Hoffman
* REQUIRED* Type and Year of Model Ts owned: 1924 Touring, 1924 Roadster, 1923 Speedster, 1923 Racer, 1921 TT Wood Cab
Location: Hays, Kansas USA
MTFCA Life Member: YES
Board Member Since: 1999

Re: Stevens T-180 Generator Gear Puller

Post by JH1427 » Fri Dec 08, 2023 6:12 pm

When I picked up mine, it was also missing the punch. Had I seen this ad first, I would have better understood that it did not need a handle. A post with a picture and some dimensions would be great if anyone has the punch. J
model_t@swbell.net
Projects: 1916 Speedster - Dec 15', 1921 TT Wood Cab and Bed, 1923 Racer ( My dad's), 1923 Speedster (started in HS)
1924 Roadster - Dec 23' (eBay) and 1924 Touring - June 24' ( Dad's Car been in the family since 1948)
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Fri Dec 08, 2023 7:33 pm

I did not notice the "punch" end in the catalog illustration - I'll look mine over again but ?
Top

TrentB
Posts: 205
Joined: Wed Jan 09, 2019 12:19 am
First Name: Trent
Last Name: Boggess
Location: New Hampshire

Re: Stevens T-180 Generator Gear Puller

Post by TrentB » Fri Dec 08, 2023 7:51 pm

This is a NOS Stevens T-180 I found at Hershey this year:
Respectfully Submitted,

TrentB
Top
User avatar

Topic author
namdc3
Posts: 381
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City

Re: Stevens T-180 Generator Gear Puller

Post by namdc3 » Fri Dec 08, 2023 8:04 pm

Wow! Could you give us the two diameters and two lengths?
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Fri Dec 08, 2023 8:44 pm

Nice score Trent !!! First Stevens base I've seen.
Top

TrentB
Posts: 205
Joined: Wed Jan 09, 2019 12:19 am
First Name: Trent
Last Name: Boggess
Location: New Hampshire

Re: Stevens T-180 Generator Gear Puller

Post by TrentB » Fri Dec 08, 2023 8:49 pm

Certainly.

The overall length is 5.525 inches.

The major diameter is .328 and is about 4.440 inches long.

The minor diameter is .162 and about 1.112 inches long.

The lengths of the major and minor diameters do not quite add up to 5.525 inches because of the transition from the minor to major diameters.

Respectfully Submitted,

TrentB
Top
User avatar

Topic author
namdc3
Posts: 381
Joined: Sun Jan 06, 2019 4:15 pm
First Name: Nikolaus
Last Name: Martin
Location: Kansas City

Re: Stevens T-180 Generator Gear Puller

Post by namdc3 » Fri Dec 08, 2023 8:56 pm

Thanks! That’s really helpful.
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Stevens T-180 Generator Gear Puller

Post by RajoRacer » Fri Dec 08, 2023 10:43 pm

Trent - is the handle/pin driver removable from the body ?
Top

KeithG
Posts: 722
Joined: Thu Jan 03, 2019 3:00 pm
First Name: Keith
Last Name: Gumbinger
* REQUIRED* Type and Year of Model Ts owned: '14 Touring, '26 RPU, '27 Fordor, '27 Touring
Location: Kenosha, WI
MTFCA Life Member: YES
Board Member Since: 1999

Re: Stevens T-180 Generator Gear Puller

Post by KeithG » Fri Dec 08, 2023 11:03 pm

Trent, You lucky dog!!!! :)

Keith
'14 Touring, '26 Roadster Pickup, '27 Fordor, '27 Touring
Motto: It's hard to build a garage that's tooooo big! :D
Top
