Stiff Speedometer head

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules

Topic author
Windsor
Posts: 5
Joined: Thu Apr 11, 2019 9:11 pm
First Name: Mike
Last Name: Windsor
Location: Gravenhurst, Ontario, Canada
MTFCI Number: 22117
Board Member Since: 2010

Stiff Speedometer head

Post by Windsor » Fri Jun 28, 2019 11:21 am

I have a Stewart speedometer that looks like it's in pretty decent shape . When I try to turn the input shaft it is very tight . I can't turn it with my fingers , but it turns with a screwdriver . ---Any ideas on the best aproach ?[image][/image]
Attachments
2019-06-28 10.03.42.jpg
2019-06-28 10.03.22.jpg


Dropacent
Posts: 723
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: Stiff Speedometer head

Post by Dropacent » Fri Jun 28, 2019 11:33 am

Mike, more good speedo heads have been destroyed doing just that. 100 year old grease can harden and really gum up the works.Sometimes the white metal parts swell up a bit, and need some tune up help. Find a local competent watch or clock repairman to go through it, or send it to one of the speedometer specialists out there. Russ Furstnow is well renowned. If you are real handy, it can be a fun doityourself job, too. Good luck, looks like a great head.


otrcman
Posts: 98
Joined: Sun Jan 06, 2019 2:25 pm
First Name: Dick
Last Name: Fischer
Location: Arroyo Grande, CA

Re: Stiff Speedometer head

Post by otrcman » Fri Jun 28, 2019 11:35 am

Mike,

It's not uncommon for mechanical instrument grease to "congeal" after so many years. If nothing is broken, a competent spedometer repairman can clean and re-lube the speedometer and it will work for many years.

There are several good people doing Model T speedometers. I don't have a list of names, but Russ Furstnow comes to mind. He's well known for doing first class work.

One last thing: I'd suggest that you not turn the speedometer in its current condition. The gears in the unit are usually very soft metal and you can break them in a heartbeat.

Dick


Russ T Fender
Posts: 103
Joined: Sun Jan 06, 2019 5:39 pm
First Name: Val
Last Name: Soupios
Location: Jupiter Florida

Re: Stiff Speedometer head

Post by Russ T Fender » Fri Jun 28, 2019 1:06 pm

My approach is to send them to Russ Furstnow. I have been running speedometers serviced by Russ without issue for more years than I care to admit.


Topic author
Windsor
Posts: 5
Joined: Thu Apr 11, 2019 9:11 pm
First Name: Mike
Last Name: Windsor
Location: Gravenhurst, Ontario, Canada
MTFCI Number: 22117
Board Member Since: 2010

Re: Stiff Speedometer head

Post by Windsor » Sat Jun 29, 2019 9:15 am

I talked to Russ , and I have his book . very Knowledgable guy . I'm trying it myself , and have determined that the white metal has grown tight on the drive shaft . I'm at a pause as I try and figure out how to remove the drive shaft from the magnetic drum . Russ's price seemed very reasonable , I'm doing it for the challenge . ---It still may wind up in a box in the mail .


Original Smith
Posts: 942
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Stiff Speedometer head

Post by Original Smith » Sat Jun 29, 2019 9:20 am

That is one of the finest '13 speedometers I've ever seen. Don't mess it up please!


Topic author
Windsor
Posts: 5
Joined: Thu Apr 11, 2019 9:11 pm
First Name: Mike
Last Name: Windsor
Location: Gravenhurst, Ontario, Canada
MTFCI Number: 22117
Board Member Since: 2010

Re: Stiff Speedometer head

Post by Windsor » Sat Jun 29, 2019 10:04 am

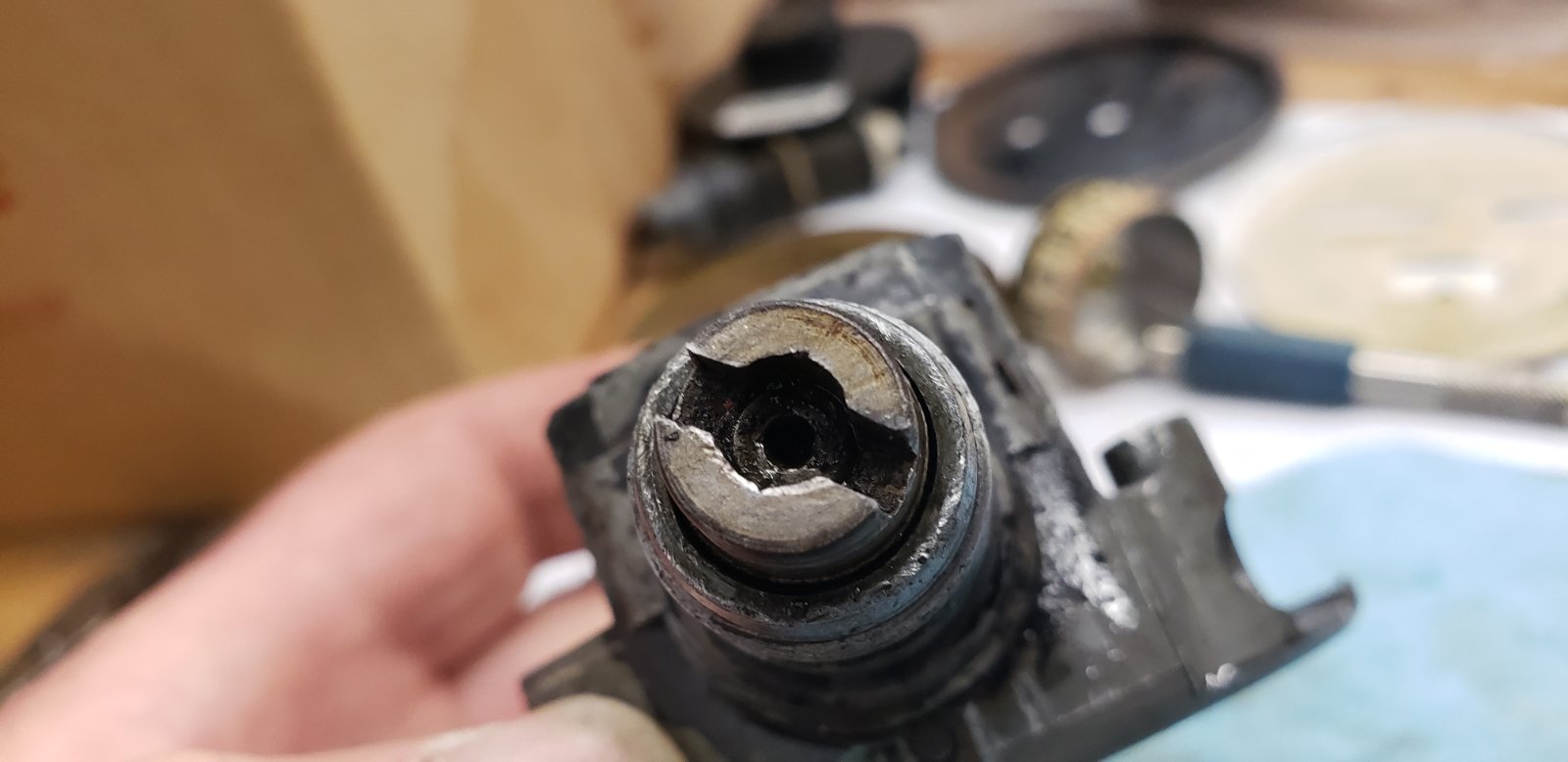

[image][/image]I've got it down to the point where the shaft has to be taken out of the white metal casting so that I can hone the casting . just not sure if the shaft can be tapped up ? or if it has to come out of the drum and go down ?
Attachments
2019-06-29 09.47.59.jpg
2019-06-29 09.35.11.jpg
2019-06-29 09.41.05-1.jpg

User avatar

BobD
Posts: 149
Joined: Sun Jan 06, 2019 3:08 pm
First Name: Bob
Last Name: Doris
Location: Prescott, Arizona
MTFCA Number: 32538
Board Member Since: 2017

Re: Stiff Speedometer head

Post by BobD » Sat Jun 29, 2019 11:17 am

Careful removal of the wedge pin (red arrow) should enable removal of shaft. Wedge pin is only removable in one direction. One must determine which is the small and large ends of the pin.


Dropacent
Posts: 723
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: Stiff Speedometer head

Post by Dropacent » Sat Jun 29, 2019 11:31 am

Way to go, Mike. These things are all fixable, and not computer science. Carbs, starters, generators, speedometers etc,etc Love the person who isn’t afraid to do it themselves !!


Topic author
Windsor
Posts: 5
Joined: Thu Apr 11, 2019 9:11 pm
First Name: Mike
Last Name: Windsor
Location: Gravenhurst, Ontario, Canada
MTFCI Number: 22117
Board Member Since: 2010

Re: Stiff Speedometer head

Post by Windsor » Sat Jun 29, 2019 1:44 pm

Interesting Tim that mine didn't have the pin . I wound up using a small punch to tap the shaft out of the drive dog . I think that there just wasn't enough end float in the drive shaft . everything turns freely now , but the speed drum seems to be sticking .
Attachments
2019-06-29 11.14.33.jpg
2019-06-29 11.19.42.jpg
