I’m trying to adjust my horn, it has stopped blowing.
In the past, a simple turning of the screw in the rear , would bring it back.
Not this time,
Please note the horn manufacturer, in the photos.
George
Elkhorn, Nebraska
Horn adjustment
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Unprr
Topic author - Posts: 290
- Joined: Mon Jan 07, 2019 9:20 pm
- First Name: George
- Last Name: Schmidt
- * REQUIRED* Type and Year of Model Ts owned: 1927 coupe, 1924 Model T pickup
- Location: Elkhorn
Horn adjustment
- Attachments
-
-
Tadpole
- Posts: 596
- Joined: Wed Jul 28, 2021 7:17 am
- First Name: Tad
- Last Name: Glahn
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 TT Closed Cab, 2 1924 Runabouts, 1927 Tudor
- Location: Grant's Lick, Kentucky
- Board Member Since: 2021
Re: Horn adjustment
Back it off and lube it with a light lubricant like 3 in one. See if you can get the armature to spin freely without engaging the diaphragm then turn the screw in until it blows.
-
Tadpole
- Posts: 596
- Joined: Wed Jul 28, 2021 7:17 am
- First Name: Tad
- Last Name: Glahn
- * REQUIRED* Type and Year of Model Ts owned: 1925 Coupe, 1926 TT Closed Cab, 2 1924 Runabouts, 1927 Tudor
- Location: Grant's Lick, Kentucky
- Board Member Since: 2021
Re: Horn adjustment
Would do good to clean the contacts while you have the cover off to oil the shaft.
-
Allan
- Posts: 6904
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Horn adjustment
It's funny how we get stuck with things. Bulb horns actually were blown by the air sqeezed out by compressing the air in the bulb. Later horns don't "blow "at all.
Motor driven horns make their racket by driving a notched stem against a similarly notched boss on a diaphragm, that racket being amplified by the horn bell.
If the motor works it is a matter of adjusting the load on the two mechanical parts until they produce the desired noise.
Allan from down under.
Motor driven horns make their racket by driving a notched stem against a similarly notched boss on a diaphragm, that racket being amplified by the horn bell.
If the motor works it is a matter of adjusting the load on the two mechanical parts until they produce the desired noise.
Allan from down under.
-
DanTreace
- Posts: 3950
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: '23 cutoff pickup, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Horn adjustment
Double check power and ground. Could be battery voltage too low.

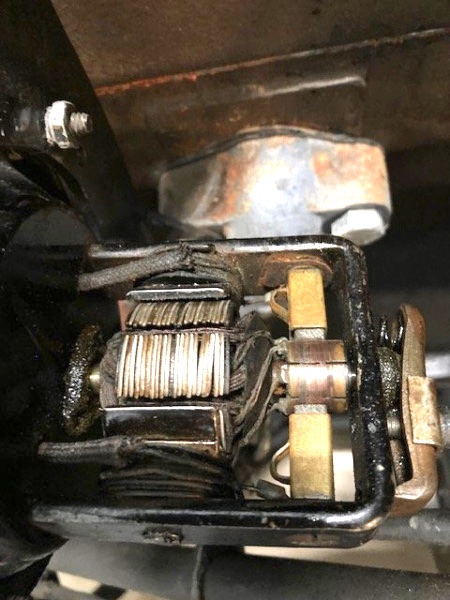

The insides are most the same for motor horns, you may have to oil some spots; or clean the armature where the brushes contact, should be bright. No oil should be there either.

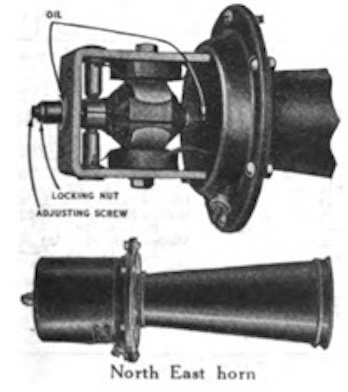

Adjusting is with the screw to place force on the gear to rub the diaphragm.
- Image 7-8-21 at 4.25 PM.jpeg (37.61 KiB) Viewed 7 times
- aoggha horn 6v.jpeg (91.01 KiB) Viewed 7 times
