I need to find some valves for a Roof Liberty Overhead. The valve deminsion are the following
Head diameter-1.685”
Stem diameter- .308
Length- 5.839
My other question is what the valve grind? Is the grind similar to what you would grind on model t
Thanks
Fitz
Roof overhead
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
frontyboy
- Posts: 463
- Joined: Tue Jul 23, 2019 3:16 pm
- First Name: dick
- Last Name: dock
- * REQUIRED* Type and Year of Model Ts owned: T sprint cars
- Location: locchoy wa
Re: Roof overhead

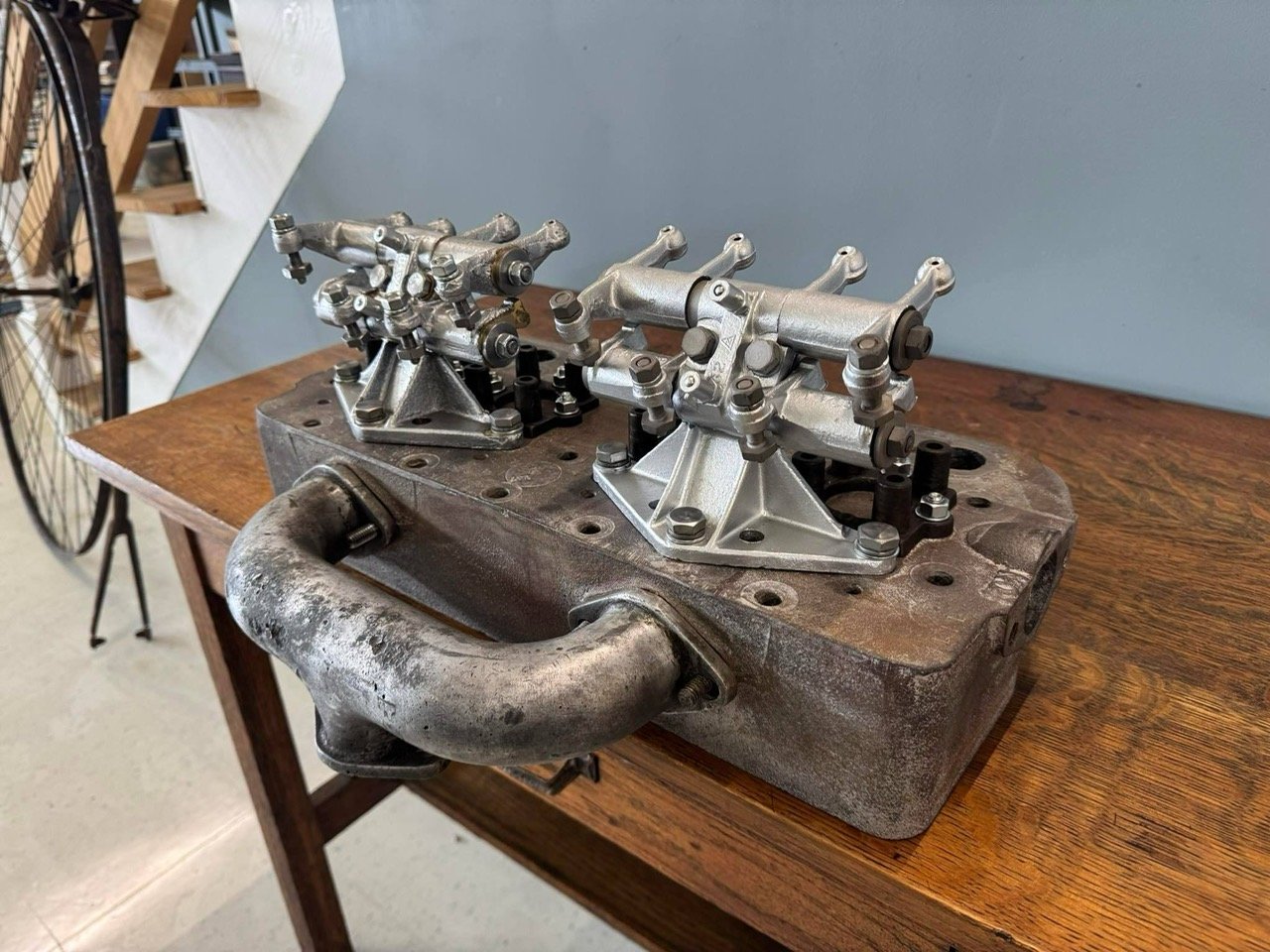

I have a Roof 8 valve and I can drop a valve and check the degree of the valve face and the degree of the seat. If that would help you. My head is just sitting on the shelf ready to install on my engine when I get to it. Do you have an exhaust manifold, I may not use mine haven't made up my mind yet.
just sayin
frontyboy.
just sayin
frontyboy.
-
AndreFordT
- Posts: 546
- Joined: Sun Jan 06, 2019 12:25 pm
- First Name: Andre
- Last Name: Valkenaers
- * REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
- Location: Scherpenheuvel
Re: Roof overhead
The 16 valves Roof I have here takes standard model T valves, just not 8 but 16.
I don't know for the 8 valves Roof.
Andre
Belgium
I don't know for the 8 valves Roof.
Andre
Belgium
- Attachments
-
-
-
Gary_in_MN
- Posts: 95
- Joined: Wed Jan 23, 2019 9:18 am
- First Name: Gary
- Last Name: Anderson
- * REQUIRED* Type and Year of Model Ts owned: 1927 Roadster/ Depaul OHV
- Location: St. Paul MN
-
tman1913
- Posts: 74
- Joined: Sun Jan 06, 2019 12:30 pm
- First Name: Mike
- Last Name: Bender
- * REQUIRED* Type and Year of Model Ts owned: 1913 Canadian touring, 1924 Roadster, 1926 Mercury speedster, 1927 Roadster p/u, 1920’s bobtail dirt track racer
- Location: Tulsa OK
Re: Roof overhead
SBI has PDF,s you can download. You have some dimensions and should find something that will work. Nothing special about a valve angle grind.
-
Dan McEachern
- Posts: 1462
- Joined: Sun Jan 06, 2019 11:08 am
- First Name: DAN
- Last Name: MCEACHERN
- * REQUIRED* Type and Year of Model Ts owned: too many. '14 touring, 2 depot hacks, 2 speedsters
- Location: ALAMEDA,CA,USA
Re: Roof overhead
Biggest issue will be finding an off the shelf exhaust valve with a stem that long. Many engines like small block Chevrolet have valve stems just over 5" long.
Chevrolet 216 qnd 235 ci engines had a long stem that can be cut down if the head diameters are close. Also at one time Egge Machine had valve blanks available. Shortening valve stems and turning down valve heads is something that you may have to do if you find a valve to modify.
Chevrolet 216 qnd 235 ci engines had a long stem that can be cut down if the head diameters are close. Also at one time Egge Machine had valve blanks available. Shortening valve stems and turning down valve heads is something that you may have to do if you find a valve to modify.
-
Kevin Pharis
- Posts: 1631
- Joined: Thu Jan 10, 2019 3:54 pm
- First Name: Kevin
- Last Name: Pharis
- Location: Sacramento CA
- Contact:
Re: Roof overhead
Manley Valve has a custom order option. Won’t be cheap, but they’ll be right
-
Mark Gregush
- Posts: 5468
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Roof overhead
If you can get ahold of an automotive engine valve catalog you could spend some time looking for something that matches. You could go with a larger diameter head and have it cut down along with longer stem.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
