Best, Easiest standard transmission conversion for 27 T

Post by Michael Davis » Mon Sep 09, 2019 4:53 pm

Hey guys What would you recommend for the conversion of a floor 3 speed transmission to put behind a 27 T engine.

Thanks Mike


wayne sheldon
Posts: 1087
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Best, Easiest standard transmission conversion for 27 T

Post by wayne sheldon » Mon Sep 09, 2019 6:16 pm

Talk to Mark F at Model T Haven, and bring a fat checkbook. I know he had a Himico transmission/engine made back in the day for a model T. I don't know if he still has it?
Chevrolet transmissions can be adapted to fit in behind the model T's planetary more easily than most others because the U-joint and four-bolt bell coupler is fairly compatible with the model T's. I have heard (but not seen) of Chevy transmissions from the late '30s being used because they have syncromesh on second and high gears.
I have never considered that a very good arrangement because you still have to use the model T's clutch which I love in a model T, however it is problematic for pure clutch usage (removing the bands would help with the use of the clutch?). Personally, I like using a model T planetary with a Warford or Muncie behind!
A full clutch, flywheel, and transmission conversion properly done would cost a BUNCH! (Don't forget oiling!)

User avatar

jsaylor
Posts: 50
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
Location: Citrus Heights, Ca
MTFCA Number: 1695
MTFCI Number: 23870
Board Member Since: 1999

Re: Best, Easiest standard transmission conversion for 27 T

Post by jsaylor » Mon Sep 09, 2019 6:55 pm

Easiest and the most sanitary and still look original would be a Ruckstell. Easy to shift and you effectively have 4 speeds forward and 2 reverse. Add a foot throttle and you can shift all 4 with ease. But with any auxiliary, you will need good brakes on the rear axle.


Les Schubert
Posts: 315
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Best, Easiest standard transmission conversion for 27 T

Post by Les Schubert » Mon Sep 09, 2019 7:14 pm

Mike
In my case I got really lucky and found a original era bolt in transmission conversion that replaced the original transmission and hogshead with a 3 speed sliding version built in Canada


Allan
Posts: 794
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Best, Easiest standard transmission conversion for 27 T

Post by Allan » Mon Sep 09, 2019 7:26 pm

In my opinion, there is not an easier to fit, more satisfactory result and wonderfully easily operated transmission them a Layne Warford style auxilliary gearbox. These give excellent results, and you can still drive the T exactly as is standard if that is what you like to do.

Allan from down under.

User avatar

thom
Posts: 138
Joined: Mon Jan 14, 2019 4:48 pm
First Name: Tommy
Last Name: Coffey
Location: western NC

Re: Best, Easiest standard transmission conversion for 27 T

Post by thom » Mon Sep 09, 2019 8:02 pm

Why???? :?:


Rich Bingham
Posts: 753
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Best, Easiest standard transmission conversion for 27 T

Post by Rich Bingham » Mon Sep 09, 2019 8:15 pm

The simplest, cheapest and most trouble free conversion would be to swap your Model T for a '27 Cheby. :roll:
"Get a horse !"

User avatar

Mark Gregush
Posts: 1299
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Best, Easiest standard transmission conversion for 27 T

Post by Mark Gregush » Mon Sep 09, 2019 8:41 pm

None in my OP are EASY to install, but something like a Jumbo that has 3 speeds and reverse. You however would still be working with a wet disk clutch even if you removed the low and reverse bands. Ford may have kept the disk clutch in the early A's, but it was dry disk.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup


Allan
Posts: 794
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Best, Easiest standard transmission conversion for 27 T

Post by Allan » Tue Sep 10, 2019 6:12 am

Rich, whoever heard of a trouble free 27 Chebby?
The wet clutch is not a problem to Layne style Warford. You just haul on the lever and it will change without using the clutch. A foot throttle helps to match the engine revs, but is not essential.
Why? When I built my extended chassis 1917 shooting brake which can carry 8 adults, it features a rather heavy solid timber body. The Layne gearbox allows me to get off the mark easily, with no lugging in top gear. It drives just like a 3 speed. When it is rolling under favourable conditions, it can certainly take advantage of the overdrive gear.

Allan from down under.


Rich Bingham
Posts: 753
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Best, Easiest standard transmission conversion for 27 T

Post by Rich Bingham » Tue Sep 10, 2019 10:38 am

Allan, I didn't mean the Cheby would be trouble-free. Just the "conversion" ! :lol:
"Get a horse !"


Original Smith
Posts: 949
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Best, Easiest standard transmission conversion for 27 T

Post by Original Smith » Tue Sep 10, 2019 10:53 am

If you knew the trouble that would cause you, you might want to consider leaving it alone. Been there, done that.


Les Schubert
Posts: 315
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Best, Easiest standard transmission conversion for 27 T

Post by Les Schubert » Tue Sep 10, 2019 2:00 pm

Now IF he was looking for a 4 speed or a automatic then I could offer some true insight into some solutions. A Volvo 4 speed can be bolted in the same space that a Warford takes. 4 speed all synchro!! Or 4 or 5 speed from a Mustang 2. Drive line gets a bit more complicated


Topic author
Michael Davis
Posts: 193
Joined: Fri Jul 26, 2019 8:18 pm
First Name: Michael
Last Name: Davis
Location: Montrose CO

Re: Best, Easiest standard transmission conversion for 27 T

Post by Michael Davis » Tue Sep 10, 2019 7:44 pm

WOW Thanks everyone. I will just leave it alone.

Mike


Henry K. Lee
Posts: 1561
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Best, Easiest standard transmission conversion for 27 T

Post by Henry K. Lee » Tue Sep 10, 2019 8:10 pm

Complicated Les says...., Les, THERAPY!!

Hank


Les Schubert
Posts: 315
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Best, Easiest standard transmission conversion for 27 T

Post by Les Schubert » Tue Sep 10, 2019 8:15 pm

Absolutely right Hank!!


Henry K. Lee
Posts: 1561
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Best, Easiest standard transmission conversion for 27 T

Post by Henry K. Lee » Tue Sep 10, 2019 8:16 pm

FUN, FUN, FUN, Les! You started this with me.., Dr Les, Therapist!



Hank


tdumas
Posts: 67
Joined: Mon Jan 07, 2019 9:45 pm
First Name: Ted
Last Name: Dumas
Location: Dallas, TX
MTFCI Number: 20999

Re: Best, Easiest standard transmission conversion for 27 T

Post by tdumas » Tue Sep 10, 2019 8:16 pm

Hank,

You had some Chevrolet transmissions for sale that were modified to fit the T driveline. Maybe he could use one.


Henry K. Lee
Posts: 1561
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN

Re: Best, Easiest standard transmission conversion for 27 T

Post by Henry K. Lee » Tue Sep 10, 2019 8:20 pm

Ted,

You have to do modifications to the torque tube, install accessory brakes, etc. Works excellent but comes with $$$$ spent and time. Just saying. Thank You though.

Hank

User avatar

thom
Posts: 138
Joined: Mon Jan 14, 2019 4:48 pm
First Name: Tommy
Last Name: Coffey
Location: western NC

Re: Best, Easiest standard transmission conversion for 27 T

Post by thom » Tue Sep 10, 2019 8:31 pm

Good decision to leave it alone, Mike. Stick to your decision. You'll be happier in the long run.


Les Schubert
Posts: 315
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Best, Easiest standard transmission conversion for 27 T

Post by Les Schubert » Tue Sep 10, 2019 8:49 pm

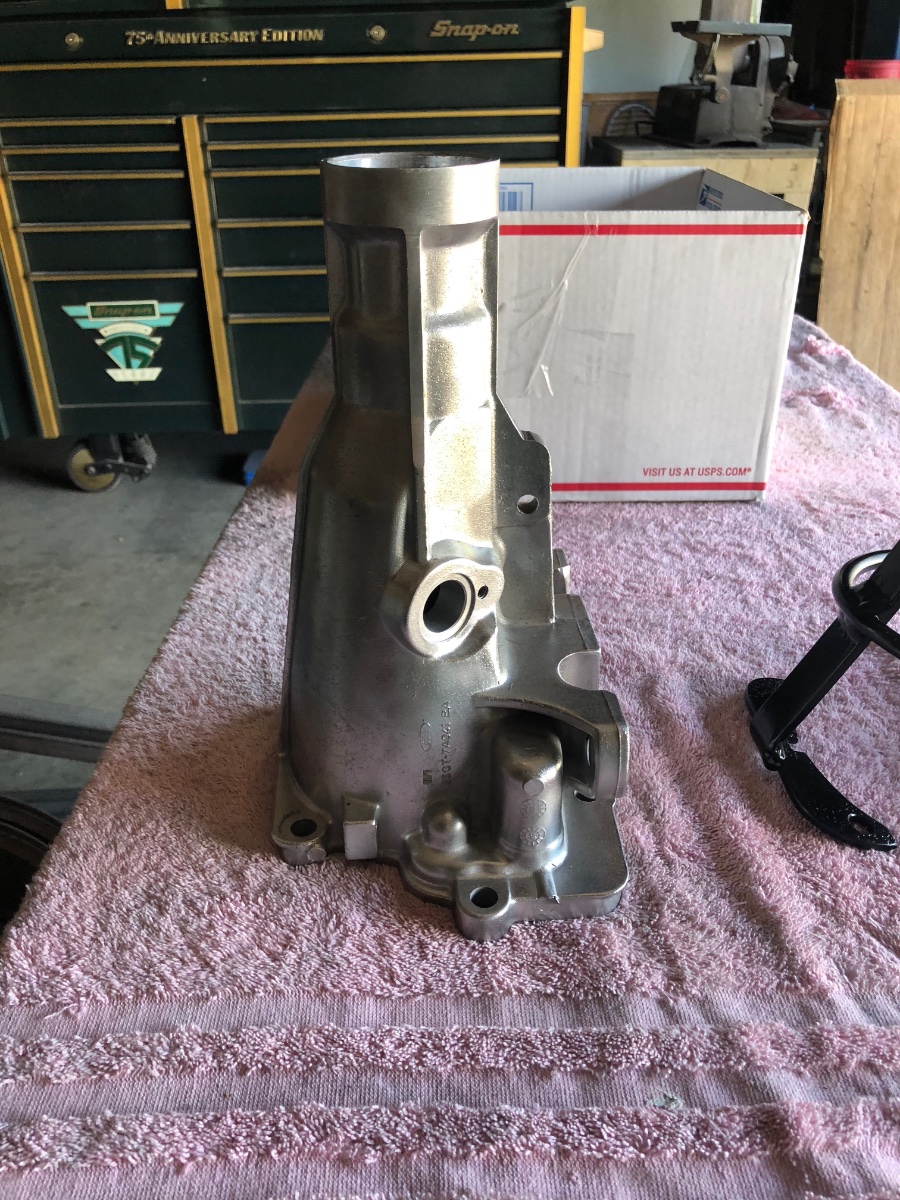

Nice looking adapter Hank!!


Les Schubert
Posts: 315
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Best, Easiest standard transmission conversion for 27 T

Post by Les Schubert » Wed Sep 11, 2019 6:49 pm

Maybe this
