Difference in Grease Cups?

Post by henryford2 » Mon Sep 23, 2019 11:25 am

Is there a difference between the grease cup used on the rear axle/driveshaft and the steering bracket? Parts vendors call out two different part numbers #2545 & #3596 respectively. Curious minds want to know
Always looking for vintage Whizzer engines, bikes & parts. What do you have?

User avatar

Mark Gregush
Posts: 1286
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Difference in Grease Cups?

Post by Mark Gregush » Mon Sep 23, 2019 11:36 am

No they are the same.The 21 parts book does not list a grease cup in the steering section. The 2545 parts number in the rear end section does not list a quantity because that grease cup was used in several locations, rear axle tubes, steering bracket and at the upper driveshaft bushing.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup

User avatar

Mark Nunn
Posts: 172
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Difference in Grease Cups?

Post by Mark Nunn » Mon Sep 23, 2019 1:30 pm

I spent an hour with a hammer and chisel knocking off many decades of crusty dirt buildup from my spare torque tube. Under the dirt was a perfect, unrusted grease cup. It was shiny and beautiful. It was also identical to the rusty old cup on my steering bracket. I put the pretty one on the bracket where it would be seen often. I am saving the crusty one for under the floorboards.

User avatar

Steve Jelf
Posts: 1650
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Difference in Grease Cups?

Post by Steve Jelf » Mon Sep 23, 2019 2:31 pm

I looked for #3596 in parts books and didn't find it anywhere. It may be in there someplace, but as Mark says, they're the same cup. In fact, Lang's catalogue says so even though it shows #3596 separately.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Topic author
henryford2
Posts: 255
Joined: Sun Jan 06, 2019 4:14 pm
First Name: Joseph
Last Name: Andulics
Location: North Ridgeville, OH
MTFCA Number: 9766
Contact:

Re: Difference in Grease Cups?

Post by henryford2 » Mon Sep 23, 2019 2:59 pm

Thanks everyone, thought as much.
Always looking for vintage Whizzer engines, bikes & parts. What do you have?


Original Smith
Posts: 943
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Difference in Grease Cups?

Post by Original Smith » Mon Sep 23, 2019 6:46 pm

It depends on the year. The earlier cars use the same 1/8 pipe threads as the later cars, but the shape of the female cup (the top one) is different. I'm not sure when the change took place. Perhaps Ford changed suppliers, but I've never seen the cauliflower type on a later car. My '13 roadster came with two serrated type caps, which I've only seen a few of. They are sort of ugly, and must not have been used very long. The big U-joint cap is the same for most all years as far as I know. I've not seen a cauliflower u-joint cap that has the correct stud inside to keep it from coming off.

User avatar

Topic author
henryford2
Posts: 255
Joined: Sun Jan 06, 2019 4:14 pm
First Name: Joseph
Last Name: Andulics
Location: North Ridgeville, OH
MTFCA Number: 9766
Contact:

Re: Difference in Grease Cups?

Post by henryford2 » Tue Sep 24, 2019 9:03 am

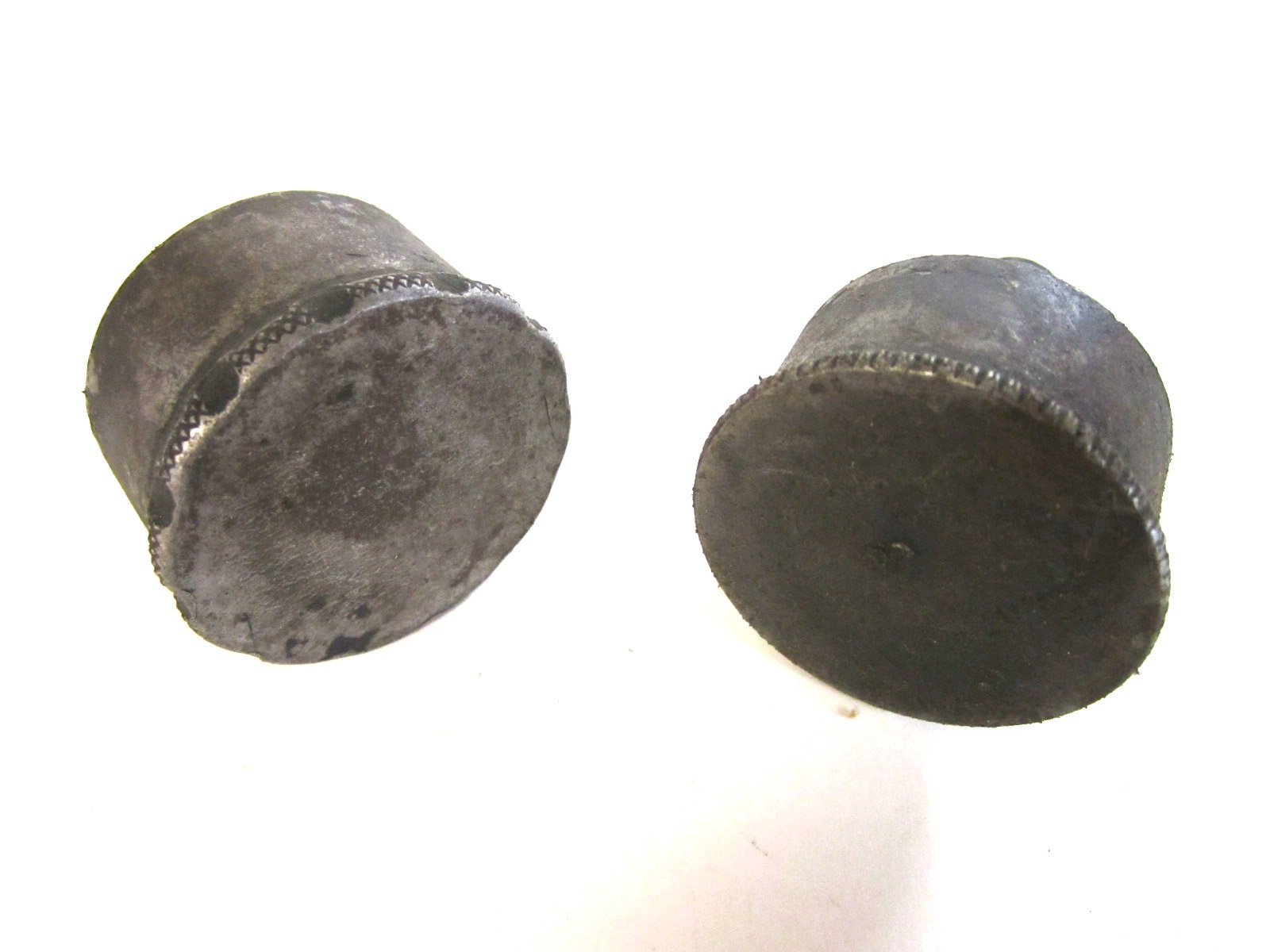

Larry, confused by the cauliflower description. Is this what you mean? Both large and small grease cups shown. Thanks
Always looking for vintage Whizzer engines, bikes & parts. What do you have?


Original Smith
Posts: 943
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Difference in Grease Cups?

Post by Original Smith » Tue Sep 24, 2019 9:58 am

Yes, that is what I was talking about. They just look older.


Rich Bingham
Posts: 752
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Difference in Grease Cups?

Post by Rich Bingham » Tue Sep 24, 2019 10:34 am

While we're in the subject, are grease cups with a brass cap older than those with a steel cap ? My '13 has an assortment, no "cauliflower" caps (good name !) but that doesn't mean much. She was restored when I got her and I know nothing of the "provenance".
