What shackle is this?

Post by Bill Robinson » Tue Jan 14, 2020 7:19 pm

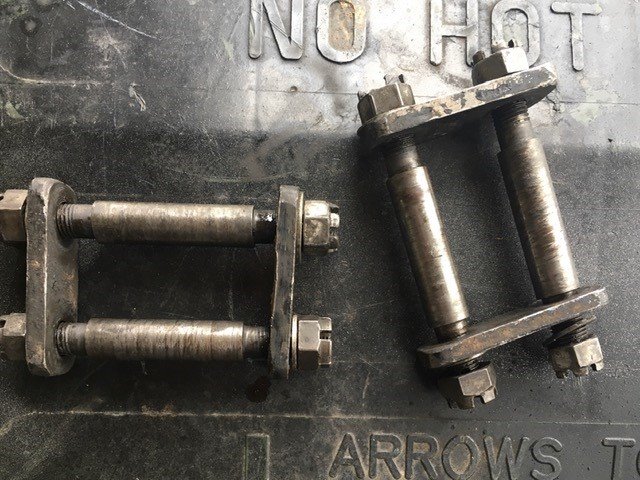

Today, I removed the shackles from my 26 RPU. These don't look like any shackle that I've seen before. Can anyone identify them- I'm suspecting they are not for a Ford. Or, maybe a re-pop from the past. Note that each shackle has 4 nuts.
Attachments

User avatar

CudaMan
Posts: 973
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667
Board Member Since: 2013

Re: What shackle is this?

Post by CudaMan » Tue Jan 14, 2020 7:31 pm

They look like modern replacements to me. They may work fine as long as you have oilers on your springs and perches, they just won't look OEM.

The design with nuts and cotter pins on both ends looks stronger to me than some of the modern repops with pressed-in splined shafts on one end. Those can loosen and fall apart over time.
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)

User avatar

Mark Gregush
Posts: 2588
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: What shackle is this?

Post by Mark Gregush » Tue Jan 14, 2020 10:21 pm

I was thinking they might be the type with the rubber inserts or something like this;
https://frsport.com/moog-sb336-bushing- ... -ford-each
Last edited by Mark Gregush on Tue Jan 14, 2020 10:47 pm, edited 1 time in total.
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup

User avatar

Steve Jelf
Posts: 3051
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: What shackle is this?

Post by Steve Jelf » Tue Jan 14, 2020 10:36 pm

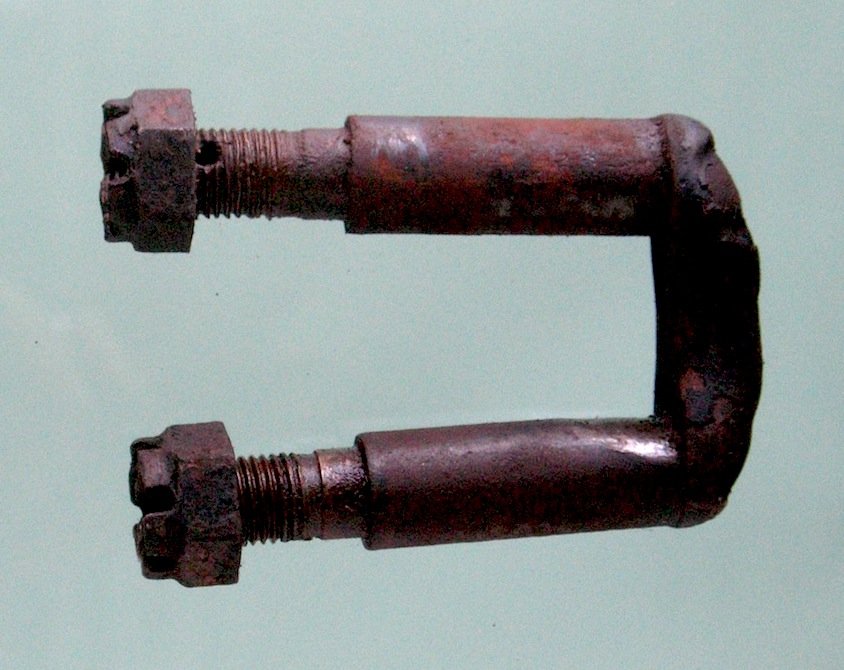

IMG_0210 copy 2.JPG
This is the correct type of shackle for 1926, but you should find better ones than this. :)
The inevitable often happens.
1915 Runabout
1923 Touring


Roverdriver
Posts: 44
Joined: Mon Jan 07, 2019 1:24 am
First Name: Dane
Last Name: Hawley
Location: Near Melbourne, Victoria, Australia

Re: What shackle is this?

Post by Roverdriver » Wed Jan 15, 2020 12:46 am

Many moons ago, I needed shackles for a 1928 Model A, and they were apparently made from unobtainium. I made my own in exactly the form of those that you illustrate, Bill. They might be 'home made' ones.

User avatar

Topic author
Bill Robinson
Posts: 156
Joined: Sun Jan 06, 2019 2:24 pm
First Name: Bill
Last Name: Robinson
Location: Salty Bottom, AL
MTFCA Number: 22487
MTFCI Number: 17887
Board Member Since: 1999
Contact:

Re: What shackle is this?

Post by Bill Robinson » Wed Jan 15, 2020 8:14 am

I plan on re-using the shackle set. Having owned the truck for many years and having removed the axle several times, I have never noticed that the shackles were any different from any other type on any of my other T's. But, when I had one of those cheapo knurled type shackles fail on me- I now look them over REAL GOOD. And, I notice all of the differences. The forged type is now my shackle-of-choice.
This set of shackles has served me well, so they are going back on the truck whenever my new Ruckstell from Chaffin's makes it to me.


Rich Bingham
Posts: 1314
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: What shackle is this?

Post by Rich Bingham » Wed Jan 15, 2020 11:23 am

Not manufactured IMHO. The flat bar stock has all the earmarks of back-yard blacksmithing but the threaded items have been neatly machined. Certainly a better “fix” than poorly made reproduction shackles that many have reported fail in a short while. You may want to re-make the turned pieces that are worn off center. I’d re-use them too ! :D
"Get a horse !"

User avatar

Rich Eagle
Posts: 3107
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: What shackle is this?

Post by Rich Eagle » Wed Jan 15, 2020 1:33 pm

The V8s used these with a nut at each end. Would those be a transition to that?
When did I do that?
