1913-14 Gaslight hose

Post by Original Smith » Sat Aug 08, 2020 12:00 pm

I measured an original gaslight hose from the radiator tube to the headlight. It is 10". The one from the radiator to the frame rail pipe is 5 1/2". The one for the frame rail pipe to the tank is missing, but I think it is 28". Does anyone know the original length? I wish we could buy the correct hose!


Adam
Posts: 778
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
Location: Wisconsin
MTFCA Number: 23809
MTFCI Number: 1
Board Member Since: 2000

Re: 1913-14 Gaslight hose

Post by Adam » Sat Aug 08, 2020 1:44 pm

1,000 feet would be enough for 250 cars. Should be easy to initially sell lots of 10 sets to each of the four major vendors. That’s 40 sets right there. Why don’t you have 1,000 feet made? Should be easy to get it custom manufactured exactly the way you want it if you order enough...


R.V.Anderson
Posts: 493
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
Location: Kennedy, NY

Re: 1913-14 Gaslight hose

Post by R.V.Anderson » Sat Aug 08, 2020 2:24 pm

Order enough? Maybe. Pay enough? Definitely! :D :D :D


bud delong
Posts: 354
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: 1913-14 Gaslight hose

Post by bud delong » Sat Aug 08, 2020 6:58 pm

When i needed lamp hose i used a old set from my torch and used that??? Bud.

User avatar

TWrenn
Posts: 953
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: 1913-14 Gaslight hose

Post by TWrenn » Sat Aug 08, 2020 8:38 pm

Like RV said..$$$...last I knew it retailed for $6 a foot, so you can bet it would wholesale at $3 a foot in order for a vendor to make any profit. So even at that, who has $3K sitting around on speculation. Sure isn't me!! Nice thought though.
Just another area of dwindling supplies and parts. Gonna get worse before it gets better.


Topic author
Original Smith
Posts: 1775
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1913-14 Gaslight hose

Post by Original Smith » Sun Aug 09, 2020 9:37 am

I'd be willing to pay plenty for the correct hose! The last time Ron Gocek made a run, he wasn't paying attention, and it came out 5/8" OD. That's way to big to fit through the holes in the radiator and the splash shield. The correct size is 1/4" ID, AND 7/16" OD. Welding hose is too large.


Drkbp
Posts: 148
Joined: Sun Jan 06, 2019 11:28 am
First Name: Kenneth
Last Name: Parker
Location: Houston, Texas

Re: 1913-14 Gaslight hose

Post by Drkbp » Sun Aug 09, 2020 11:06 am

I have Ron Gocek 1/2" hose on my '14 for about 5 years running off a Prest-O-Lite B tank.
My concern has been about cracking/leaks where it rubs on the metal 3 places-radiator & splash shield.
OK so far, but I wouldn't run that RG hose through a drilled 1/2" hole which may cut it.
I don't think the reproduction splash shields for mid '12 through '14 have the gas hole punched in them.
Sort of like lab burner hose, and may look correct, but I don't imagine it is an acetylene rated hose.

Rather inexpensive way to get your lights working until the "correct" hose is available (6-1/2 feet of 7/16" Acetylene hose for $23):
https://www.amazon.com/Goss-HA3-6-Acety ... de=df0&hva

User avatar

Darren J Wallace
Posts: 164
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1913-14 Gaslight hose

Post by Darren J Wallace » Sun Aug 09, 2020 11:39 am

I still have the petrified original hose from my generator to the frame pipe. The piece that goes thru the splash apron for my early '13. I'll measure it.
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars

User avatar

Darren J Wallace
Posts: 164
Joined: Sun Jan 06, 2019 11:43 am
First Name: Darren
Last Name: Wallace
Location: Woodstock, Ontario, Canada
Board Member Since: 2005
Contact:

Re: 1913-14 Gaslight hose

Post by Darren J Wallace » Sun Aug 09, 2020 12:08 pm

Here's photos of my "original" hose. It is between 24 3/4" and 25" long. The outside diameter is 15/32", slightly over 7/16" as Larry pointed out for original specs. Since my car is a Canadian car, some variations may apply(?) This has been on this car since my grandfather bought it in 1956. I would imagine, it's been there all it's life. I have no way of proving it but take this info for what it's worth. Hope this is helpful. The hose is cloth wrapped.
Attachments
1913 Canadian Touring & 1905 Queen, both cars are 4 generation family owned cars


bud delong
Posts: 354
Joined: Tue Feb 26, 2019 9:09 pm
First Name: Kenneth
Last Name: DeLong
Location: wheeler,Mi

Re: 1913-14 Gaslight hose

Post by bud delong » Sun Aug 09, 2020 12:39 pm

While not correct mine works perfectly and welding hose comes in more than one size.I would avoid old cracking hose but that is just me.Bud. :D


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: 1913-14 Gaslight hose

Post by Dropacent » Sun Aug 09, 2020 1:47 pm

Every couple of years this quest for original red acetylene hose pops up. I don’t believe red acetylene hose ever was used on early cars up to the 1913-4 models. Over many years, I’ve had many original artifacts come through my hands, and every once in awhile, there is a bit of old hose still attached. Petrified and mummified but was obviously a white or cream color rubber tube. Out in the weather, over time, this gum rubber swells, cracks and generally just goes bad. Sometimes I’ll find a piece still attached that also has a piece of fine wire, or even bailing wire holding it on. This was an owner fix when the hose started going bad, and swelling.

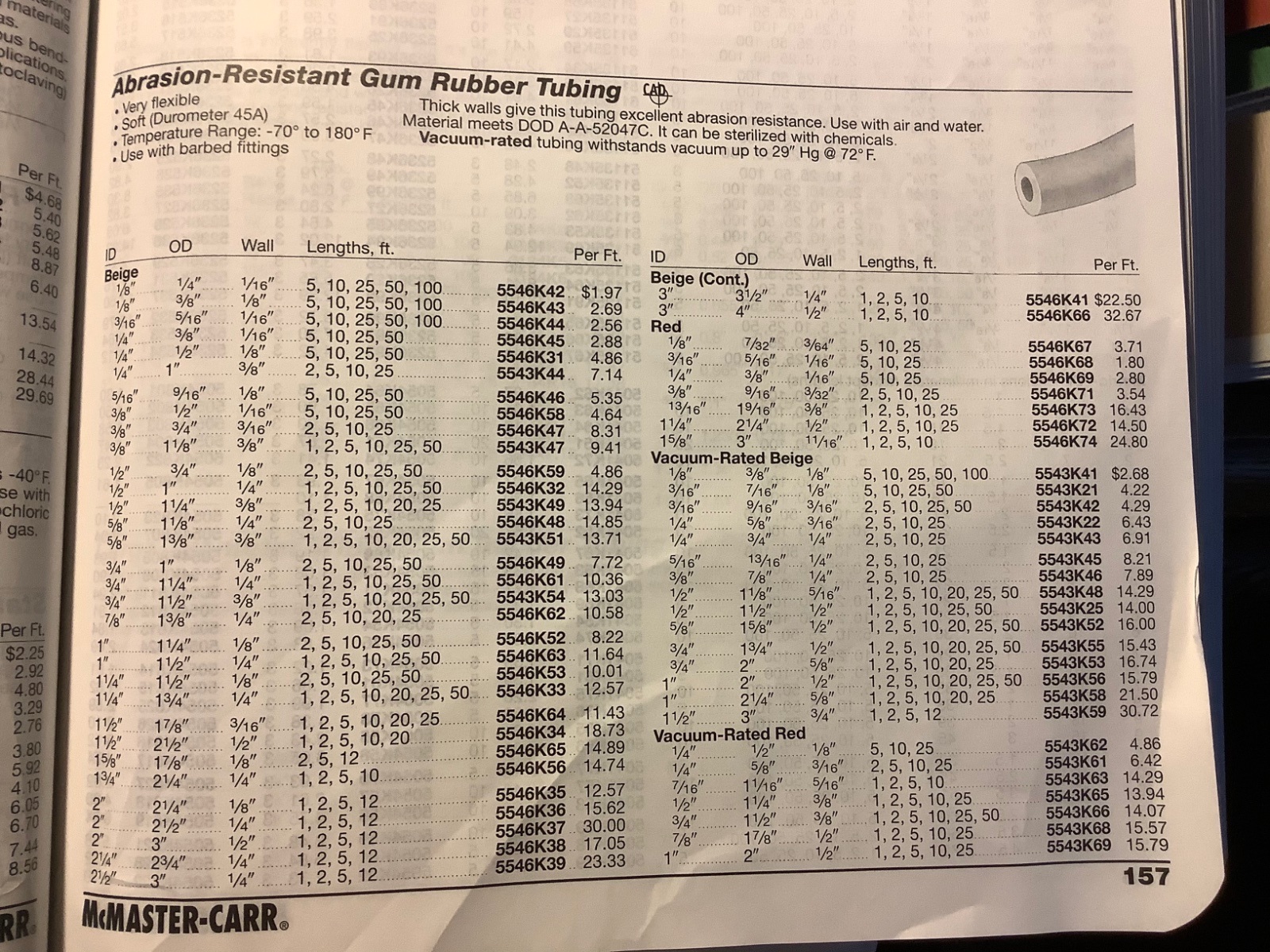

Searching through my very old supply catalogs, I come up with only one listing, shown below. Gum rubber tubing. I believe this is what early autos were supplied with originally. Stop and think. On the assembly line, would Henry have used a rubber hose , that could just be pushed onto the nibs by hand? Or would he use red plumbers tank acetylene hose that needs to be attached with clamps. This red hose Larry seeks is way too heavy duty, and made for hard use ( on a plumbers tank, for instance) that can be used, wound up, used again, skuffed around. Plumbers tanks use higher pressure appliances than any lamp ever used. I’ll say it again. Lamps use VERY low pressure. The type of pressure that soft rubber tubing can hold by itself on a bib fitting, no clamp. It’s hardly ever shown in the catalogs of the day, likely because it was a common hardware store item, easily bought when your ford hose started failing. My other picture is shown gum rubber tubing, available in many sizes, even the size Original Smith seeks. It’s pretty cheap. I’m showing new hose next to some delicate vintage gum rubber that still has some life in it. Available in many sizes from McMaster-Carr supply. If you agree, I’d grab it soon, as they just started carrying it again, after not having it for many years. The picture showing the two hoses is of old coin operated machines, with hearing tubes, made in the same period as our old cars. JMHO


RichardW
Posts: 91
Joined: Sun Jan 13, 2019 6:23 am
First Name: Richard
Last Name: Williamson
Location: Ocala Florida

Re: 1913-14 Gaslight hose

Post by RichardW » Sun Aug 09, 2020 2:06 pm

Kim Dobbins where are you?


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: 1913-14 Gaslight hose

Post by Dropacent » Sun Aug 09, 2020 2:41 pm

.


StanHowe
Posts: 859
Joined: Mon Jan 07, 2019 5:42 pm
First Name: Stan
Last Name: Howe
Location: Helena, MT
MTFCA Number: 19133
Board Member Since: 1999

Re: 1913-14 Gaslight hose

Post by StanHowe » Mon Aug 10, 2020 1:21 am

Whether you choose to use it or not, 1/4 inch red acetylene American made hose is readily available.
I use it for fuel lines in addition to acetylene.


Topic author
Original Smith
Posts: 1775
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1913-14 Gaslight hose

Post by Original Smith » Mon Aug 10, 2020 10:14 am

It is true the current splash shields don't have the hose hole punched. I was able to do it for my '13 exactly like the original I have some of McMaster Carrs red hose on one of my cars, and it is ok, but I like the cloth covered stuff better. Thanks for the help on the tank to frame line hose.


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Another supplier 1913-14 Gaslight hose

Post by Dropacent » Wed Aug 12, 2020 1:24 pm

Here is another period ad, gum rubber acetylene lamp hose. 1925 catalog. This in red. By then they were starting to add compounds to increase the longevity, black in tires, red in hoses. I’ve put this out there, mr. Original, any rebuttal archival evidence that FoRd used acetylene welding hose originally? fWIW, McMaster-Carr has gum rubber, in the right size, Available in red, along with the natural color. I’ve got a sample on the way.


Erik Johnson
Posts: 377
Joined: Mon Feb 04, 2019 10:25 pm
First Name: Erik
Last Name: Johnson
Location: Minneapolis, MN

Re: 1913-14 Gaslight hose

Post by Erik Johnson » Wed Aug 12, 2020 2:13 pm

Asked my dad about the three red rubber hoses on his 1910 IHC roadster. (I should also ask him if any of the original was on the car when he bought it 70 years ago and if he kept any samples of it.)

He said back in the 1950s and 1960s, antique auto restorers used red rubber beer line air hose and that is what he currently has on his car. You can still buy it today but after doing some casual Googling, it seems that red vinyl beer line air hose is more readily available than red rubber.


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Sample 1913-14 Gaslight hose

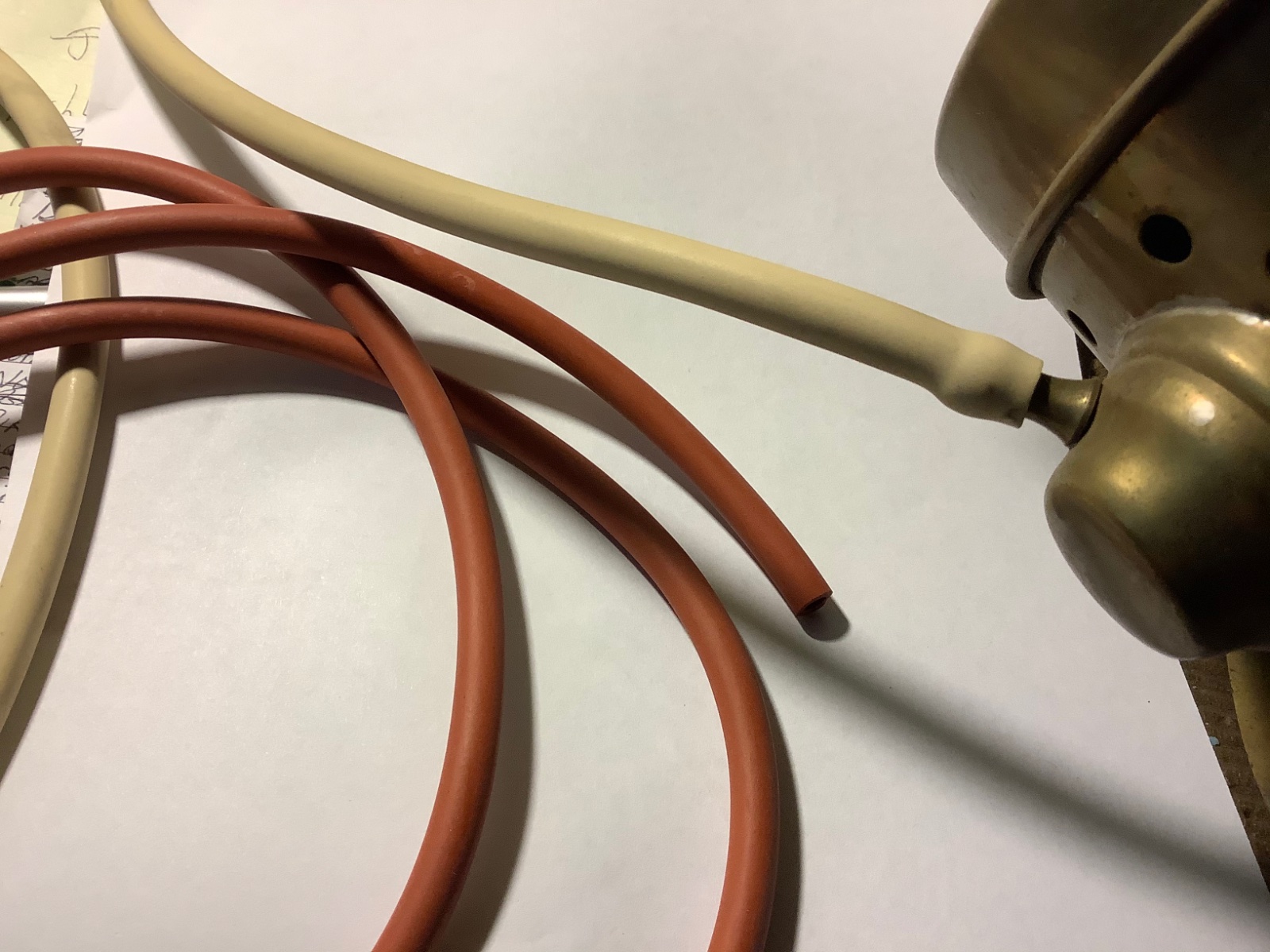

Post by Dropacent » Fri Aug 14, 2020 3:55 pm

The off white is $2.88/ft. The red is $2.80/ft. The red shown is shown for color, it’s a different size that I’m using for something else.
Attachments


KimDobbins
Posts: 436
Joined: Sun Jan 06, 2019 12:16 pm
First Name: Kim
Last Name: Dobbins
Location: Southern California
MTFCA Number: 8243

Re: 1913-14 Gaslight hose

Post by KimDobbins » Fri Aug 14, 2020 6:06 pm

I agree with Tim on the off white hose. I have seen it still attached to old burner elbows.


Art Ebeling
Posts: 198
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
Location: Hillsboro IL
MTFCA Number: 50718

Re: Sample 1913-14 Gaslight hose

Post by Art Ebeling » Sat Aug 15, 2020 7:16 am

Dropacent wrote:
Fri Aug 14, 2020 3:55 pm
The off white is $2.88/ft. The red is $2.80/ft. The red shown is shown for color, it’s a different size that I’m using for something else.
Dropacent, Is the off white the biege color in the catalog? And is the size 1/4 ID, 3/8 OD? Thanks, Art


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Source 1913-14 Gaslight hose

Post by Dropacent » Sat Aug 15, 2020 1:54 pm

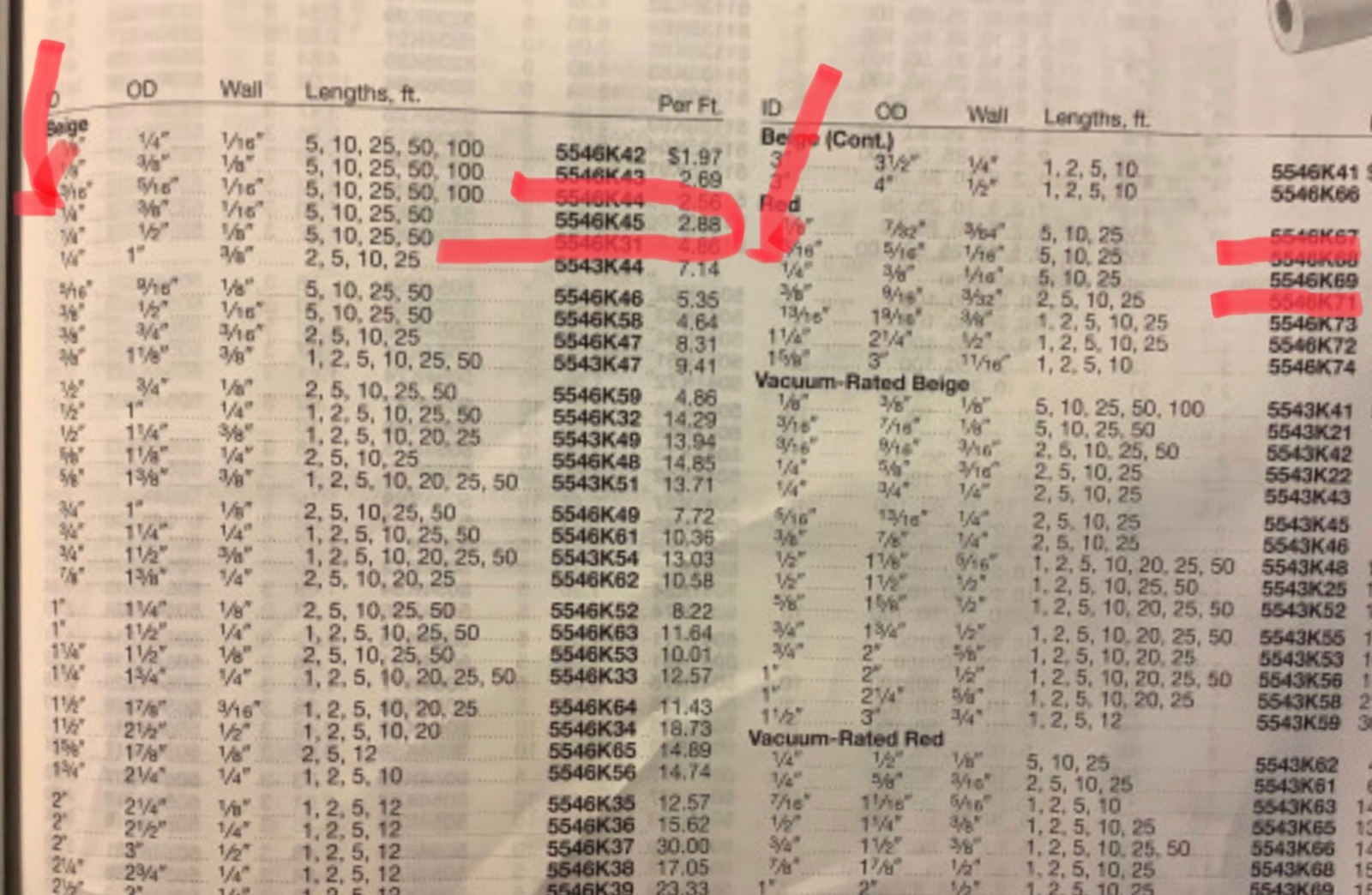

Art, here is the McMaster-Carr parts numbers. If you read up on the history of rubber, they started experimenting with adding material to change the durability of rubber very early on. From the original bits of it I’ve seen over the years, it’s swollen so much from age that a lot of 1/8” wall stuff was used back then, too. It would be my educated guess that white hose would be appropriate for very early cars, the red for later gaslight use. A personal choice, I would think, also. If anyone around here wants some, I’d be glad to order it in. ( original Smith is taking donations of used acetylene hose)


ericmac
Posts: 154
Joined: Tue Jan 08, 2019 11:11 pm
First Name: Eric
Last Name: Macleod
Location: Battle Creek, Michigan
MTFCA Number: 50125
MTFCI Number: 19464
Board Member Since: 2016

Re: 1913-14 Gaslight hose

Post by ericmac » Sun Aug 16, 2020 10:57 pm

If you are looking for people who would be interested in buying some lengths of the white hose, count me in.
1913 Touring
1926 Fordor
1937 Cadillac Series 75 Fleetwood Conv. Sedan
1927 Touring
Stynoski 2006, Nash, Franklin, Lincoln and Buick owner emeritus


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: 1913-14 Gaslight hose

Post by Dropacent » Mon Aug 17, 2020 2:51 am

I’d be glad to get a bunch to someone that wants to supply people. Just holler. I don’t want to do it at a couple foot at a time. I would do that for someone nearby me, but wifey has enough keeping track of our other things.


Rich Bingham
Posts: 1401
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: 1913-14 Gaslight hose

Post by Rich Bingham » Wed Aug 19, 2020 12:59 pm

I re-plumbed the acetylene lines on Lizzie after she adopted me, using the red rubber hose with a cloth outside pattern that Lang's offered at the time. After four summers spent mostly outside, it needs replacing. I wonder how well the original hose held up ? Any historical accounts of that ?
Attachments
"Get a horse !"


Dropacent
Posts: 1563
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: 1913-14 Gaslight hose

Post by Dropacent » Wed Aug 19, 2020 1:09 pm

Rich, I’ve had original gum rubber tube inside on coin op machines for 25+ years now. Inside, air conditi9ned, out of the sun. I’d say it would last a lifetime kept like that. For on an old auto, my guess would be that you’d get several years out of it, depending on use and storage conditions, of course. Ozone is the killer, it will start getting a hard skin that dries out and starts cracking, even though the inside will still be supple enough to hold the pressure we are talking about. Keep in mind, it’s offered in two different wall thickness , 1/16 and 1/8. I’ve seen more original bits on burners and such that appear they were probably 1/8 wall, and swollen pretty huge.


Art Ebeling
Posts: 198
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
Location: Hillsboro IL
MTFCA Number: 50718

Re: 1913-14 Gaslight hose

Post by Art Ebeling » Wed Aug 19, 2020 8:07 pm

I did get the 1/4 ID X 3/8 OD with the 1/16 wall from McMaster-Carr and it seems like the 1/16 wall is too thin. I would think the 1/4 X 1/2 with the 1X8 wall would be better. What do you guys think? Art


Topic author
Original Smith
Posts: 1775
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 1913-14 Gaslight hose

Post by Original Smith » Wed Aug 19, 2020 8:56 pm

When I cut the hole in the splash shield for the generator hose, I started with a very small hole, maybe 1/8" dia. I drilled a 7/16" hole in a block of wood, and centered it on the block of wood, held in place with a floor jack. I carefully used a taper punch to enlarge the hole to the original size. Can't tell it from the original!
