Oil Slingers- Yay or Nay?

[Tim Rogers]

Building an engine with an external mag and I have found some competing info on the forum concerning slingers. What do you think?


[Rich Eagle]

I have driven my Speedster for 40 some years without them. If I had the engine apart today I would add some. They can't hurt but mine has done fine without them for 15-20,000 miles.
Rich

[Joe Bell]

I have tore several engines down that did not have them and the wrist pins where blued from not enough oil getting to them.

[Dan Hatch]

If you are removing magnets you should look into a ring to keep the triple gear pins from backing out. The magnets do this when they are there. I have not had any back out, but have heard of them doing it. Dan

[Dan McEachern]

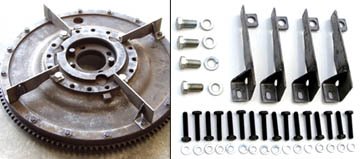

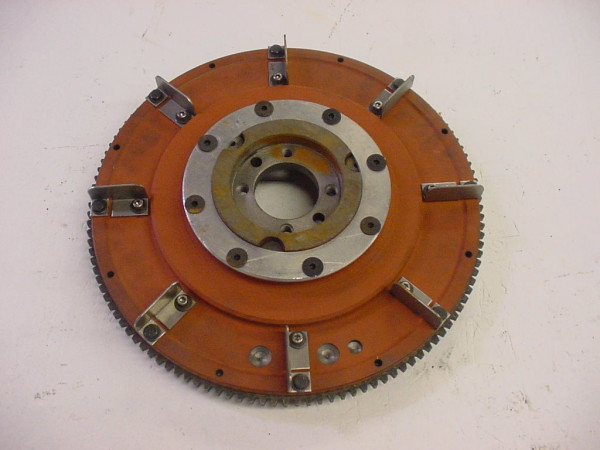

Here is what Dan is referring to. Also a different version of oil slingers that work quite well.

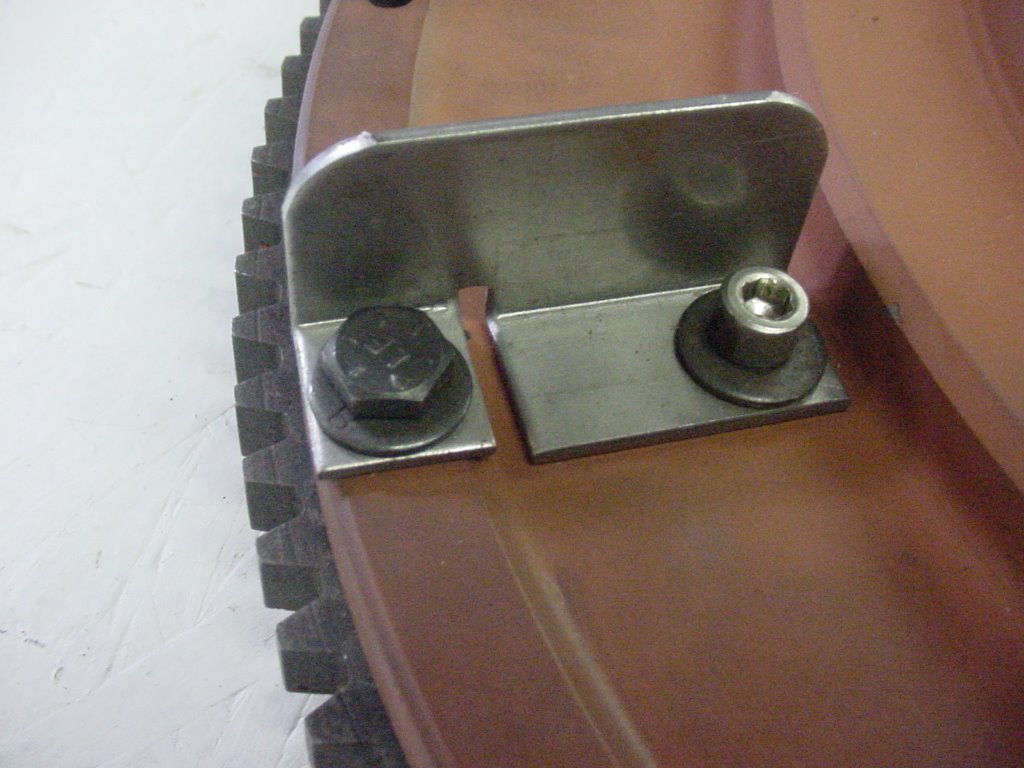

Been using these for years and I moved away from simply using spools and bolts to insure good oil circulation for both the engine and transmission. The ring might be a belt and suspenders approach for the triple gear pins, but its hardly worth the risk anymore in my opinion. From other postings regarding flywheel balancing, this is a pretty typical balance correction, and this is on a later fully machined style flywheel.

[Mark Gregush]

Nice! While I was reading this I was wondering who came up with only 4 paddles, thinking it would throw things off, then Dan shows the above. (I am not talking about a balancing the flywheel)

[Dan Hatch]

That is what I am talking about.
