can I use a Z head on a 23 with a low radiator?
What is the fix for the upper water neck? I don't think a hose will bend like that. Will a water neck for a high radiator work?
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: can I use a Z head on a 23 with a low radiator?
The only thing you will have to check is that the pistons clear the head at TDC other than that it is all the same for the top hose and radiator to bolt together.
-
kmatt2
- Posts: 655
- Joined: Wed Jun 17, 2020 1:41 pm
- First Name: Kevin
- Last Name: Matthiesen
- * REQUIRED* Type and Year of Model Ts owned: 26 T Coupe, 16 T Open Express, 21 TT Flatbed. 15 T Roadster, 13 & 25 T Speedster’s,51 Mercury 4 door sport sedan, 67 Mercury Cougar
- Location: Madera CA 93636
Re: can I use a Z head on a 23 with a low radiator?
Don’t get the low head and high head mixed up with the low radiator and high radiator. The Z head is a high head and takes the head outlet to radiator used 1917-1925. It sounds like you may have a head outlet for a brass radiator car, the correct outlet should go up aprox 90 deg from the head not up at aprox 45 deg from head.
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: can I use a Z head on a 23 with a low radiator?
Pictures of what the question is about always helps. Can't assume "stock"radiators, water outlets in a 100 yr old car
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
Don ellis
Topic author - Posts: 380
- Joined: Sun Jan 06, 2019 8:51 pm
- First Name: Don
- Last Name: Ellis
- * REQUIRED* Type and Year of Model Ts owned: 1911,1917,23,27
- Location: Julian nc
Re: can I use a Z head on a 23 with a low radiator?
I have a low radiator, I want to use a high z head. Can I use a later outlet to make the radiator hose align better is the question.
-
speedytinc
- Posts: 4729
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: can I use a Z head on a 23 with a low radiator?
Yes. the Z head directly replaces the stock iron head you should have. The water outlet is the same from 17-25.
If you dont have a Z head already, I would highly recommend you go with the Prus head instead.
If you dont have a Z head already, I would highly recommend you go with the Prus head instead.
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: can I use a Z head on a 23 with a low radiator?
The radiator makes no difference, your engine if stock would have a high head and the Z is the same.
-
Don ellis
Topic author - Posts: 380
- Joined: Sun Jan 06, 2019 8:51 pm
- First Name: Don
- Last Name: Ellis
- * REQUIRED* Type and Year of Model Ts owned: 1911,1917,23,27
- Location: Julian nc
Re: can I use a Z head on a 23 with a low radiator?

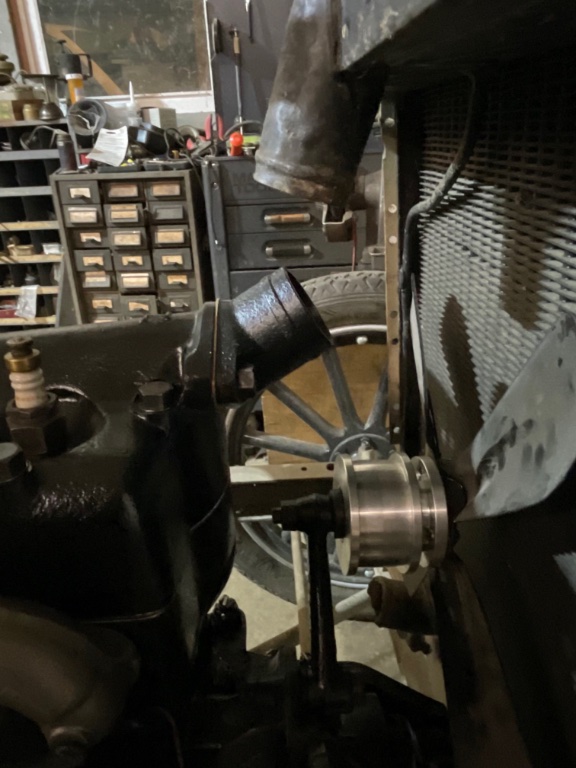

In case I’m not explaining good enough
- Attachments
-
-
Don ellis
Topic author - Posts: 380
- Joined: Sun Jan 06, 2019 8:51 pm
- First Name: Don
- Last Name: Ellis
- * REQUIRED* Type and Year of Model Ts owned: 1911,1917,23,27
- Location: Julian nc
Re: can I use a Z head on a 23 with a low radiator?
Never mind, the later neck will make it work
- Attachments
-
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: can I use a Z head on a 23 with a low radiator?
Yes, that outlet is off a low head up to about 1917
-
Allan
- Posts: 6610
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: can I use a Z head on a 23 with a low radiator?
When fitting a Z head be sure to check clearance around the pistons. Before fitting it, clean out all threads in the block. Check your head bolts in the head for length. Because you need a washer under the bolt heads, effective length of the bolts is reduced, and you are more likely to strip a thread in the block. I use new, longer bolts to get maximum thread engagement.
I too suggest a Prus head if you haven' already bought a Z head.
Hope this helps.
Allan from down under.
