Does anyone have photographs of original Rock Mountain Brakes? The Complete Set? Every last piece?

Post by NorthSouth » Mon Aug 18, 2025 6:24 pm

-
Does anyone have photographs of original Rock Mountain Brakes? The Complete Set? Every last piece?
-
Last edited by NorthSouth on Tue Sep 02, 2025 2:49 pm, edited 1 time in total.
Top

ThreePedalTapDancer
Posts: 1649
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by ThreePedalTapDancer » Mon Aug 18, 2025 6:51 pm

Larry Smith posted a pic of original clamp back in 2016. Looks like it would be easy to make, I would suggest using an aircraft eye bolt from aircraft spruce. You may have to extend the threads further on shank, just an idea.

https://www.mtfca.com/discus/messages/5 ... 1478740557
Attachments
Top

Kevin Pharis
Posts: 1590
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA
Contact:
Contact Kevin Pharis

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Kevin Pharis » Mon Aug 18, 2025 7:14 pm

These fixture bolts are an even closer match

https://www.carrlane.com/product/clampi ... ts/cl-1-sb
Top
User avatar

RajoRacer
Posts: 5263
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by RajoRacer » Mon Aug 18, 2025 7:14 pm

Here's another photo - Ed has a great suggestion !
Attachments
original R.M. pedal clamp.JPG
Top
User avatar

TRDxB2
Posts: 6338
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by TRDxB2 » Mon Aug 18, 2025 7:24 pm

Swing Bolts
Attachments
swing bolt.png
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top

Original Smith
Posts: 3766
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Original Smith » Thu Aug 28, 2025 9:27 am

Those hinge pin swing bolts are very close, but need to be modified to be correct.
Top

Rajo23
Posts: 88
Joined: Sun Jan 06, 2019 10:30 pm
First Name: John
Last Name: Goertzen
* REQUIRED* Type and Year of Model Ts owned: 1923 Touring, 1927 Runabout
Location: Canby, OR

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Rajo23 » Thu Aug 28, 2025 11:54 am

TRDxB2 wrote: ↑
Mon Aug 18, 2025 7:24 pm
Swing Bolts
This isn't a "photograph of an Rock Mountain Brake 'pedal clamp'!
Top

Original Smith
Posts: 3766
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Original Smith » Thu Aug 28, 2025 12:08 pm

It certainly is!
Top

Topic author
NorthSouth
Posts: 598
Joined: Tue Apr 16, 2019 9:18 pm
First Name: Steve
Last Name: California
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1926 Pick Up
Location: West Coast

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by NorthSouth » Sun Aug 31, 2025 10:17 pm

-
Found One.
Now I just need the C clamp.
-
Top
User avatar

KWTownsend
Posts: 1422
Joined: Mon Jan 07, 2019 6:51 pm
First Name: Keith
Last Name: Townsend
* REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
Location: Gresham, Orygun
MTFCA Life Member: YES
Board Member Since: 1999

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by KWTownsend » Mon Sep 01, 2025 1:21 am

The C clamp looks like it would be easy to fabricate.
Top
User avatar

RajoRacer
Posts: 5263
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by RajoRacer » Mon Sep 01, 2025 12:55 pm

C-clamp material - 3/16 x 3/4 flat stock w/rounded edges - Mc Master-Carr.
Top
User avatar

Shrshot
Posts: 100
Joined: Thu Dec 26, 2024 9:38 pm
First Name: Kent
Last Name: Palazzo
* REQUIRED* Type and Year of Model Ts owned: 1926 Tudor
Location: Algoma, WI

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Shrshot » Mon Sep 01, 2025 6:39 pm

Here's a picture of the one I made to use on my AC Brakes...
Top

speedytinc
Posts: 4838
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by speedytinc » Mon Sep 01, 2025 9:12 pm

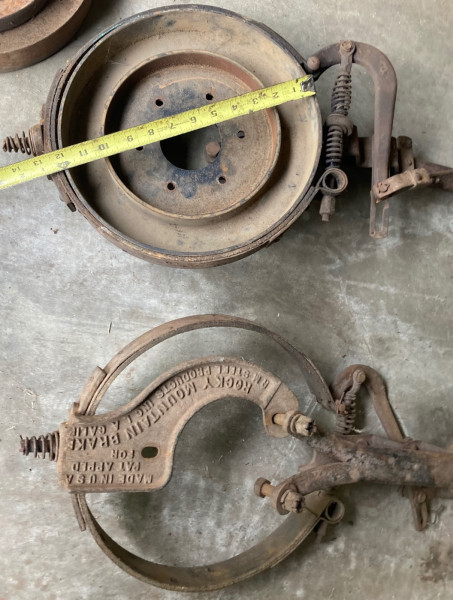

Rocky Mountain unit.jpeg
RM brake linkage 2.jpeg
RMbrake linkage.jpeg
Rocky Mountai brake drum.jpeg
The pedal linkage unit appears to be unused. mounts to pivot from the DS tube.
Pedal clamp is 2 pieces cast to clamp onto pedal with 1/4" bolts.
Drums are riveted together.
Obviously made for a cable that automatically equalizes.
I dont know if this is an original RM brand set or a Sunderland reproduction.
Top
User avatar

RajoRacer
Posts: 5263
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by RajoRacer » Mon Sep 01, 2025 10:32 pm

John - I have a set of both - the main bracket you are showing is an original. The Sunderland drums are cast in one piece.
Top

Original Smith
Posts: 3766
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Original Smith » Tue Sep 02, 2025 12:05 pm

I'll stick with the original design.
Top

Original Smith
Posts: 3766
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by Original Smith » Tue Sep 02, 2025 12:08 pm

When Eaton took over the production of Rocky Mountain products, they made a number of changes, some good, some not so good.
Top

Topic author
NorthSouth
Posts: 598
Joined: Tue Apr 16, 2019 9:18 pm
First Name: Steve
Last Name: California
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1926 Pick Up
Location: West Coast

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by NorthSouth » Tue Sep 02, 2025 2:25 pm

-
This is what I have collected so far;
-
Attachments
Top

Topic author
NorthSouth
Posts: 598
Joined: Tue Apr 16, 2019 9:18 pm
First Name: Steve
Last Name: California
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring, 1926 Pick Up
Location: West Coast

Re: Does anyone have a photograph of an original Rock Mountain Brake “pedal clamp”?

Post by NorthSouth » Tue Sep 02, 2025 2:33 pm

Original Smith wrote: ↑
Tue Sep 02, 2025 12:05 pm
 I'll stick with the original design.
-
Larry,
What is the “original design” that you referred to?

Would you be able to provide more information or “photographs”.

Those following this thread would benefit from more elaboration.
-
Top
