Battery Box

Post by Craig Raynor » Fri Sep 20, 2019 9:19 am

Any one here have an idea if this was something originally sold from Ford on a production car? If yes of what year/years this would be found on?[image][/image]
Attachments


Topic author
Craig Raynor
Posts: 31
Joined: Wed Jan 09, 2019 7:28 am
First Name: Craig
Last Name: Raynor
Location: Southampton NY
Board Member Since: 2017

Re: Battery Box

Post by Craig Raynor » Fri Sep 20, 2019 9:20 am

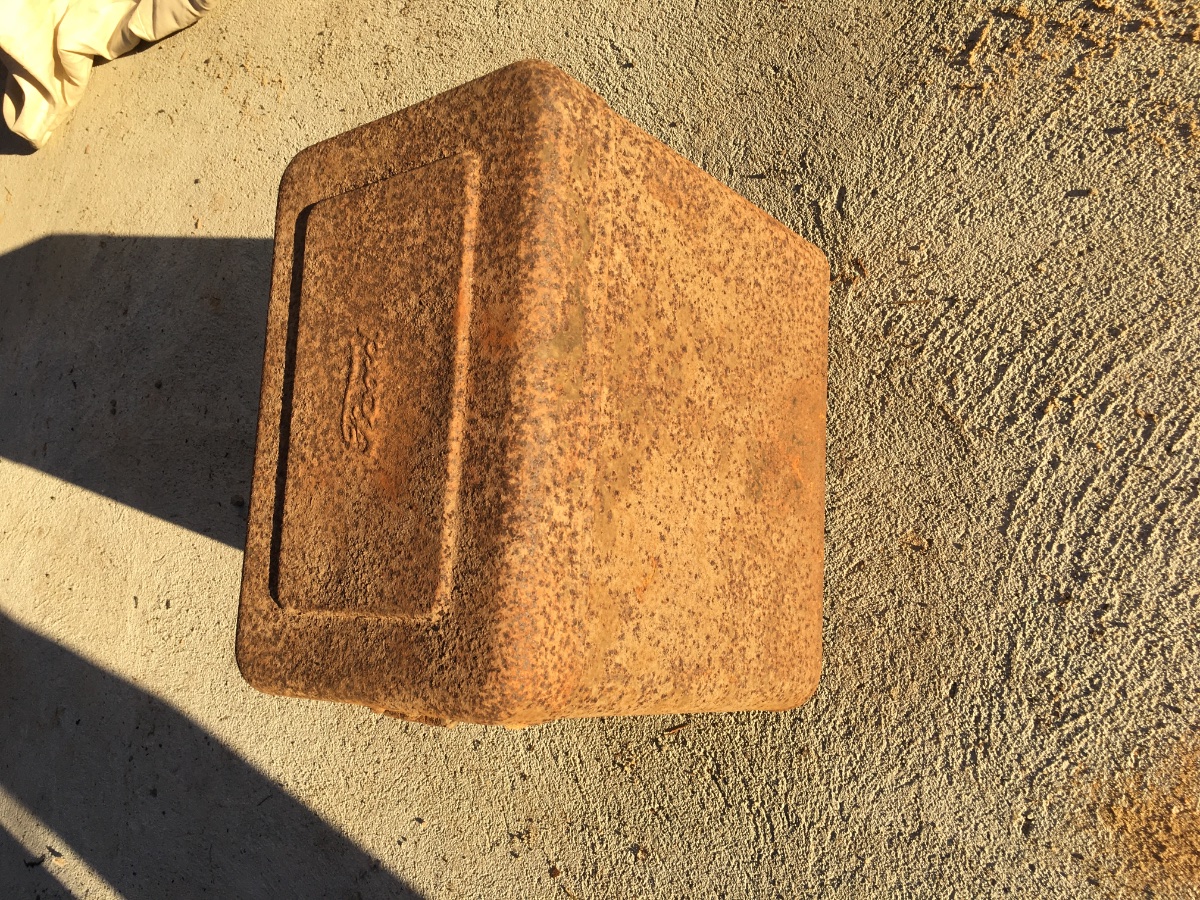

A few more pictures
Attachments


BHarper
Posts: 67
Joined: Sun Jan 06, 2019 11:15 am
First Name: Bill
Last Name: Harper
Location: Keene, New Hampshire
MTFCA Number: 5414
MTFCA Life Member: YES

Re: Battery Box

Post by BHarper » Fri Sep 20, 2019 9:39 am

Hi Craig,

If I recall correctly, Ford did supply that battery box in 1919 when they introduced the starter and generator on the closed cars. Apparently they didn't have ready the battery carrier and its box which we are so familiar with and, of course, the changes which would be required on the assembly line. Perhaps this running board mounted box was a quick and easy stop gap measure until they had the changes in the manufacturing process sorted. I can't tell you for how long Ford used this box, but it wasn't long. It would be correct for a 1919 enclosed car.

Nice Find.

My two cents worth, perhaps over valued, Bill

User avatar

DanTreace
Posts: 738
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Battery Box

Post by DanTreace » Fri Sep 20, 2019 10:05 am

Super find! Haven't seen one before, but knew they were rare items, only 1919 for a very short time.

From Bruce's C-D Encyclopedia Parts List:
1919 battery box R.B..jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Topic author
Craig Raynor
Posts: 31
Joined: Wed Jan 09, 2019 7:28 am
First Name: Craig
Last Name: Raynor
Location: Southampton NY
Board Member Since: 2017

Re: Battery Box

Post by Craig Raynor » Fri Sep 20, 2019 6:49 pm

Thanks for the information thinking I will sell it.


Original Smith
Posts: 946
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Battery Box

Post by Original Smith » Sat Sep 21, 2019 9:20 am

I believe Don Lang had a NOS one of those a few years back. It sold for a lot of money.

User avatar

Mark Gregush
Posts: 1293
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Battery Box

Post by Mark Gregush » Sat Sep 21, 2019 12:00 pm

Looking at it where the holes come out and the type of latch, I am thinking it might be TT truck. The battery on the TT is located behind the running board on the drivers side and the wires feed to the back. Those pin type latches would be a real bugger to undo down in the the hole on a car. Also on a car the ground feeds to the left and positive feeds to the front.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup


John kuehn
Posts: 559
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Battery Box

Post by John kuehn » Sat Sep 21, 2019 5:57 pm

Looking closely at the battery box it very well could be a NOS box going by the mounting and battery cable holes. It doesn’t look like it was ever mounted just looking at the holes in the pic. The inside also doesn’t look like it ever had a battery in it. It’s to clean.
Most likely it was sat up on a shelf or outside for a while and just slowly rusted up by just sitting and moved around for the last 90+ years.
I could be wrong but it couldn’t have been used much in any case. Neat find!


BHarper
Posts: 67
Joined: Sun Jan 06, 2019 11:15 am
First Name: Bill
Last Name: Harper
Location: Keene, New Hampshire
MTFCA Number: 5414
MTFCA Life Member: YES

Re: Battery Box

Post by BHarper » Sat Sep 21, 2019 6:08 pm

Hi Mark,

This battery box was only used on the passenger car and never on the truck. It was mounted on the running board. This was used only in 1919 and the trucks did not get the starter/generator package until 1920 at the earliest. The trucks used the same battery box as used on the cars in the battery holder under the floor.
I hope that this helps. Bill


Topic author
Craig Raynor
Posts: 31
Joined: Wed Jan 09, 2019 7:28 am
First Name: Craig
Last Name: Raynor
Location: Southampton NY
Board Member Since: 2017

Re: Battery Box

Post by Craig Raynor » Sat Sep 21, 2019 7:30 pm

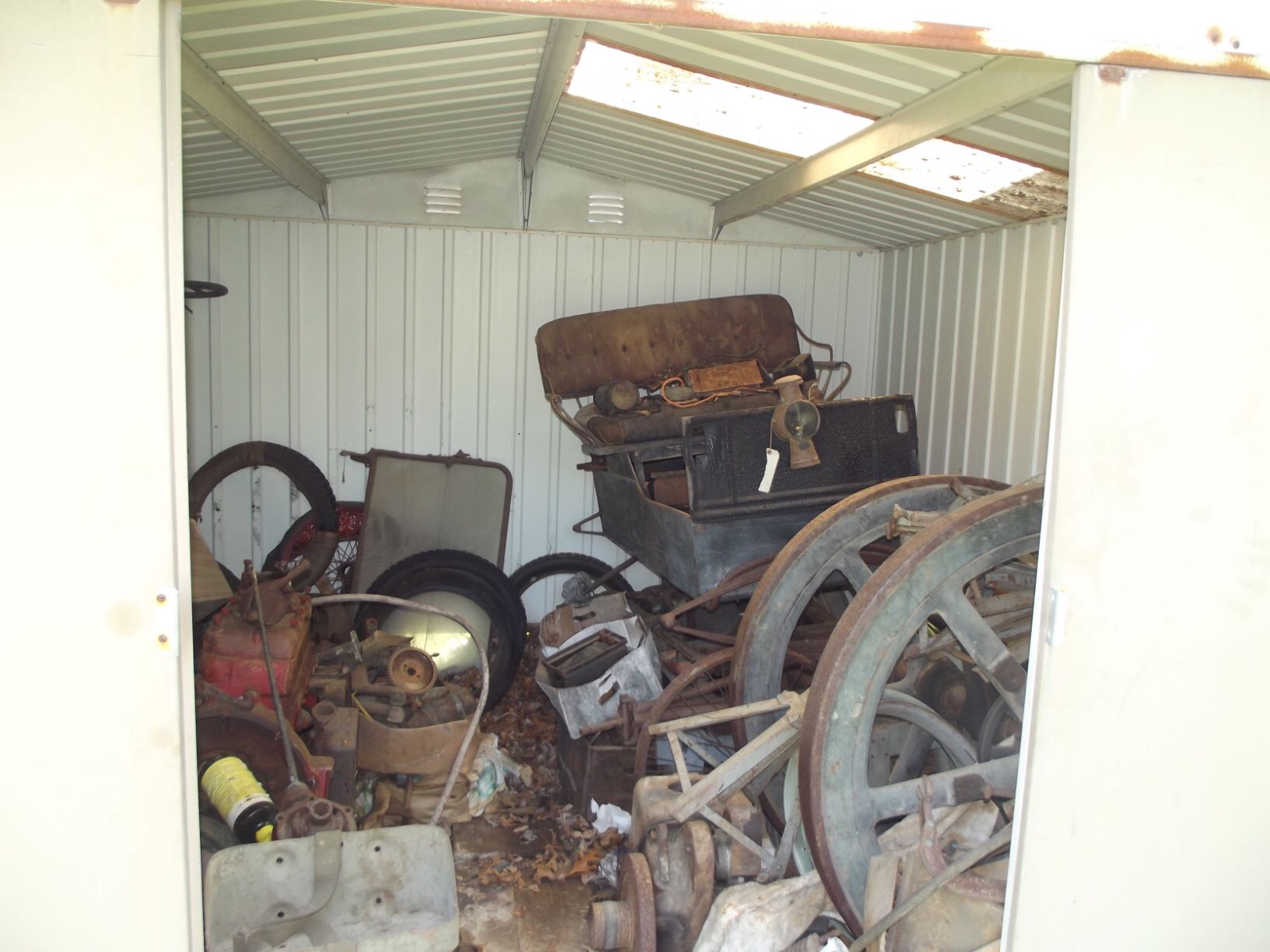

John Kushan I would agree with you on this because it has the mounting bolts inside. I picked it up at a friends house he is selling off his fathers collection.I brought a friend, George King to see a vehicle,he bought it and has started to get it ready for Hershey show field-HPOF.He has some T stuff mostly early stuff that we plan on selling at Hershey.
Attachments


wayne sheldon
Posts: 1080
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Battery Box

Post by wayne sheldon » Sat Sep 21, 2019 8:01 pm

Craig Raynor, Nice Sears in that picture! Is that the car George King bought? So you know George king well? And is this the George King that used to rebuild antique engines? I have along wanted to contact him, yet somehow never did. The name "George King" was fairly common among some of my ancestors about 150 to 200 years ago. There is a fair chance he and I could be distant cousins.
Maybe you could pass this along to him?


Shemp
Posts: 12
Joined: Mon Jan 07, 2019 11:14 pm
First Name: Randy
Last Name: Reysen
Location: Wisconsin
Board Member Since: 2018

Re: Battery Box

Post by Shemp » Sun Sep 22, 2019 10:16 am

I really like those hit and miss engines too! Great pictures! I think they would look good in my barn:)

Let me know

Randy


Shemp
Posts: 12
Joined: Mon Jan 07, 2019 11:14 pm
First Name: Randy
Last Name: Reysen
Location: Wisconsin
Board Member Since: 2018

Re: Battery Box

Post by Shemp » Sun Sep 22, 2019 10:23 am

I really like those hit and miss engines too! Great pictures! I think they would look good in my barn:)

Let me know

Randy

User avatar

Duey_C
Posts: 540
Joined: Sun Jan 06, 2019 12:28 pm
First Name: Duane
Last Name: Cooley
Location: central MN
MTFCA Number: 32488
Board Member Since: 2015

Re: Battery Box

Post by Duey_C » Sun Sep 22, 2019 11:34 pm

Wow, what a cool find Craig! 11,500 out of 825,545 or so produced that year and the mounting bolts still inside. :)
You gone after it with WD-40 or some-such and a soft scrub brush yet? There's color under the rust on the back at least! Wow.
Yes, great pictures Craig! Thank you! Tiny bit of garbage but very little scrap iron in those stacks.
Randy, how many engines you find in Craig's pics? I found 6 plus the set of green flywheels (IH, F-M?) and main shaft...
:)
