carbide generator hose

Post by Original Smith » Tue Apr 28, 2020 11:51 am

Does anyone have the correct factory data on the correct length of the hose for a '13-14 ? Earlier models are different. Next, the hose Ron Gocek supplied in his kits were apparently long enough for 1912 on back, but not for a '13-'14. It's too bad he doesn't supply the correct hose any more. The last run he had made was too big an O.D., and will not fit through the hole in the splash shield or the radiator holes! So much for research!
Top
User avatar

rnwilliams
Posts: 198
Joined: Sun Jan 06, 2019 11:31 pm
First Name: Ricky
Last Name: Williams
* REQUIRED* Type and Year of Model Ts owned: 11 Torpedo, 12 Com. Rdstr, 12 Delivery, 2-12 Tou, 15 Tou, 21 Cpe, 25 Cpe 25 TT, 26 TT, 27TT, 26 PU, 26 Tou, 2-26 4dr, 26 Del, 27 4dr
Location: Humboldt, TN
Contact:
Contact rnwilliams

Re: carbide generator hose

Post by rnwilliams » Tue Apr 28, 2020 12:26 pm

I sure need some hose that is correct too if you find something. What are others using?
Richard Williams, Humboldt, TN
President, Tennessee T's inc.
Top
User avatar

Quickm007
Posts: 1201
Joined: Mon Jan 07, 2019 10:58 am
First Name: Mario
Last Name: Brossard
* REQUIRED* Type and Year of Model Ts owned: 1911 Touring and 1914 speedster
Location: Quebec City Canada
Board Member Since: 1999

Re: carbide generator hose

Post by Quickm007 » Tue Apr 28, 2020 2:21 pm

Either me need the correct hose for a '13-14, I'm in if you find something somewhere.
Super Mario Bross ;)

1911 Touring
1914 Speedster
Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: carbide generator hose

Post by Henry K. Lee » Tue Apr 28, 2020 2:51 pm

Please provide the ID and OD dimensions.

Hank
Top

Topic author
Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: carbide generator hose

Post by Original Smith » Wed Apr 29, 2020 10:50 am

According to what I've heard, the original O.D. on that hose is 7/16" However 1/2" will work. I don't know if it is still being made, but I just found a length of air compressor hose in my garage that is probably at least 50 years old, and is 1/2" O.D. It is red, and has the exact same look that we are all after, and is 1/4" I.D. too! McMaster Carr has all kinds of red hose that fits, and is red too, but one would have to be able to go to their warehouse to look at all the samples they have to see for yourself.
Top

Adam
Posts: 1550
Joined: Sun Jan 06, 2019 11:57 am
First Name: Adam
Last Name: Doleshal
* REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
Location: Wisconsin
Board Member Since: 2000

Re: carbide generator hose

Post by Adam » Wed Apr 29, 2020 12:33 pm

I got some hose from snyders about 2 years ago that fit fine thru the hole in the apron of my fairly original’13 touring.
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: carbide generator hose

Post by RajoRacer » Wed Apr 29, 2020 1:46 pm

I received a length of red tubing from my T buddy in Canada - I'll measure it up, Larry.
Top

Topic author
Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: carbide generator hose

Post by Original Smith » Fri May 01, 2020 11:34 am

Steve: Let me know what you find out! The air compressor hose I found looks right, and fits through the radiator side panels, but I can't force it through the hole in the splash shield. Even though the hose is still flexible it won't go through. Even though most people would never know, I hate to enlarge the hole in the splash shield to accommodate that hose! What I'd like to see is for Ron Gocek to start offering the correct hose again like he did years ago. 7/16 OD, and 1/4 ID.
Top

Rich Bingham
Posts: 1942
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
* REQUIRED* Type and Year of Model Ts owned: 1913 runabout
Location: Blackfoot, Idaho

Re: carbide generator hose

Post by Rich Bingham » Fri May 01, 2020 11:45 am

I got red rubber tubing from Lang’s just a couple of years ago that measured up correctly. It had a sort of “fabric weave” light texture. My Lizzie spends summers outside, and the UV has not been kind to these hoses. It’s checking and fading some, though still viable. At one point I thought I read the original stuff was ribbed. Is that correct ? What kind of longevity was normal for the tubing “in the day” ?
I had the impression what I got was made for Bunsen burners in lab situations, so no worries about sunlight deterioration in that application.
"Get a horse !"
Top

Kbillet
Posts: 58
Joined: Fri Jan 18, 2019 10:49 am
First Name: Keith
Last Name: Billet
Location: Pennsylvania

Re: carbide generator hose

Post by Kbillet » Wed May 06, 2020 5:13 pm

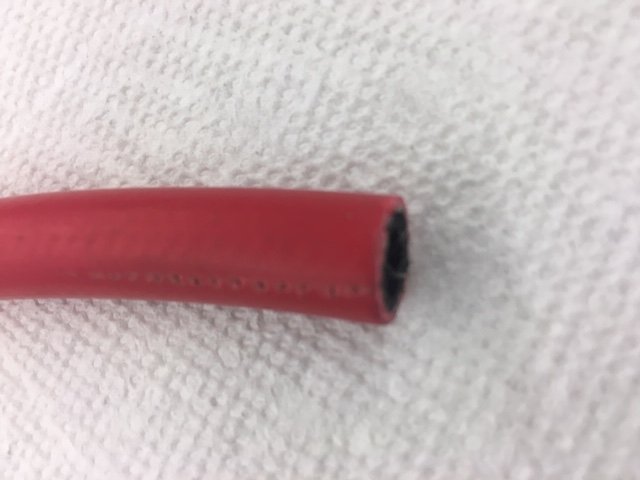

Horrible Freight sells red airline hose. 5' for $5.69. It's their item # 98944. 1/4 inch ID. and 1/2" OD. You can remove the ink lettering with acetone. The package is called Swivel Whip Hose. Used it on my Torpedo and it looks great.
Attachments
Top
User avatar

rnwilliams
Posts: 198
Joined: Sun Jan 06, 2019 11:31 pm
First Name: Ricky
Last Name: Williams
* REQUIRED* Type and Year of Model Ts owned: 11 Torpedo, 12 Com. Rdstr, 12 Delivery, 2-12 Tou, 15 Tou, 21 Cpe, 25 Cpe 25 TT, 26 TT, 27TT, 26 PU, 26 Tou, 2-26 4dr, 26 Del, 27 4dr
Location: Humboldt, TN
Contact:
Contact rnwilliams

Re: carbide generator hose

Post by rnwilliams » Wed May 06, 2020 8:33 pm

I bought some of the red hose, y'all suggested, from Harbor Freight yesterday. Looks good to me and the printed letters came right off.
Thanks
Richard Williams, Humboldt, TN
President, Tennessee T's inc.
Top
